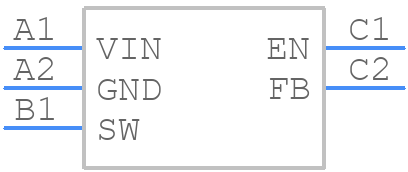

Part Symbol
-
Footprint
-

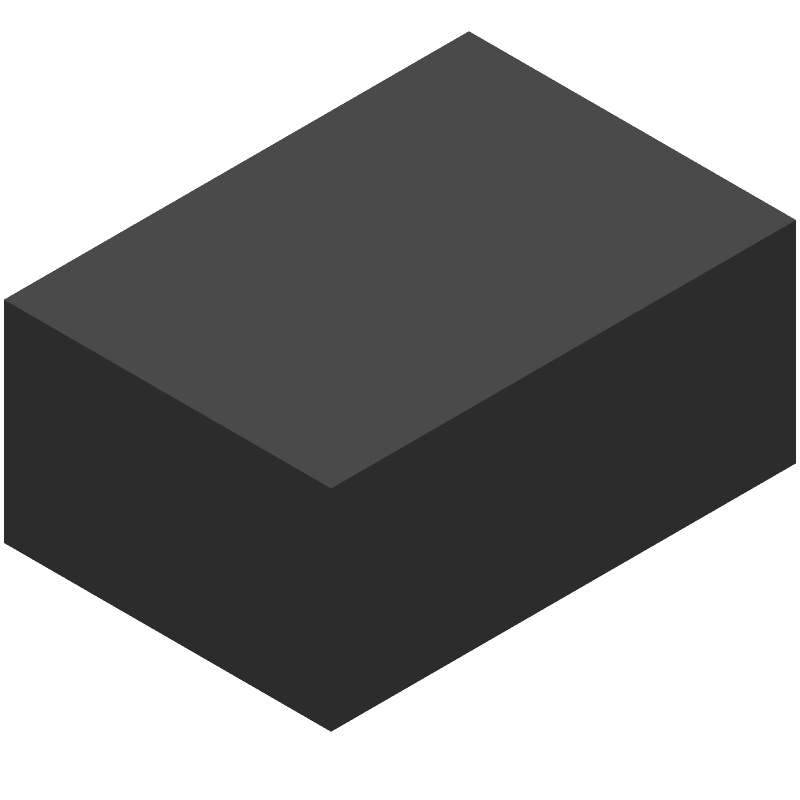

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP2108ACBZ-1.2-R7 by Analog Devices Inc
Results Overview of ADP2108ACBZ-1.2-R7 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ADP2108ACBZ-1.2-R7 Information
ADP2108ACBZ-1.2-R7 by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP2108ACBZ-1.2-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADP2108ACBZ-1.2-R7CT-ND
|
DigiKey | IC REG BUCK 1.2V 600MA 5WLCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.0625 / $3.4600 | Buy Now |
|
DISTI #
584-ADP2108ACBZ1.2R7
|
Mouser Electronics | Switching Voltage Regulators 0.6A Low Iq Step-Down DC-DC Vout=1.2v RoHS: Compliant | 2115 |
|
$1.0600 / $2.2800 | Buy Now |
|
DISTI #
V72:2272_06222300
|
Arrow Electronics | Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1.2V 0.6A 5-Pin WLCSP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1818 Container: Cut Strips | Americas - 681 |
|
$1.0900 / $1.1827 | Buy Now |
|
|
Analog Devices Inc | 0.6A Low Iq Step-Down DC-DC Vo Min Qty: 3000 Package Multiple: 3000 | 6000 |
|
$1.0625 / $3.4600 | Buy Now |
|
DISTI #
26647229
|
Verical | Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1.2V 0.6A 5-Pin WLCSP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 6000 |
|
$1.0692 | Buy Now |
|
DISTI #
35327655
|
Verical | Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1.2V 0.6A 5-Pin WLCSP T/R RoHS: Compliant Min Qty: 6 Package Multiple: 1 Date Code: 1818 | Americas - 681 |
|
$1.0900 / $1.1827 | Buy Now |
|
|
Rochester Electronics | COMPACT, 600mA, 3 MHz, Step-Down DC-To-DC Converter RoHS: Compliant Status: Active Min Qty: 1 | 2760 |
|
$0.8925 / $1.4400 | Buy Now |
|
|
LCSC | Step-down type Fixed 1.2V 600mA 2.3V5.5V WLCSP-5(1x1.4) DC-DC Converters ROHS | 3 |
|
$2.0096 / $3.4127 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 3408 |
|
RFQ |
Part Details for ADP2108ACBZ-1.2-R7
ADP2108ACBZ-1.2-R7 CAD Models
ADP2108ACBZ-1.2-R7 Part Data Attributes
|
|
ADP2108ACBZ-1.2-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP2108ACBZ-1.2-R7
Analog Devices Inc
Compact, 600 mA, 3 MHz, Step-Down DC-to-DC Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | BGA | |
| Package Description | ROHS COMPLIANT, WLCSP-5 | |
| Pin Count | 5 | |
| Manufacturer Package Code | CB-5-3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.3 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | R-PBGA-B5 | |
| JESD-609 Code | e1 | |
| Length | 1.45 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.5 A | |
| Output Voltage-Nom | 1.2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA5,3X3,17/10 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.657 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 3500 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.02 mm |
Alternate Parts for ADP2108ACBZ-1.2-R7
This table gives cross-reference parts and alternative options found for ADP2108ACBZ-1.2-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP2108ACBZ-1.2-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADP2108ACBZ-1.8-R7 | Analog Devices Inc | $1.6425 | Compact, 600 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2108ACBZ-1.2-R7 vs ADP2108ACBZ-1.8-R7 |
| ADP2108ACBZ-2.5-R7 | Analog Devices Inc | $1.6425 | Compact, 600 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2108ACBZ-1.2-R7 vs ADP2108ACBZ-2.5-R7 |
| ADP2108ACBZ-3.0-R7 | Analog Devices Inc | Check for Price | Compact, 600 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2108ACBZ-1.2-R7 vs ADP2108ACBZ-3.0-R7 |
| ADP2108ACBZ-2.5-R7 | Rochester Electronics LLC | Check for Price | 1.5 A SWITCHING REGULATOR, 3500 kHz SWITCHING FREQ-MAX, PBGA5, ROHS COMPLIANT, WLCSP-5 | ADP2108ACBZ-1.2-R7 vs ADP2108ACBZ-2.5-R7 |
| ADP2108ACBZ-1.3-R7 | Analog Devices Inc | Check for Price | Compact, 600 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2108ACBZ-1.2-R7 vs ADP2108ACBZ-1.3-R7 |
| ADP2108ACBZ-1.0-R7 | Analog Devices Inc | Check for Price | Compact, 600 mA, 3 MHz, Step-Down DC-to-DC Converter | ADP2108ACBZ-1.2-R7 vs ADP2108ACBZ-1.0-R7 |
| ADP2108ACBZ-1.82-R7 | Rochester Electronics LLC | Check for Price | 1.5A SWITCHING REGULATOR, 3500kHz SWITCHING FREQ-MAX, PBGA5, ROHS COMPLIANT, WLCSP-5 | ADP2108ACBZ-1.2-R7 vs ADP2108ACBZ-1.82-R7 |
ADP2108ACBZ-1.2-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADP2108 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
-
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor is properly sized and placed. Also, avoid using capacitors with high ESR values and ensure the input voltage is within the recommended range.
-
The ADP2108 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range (2.3V to 5.5V) for optimal performance and to prevent damage to the device.
-
The ADP2108 is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Ensure proper thermal management and consider using a heat sink if operating in high-temperature environments.
-
The output voltage of the ADP2108 can be calculated using the formula: VOUT = (VIN x (1 + R1/R2)), where R1 and R2 are the feedback resistors. Ensure the resistors are properly sized to achieve the desired output voltage.
