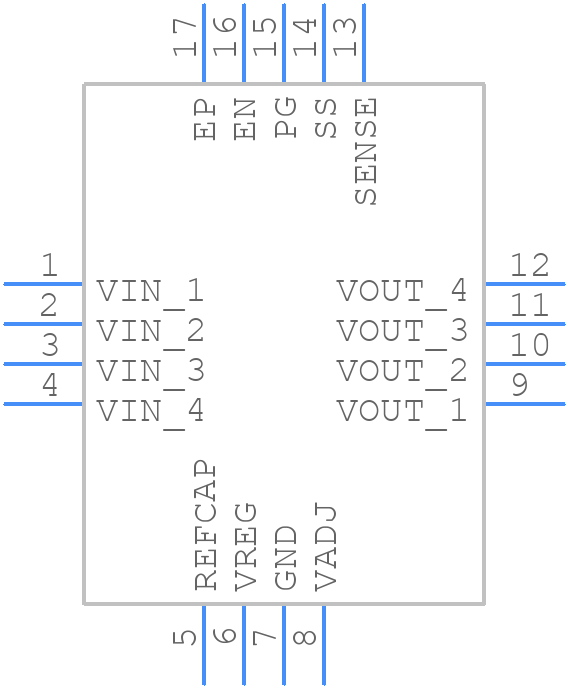

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP1764ACPZ-1.0-R7 by Analog Devices Inc
Results Overview of ADP1764ACPZ-1.0-R7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ADP1764ACPZ-1.0-R7 Information
ADP1764ACPZ-1.0-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP1764ACPZ-1.0-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AM0905
|
Newark | Ldo, Fixed, 1V, 4A, -40 To 125Deg C Rohs Compliant: Yes |Analog Devices ADP1764ACPZ-1.0-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$9.5300 / $16.5500 | Buy Now |
|
DISTI #
505-ADP1764ACPZ-1.0-R7CT-ND
|
DigiKey | IC REG LINEAR 1V 4A 16-LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
620 In Stock |
|
$8.9500 / $16.5500 | Buy Now |
|
DISTI #
584-ADP1764ACPZ1.0R7
|
Mouser Electronics | LDO Voltage Regulators COM/I&I require low noise LDO w/ 4A rati RoHS: Compliant | 1410 |
|
$9.0900 / $15.5400 | Buy Now |
|
|
Analog Devices Inc | COM/I&I require low noise LDO Min Qty: 1 Package Multiple: 1500 | 6124 |
|
$6.7900 / $16.5500 | Buy Now |
|
DISTI #
50592236
|
Verical | LDO Regulator Pos 1V 4A 16-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 6000 |
|
$8.8559 | Buy Now |
|
|
Rochester Electronics | COM/I&I require low noise LDO w/ 4A rati RoHS: Compliant Status: Active Min Qty: 1 | 638 |
|
$7.5400 / $9.4200 | Buy Now |
|
DISTI #
ADP1764ACPZ10R7
|
Richardson RFPD | CURRENT REGULATOR RoHS: Compliant Min Qty: 1500 | 0 |
|
$9.3600 | Buy Now |
|
|
LCSC | 4A Fixed 1V Positive electrode 1.98V LFCSP-16(3x3) Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 3 |
|
$16.5664 / $20.9117 | Buy Now |
Part Details for ADP1764ACPZ-1.0-R7
ADP1764ACPZ-1.0-R7 CAD Models
ADP1764ACPZ-1.0-R7 Part Data Attributes
|
|
ADP1764ACPZ-1.0-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP1764ACPZ-1.0-R7
Analog Devices Inc
4 A, Low VIN, Low Noise, CMOS Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | CP-16-48 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2017-01-26 | |
| Samacsys Manufacturer | Analog Devices | |
| Dropout Voltage1-Nom | 0.2 V | |
| Input Voltage-Max | 1.98 V | |
| Input Voltage-Min | 1.1 V | |
| JESD-30 Code | S-XQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Load Regulation-Max | 0.0117% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 4 A | |
| Output Voltage1-Max | 1.0075 V | |
| Output Voltage1-Min | 0.9925 V | |
| Output Voltage1-Nom | 1 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC16,.12SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 0.7% | |
| Width | 3 mm |
ADP1764ACPZ-1.0-R7 Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the ADP1764ACPZ-1.0-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To optimize the performance of the ADP1764ACPZ-1.0-R7 in a high-temperature environment, ensure good thermal management by providing adequate heat sinking, using a thermally conductive material, and keeping the device away from heat sources. Also, consider derating the output current and voltage according to the temperature derating curve in the datasheet.
-
The maximum input voltage that the ADP1764ACPZ-1.0-R7 can handle is 6.5V. Exceeding this voltage may damage the device. It's recommended to add input voltage protection, such as a voltage regulator or a transient voltage suppressor, to prevent overvoltage conditions.
-
To ensure the stability of the ADP1764ACPZ-1.0-R7 output voltage, use a minimum output capacitance of 10uF, and ensure that the output capacitor has a low equivalent series resistance (ESR). Also, avoid using ceramic capacitors with high ESR, as they can cause oscillations.
-
The recommended input capacitor value for the ADP1764ACPZ-1.0-R7 is 1uF to 10uF, with a voltage rating of at least 6.5V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended.
