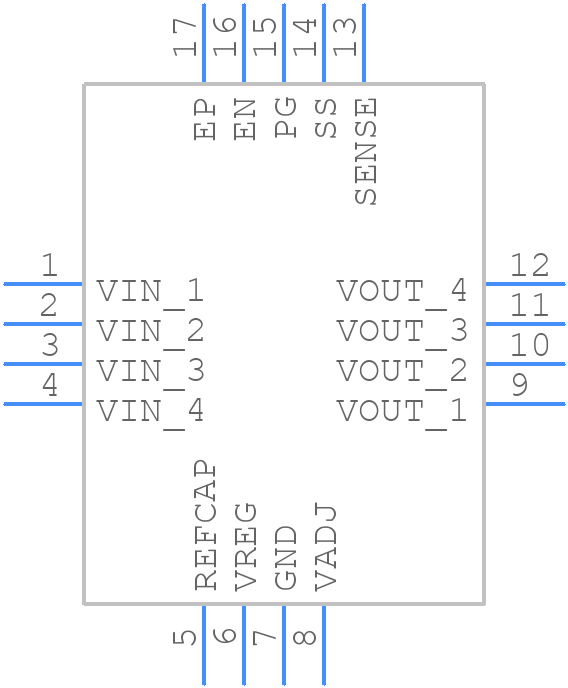

Part Symbol
-
Footprint
-

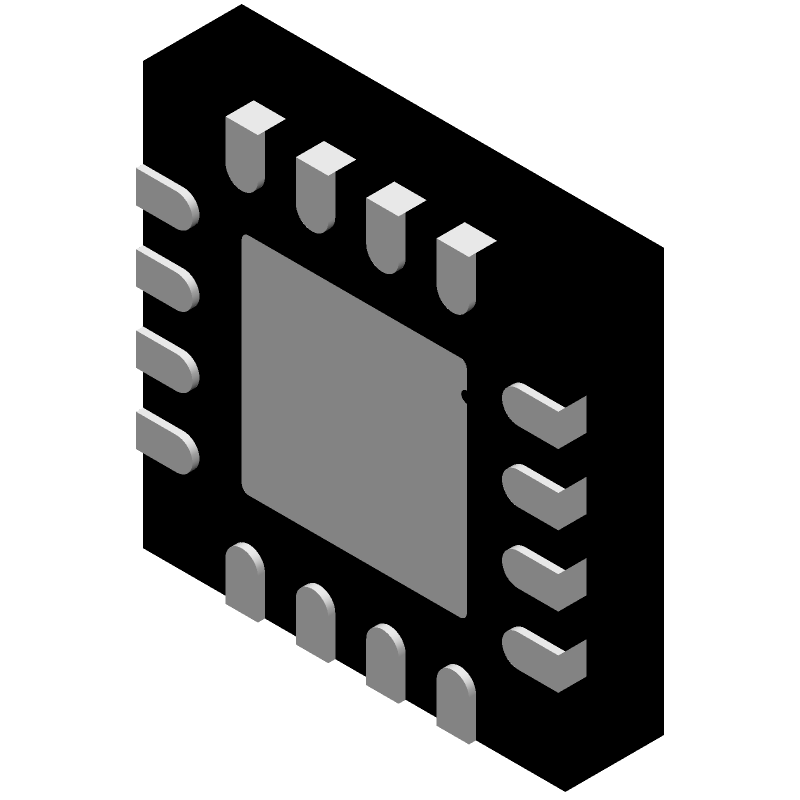

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP1762ACPZ-1.2-R7 by Analog Devices Inc
Results Overview of ADP1762ACPZ-1.2-R7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ADP1762ACPZ-1.2-R7 Information
ADP1762ACPZ-1.2-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP1762ACPZ-1.2-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06AM9659
|
Newark | Ldo, Fixed, 1.2V, 2A, -40 To 125Deg C Rohs Compliant: Yes |Analog Devices ADP1762ACPZ-1.2-R7 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$5.8600 / $11.1400 | Buy Now |
|
DISTI #
ADP1762ACPZ-1.2-R7CT-ND
|
DigiKey | IC REG LINEAR 1.2V 2A 16-LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1977 In Stock |
|
$5.6625 / $11.7100 | Buy Now |
|
DISTI #
584-ADP1762ACPZ12-R7
|
Mouser Electronics | LDO Voltage Regulators 2ALowVin, VeryLow DO low noise,high PSSR RoHS: Compliant | 1235 |
|
$5.8600 / $10.1300 | Buy Now |
|
DISTI #
V72:2272_14658410
|
Arrow Electronics | LDO Regulator Pos 1.2V 2A 16-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2252 Container: Cut Strips | Americas - 2555 |
|
$5.8090 / $6.4020 | Buy Now |
|
|
Analog Devices Inc | 2ALowVin, VeryLow DO low noise Min Qty: 1 Package Multiple: 1500 | 6396 |
|
$4.1100 / $11.7100 | Buy Now |
|
DISTI #
66290826
|
Verical | LDO Regulator Pos 1.2V 2A 16-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 6000 |
|
$5.6030 | Buy Now |
|
|
Rochester Electronics | 2A , Low Noise Linear Regulator RoHS: Compliant Status: Active Min Qty: 1 | 8361 |
|
$4.7700 / $5.9600 | Buy Now |
|
DISTI #
ADP1762ACPZ1.2R
|
Richardson RFPD | CURRENT REGULATOR RoHS: Compliant Min Qty: 1500 | 0 |
|
$5.9300 | Buy Now |
Part Details for ADP1762ACPZ-1.2-R7
ADP1762ACPZ-1.2-R7 CAD Models
ADP1762ACPZ-1.2-R7 Part Data Attributes
|
|
ADP1762ACPZ-1.2-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP1762ACPZ-1.2-R7
Analog Devices Inc
2 A, Low VIN, Low Noise, CMOS Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 16 | |
| Manufacturer Package Code | CP-16-22 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Dropout Voltage1-Max | 0.095 V | |
| Input Voltage-Max | 1.98 V | |
| Input Voltage-Min | 1.4 V | |
| JESD-30 Code | S-XQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 2 A | |
| Output Voltage1-Max | 1.218 V | |
| Output Voltage1-Min | 1.182 V | |
| Output Voltage1-Nom | 1.2 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC16,.12SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1.5% | |
| Width | 3 mm |
ADP1762ACPZ-1.2-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADP1762 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized, and the input voltage is within the recommended range. A minimum ESR of 0.1 ohms for the output capacitor is recommended.
-
The maximum ambient temperature for the ADP1762 is 125°C. However, the device can operate at a higher temperature with derating. Refer to the datasheet for the thermal derating curve.
-
Yes, the ADP1762 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is PPAP capable. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability standards.
-
The output voltage ripple of the ADP1762 can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
