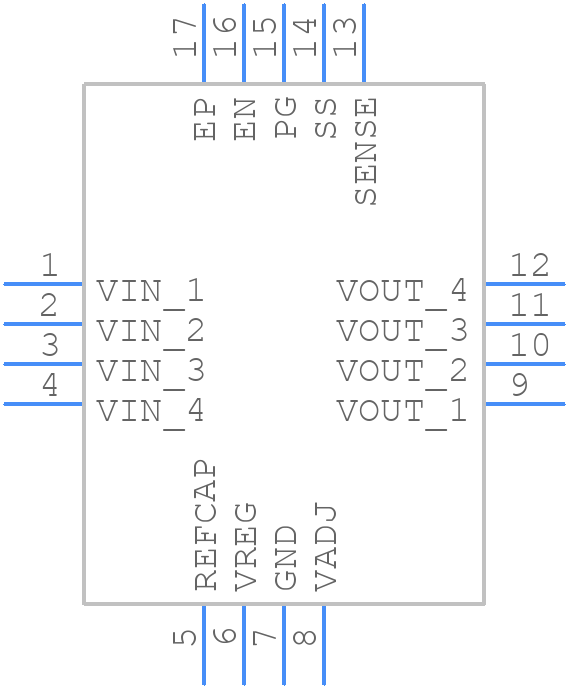

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP1761ACPZ-1.2-R7 by Analog Devices Inc
Results Overview of ADP1761ACPZ-1.2-R7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
ADP1761ACPZ-1.2-R7 Information
ADP1761ACPZ-1.2-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP1761ACPZ-1.2-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06AM9655
|
Newark | Ldo, Fixed, 1.2V, 1A, -40 To 125Deg C Rohs Compliant: Yes |Analog Devices ADP1761ACPZ-1.2-R7 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1418 |
|
$5.2500 / $9.6300 | Buy Now |
|
DISTI #
ADP1761ACPZ-1.2-R7CT-ND
|
DigiKey | IC REG LINEAR 1.2V 1A 16-LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
623 In Stock |
|
$4.9750 / $10.6300 | Buy Now |
|
DISTI #
584-ADP1761ACPZ12-R7
|
Mouser Electronics | LDO Voltage Regulators 1ALowVin, VeryLow DO low noise,high PSSR RoHS: Compliant | 874 |
|
$5.1000 / $9.1100 | Buy Now |
|
|
Analog Devices Inc | 1ALowVin, VeryLow DO low noise Min Qty: 1 Package Multiple: 1500 | 1625 |
|
$3.6400 / $10.6300 | Buy Now |
|
DISTI #
26623254
|
Verical | LDO Regulator Pos 1.2V 1A Medical 16-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 1500 |
|
$5.0063 | Buy Now |
|
|
Rochester Electronics | 1A Low Vin, Very Low Drop Out, low noise,high PSSR RoHS: Compliant Status: Active Min Qty: 1 | 66 |
|
$4.1900 / $5.2400 | Buy Now |
|
DISTI #
ADP1761ACPZ1.2R
|
Richardson RFPD | CURRENT REGULATOR RoHS: Compliant Min Qty: 1500 | 0 |
|
$5.2000 | Buy Now |
|
|
LCSC | 1A Fixed 1.2V Positive electrode 1.98V LFCSP-16(3x3) Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 11 |
|
$8.9611 / $12.4169 | Buy Now |
Part Details for ADP1761ACPZ-1.2-R7
ADP1761ACPZ-1.2-R7 CAD Models
ADP1761ACPZ-1.2-R7 Part Data Attributes
|
|
ADP1761ACPZ-1.2-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP1761ACPZ-1.2-R7
Analog Devices Inc
1 A, Low VIN, Low Noise, CMOS Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | CP-16-22 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.53 V | |
| Dropout Voltage1-Nom | 0.3 V | |
| Input Voltage Absolute-Max | 2.16 V | |
| Input Voltage-Max | 1.98 V | |
| Input Voltage-Min | 1.4 V | |
| JESD-30 Code | S-XQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Line Regulation-Max | 0.00104% | |
| Load Regulation-Max | 0.00528% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 1.218 V | |
| Output Voltage1-Min | 1.182 V | |
| Output Voltage1-Nom | 1.2 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC16,.12SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1.5% | |
| Width | 3 mm |
ADP1761ACPZ-1.2-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADP1761 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and placed close to the device. A minimum ESR of 0.1 ohms is recommended for the output capacitor. Also, avoid using ceramic capacitors with high ESL values.
-
The ADP1761 can handle input voltages up to 5.5V. However, it's recommended to operate the device within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
-
The ADP1761 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider thermal management techniques, such as heat sinks or thermal interfaces, to ensure reliable operation.
-
The output voltage of the ADP1761 can be calculated using the formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.2V).
