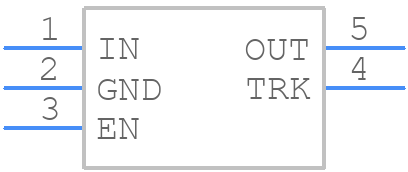

Part Symbol
-
Footprint
-

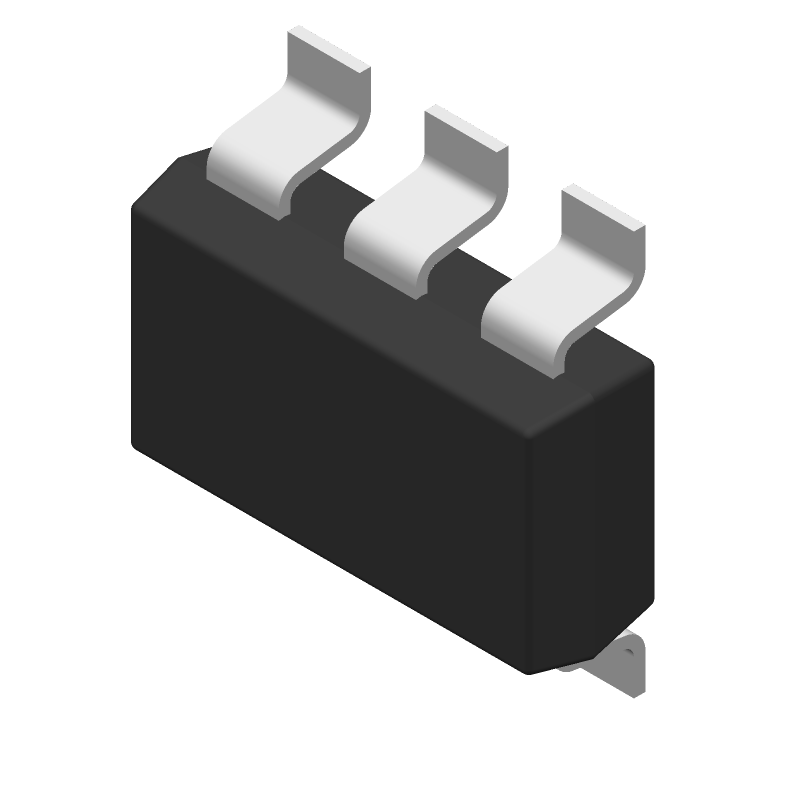

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP1714AUJZ-0.75R7 by Analog Devices Inc
Results Overview of ADP1714AUJZ-0.75R7 by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ADP1714AUJZ-0.75R7 Information
ADP1714AUJZ-0.75R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP1714AUJZ-0.75R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | 300mA, Low Dropout CMOS Linear Regulator RoHS: Compliant Status: Obsolete Min Qty: 1 | 36524 |
|
$0.5569 / $0.8982 | Buy Now |
Part Details for ADP1714AUJZ-0.75R7
ADP1714AUJZ-0.75R7 CAD Models
ADP1714AUJZ-0.75R7 Part Data Attributes
|
|
ADP1714AUJZ-0.75R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP1714AUJZ-0.75R7
Analog Devices Inc
300 mA, Low Dropout CMOS Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSOT | |
| Package Description | LEAD FREE, MO-193AB, TSOT-5 | |
| Pin Count | 5 | |
| Manufacturer Package Code | UJ-5 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.27 V | |
| Input Voltage Absolute-Max | 6 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.5 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Line Regulation-Max | 0.0078% | |
| Load Regulation-Max | 0.0087% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.3 A | |
| Output Voltage1-Max | 0.765 V | |
| Output Voltage1-Min | 0.735 V | |
| Output Voltage1-Nom | 0.75 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 2% | |
| Width | 1.6 mm |
Alternate Parts for ADP1714AUJZ-0.75R7
This table gives cross-reference parts and alternative options found for ADP1714AUJZ-0.75R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP1714AUJZ-0.75R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LP3985IM5-2.7/NOPB | Texas Instruments | $0.2784 | 150-mA, low-dropout voltage regulator with bypass & enable 5-SOT-23 -40 to 125 | ADP1714AUJZ-0.75R7 vs LP3985IM5-2.7/NOPB |
| TLV70525PYFPT | Texas Instruments | Check for Price | 200-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable & active output discharge 4-DSBGA -40 to 85 | ADP1714AUJZ-0.75R7 vs TLV70525PYFPT |
| ILC7071AIM5285X | Fairchild Semiconductor Corporation | Check for Price | Fixed Positive LDO Regulator, 2.85V, 0.32V Dropout, CMOS, PDSO5, SOT-23, 5 PIN | ADP1714AUJZ-0.75R7 vs ILC7071AIM5285X |
| LP2982AIBP-2.8 | Texas Instruments | Check for Price | 2.8V FIXED POSITIVE LDO REGULATOR, 0.225V DROPOUT, PBGA5, MICRO SMD-5 | ADP1714AUJZ-0.75R7 vs LP2982AIBP-2.8 |
| LP2981-29DBVT | Texas Instruments | Check for Price | 100-mA Ultra-Low Dropout Regulator With Shutdown, 1.25% Tolerance 5-SOT-23 -40 to 125 | ADP1714AUJZ-0.75R7 vs LP2981-29DBVT |
| SPX8863M5-2.5 | Sipex Corporation | Check for Price | Fixed Positive LDO Regulator, 2.5V, 0.26V Dropout, BIPolar, PDSO5, SOT-23, 5 PIN | ADP1714AUJZ-0.75R7 vs SPX8863M5-2.5 |
| LP3985ITL-3.1/NOPB | Texas Instruments | Check for Price | 150-mA, low-dropout voltage regulator with bypass & enable 5-DSBGA -40 to 125 | ADP1714AUJZ-0.75R7 vs LP3985ITL-3.1/NOPB |
| LP2982AIM5-2.5/NOPB | Texas Instruments | Check for Price | IC VREG 2.5 V FIXED POSITIVE LDO REGULATOR, 0.225 V DROPOUT, PDSO5, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator | ADP1714AUJZ-0.75R7 vs LP2982AIM5-2.5/NOPB |
| LP2980AIM5X-3.6/NOPB | Texas Instruments | Check for Price | 3.6V FIXED POSITIVE LDO REGULATOR, 0.225V DROPOUT, PDSO5, SOT-23, 5 PIN | ADP1714AUJZ-0.75R7 vs LP2980AIM5X-3.6/NOPB |
| LP2980AIM5-3.6/NOPB | Texas Instruments | Check for Price | 3.6V FIXED POSITIVE LDO REGULATOR, 0.225V DROPOUT, PDSO5, SOT-23, 5 PIN | ADP1714AUJZ-0.75R7 vs LP2980AIM5-3.6/NOPB |
