ADP1710AUJZ-0.8-R7 by:

150 mA, Low Dropout, CMOS Linear Regulator

Part Details for ADP1710AUJZ-0.8-R7 by Analog Devices Inc

Results Overview of ADP1710AUJZ-0.8-R7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

ADP1710AUJZ-0.8-R7 Information

ADP1710AUJZ-0.8-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for ADP1710AUJZ-0.8-R7

Part # Distributor Description Stock Price Buy
DISTI # 505-ADP1710AUJZ-0.8-R7CT-ND
DigiKey IC REG LIN 0.8V 150MA TSOT-23-5 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $2.4000
  • 3,000 $0.6487
  • 6,000 $0.6375
$0.6375 / $2.4000 Buy Now
DISTI # 584-ADP1710AUJZ0.8R7
Mouser Electronics LDO Voltage Regulators 150mA Low Dropout linear regulators RoHS: Compliant 0
  • 3,000 $0.6660
  • 6,000 $0.6620
$0.6620 / $0.6660 Order Now
Analog Devices Inc 150mA Low Dropout linear regul Min Qty: 3000 Package Multiple: 3000 30000
  • 1 $2.4000
  • 1,000 $0.4900
  • 3,000 $0.6487
  • 6,000 $0.6375
$0.4900 / $2.4000 Buy Now
DISTI # 26635085
Verical LDO Regulator Pos 0.8V 0.15A 5-Pin TSOT T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Americas - 30000
  • 3,000 $0.6308
$0.6308 Buy Now
Rochester Electronics ADP1710 - 150mA, Low DROPOUT, CMOS Linear Regulator RoHS: Compliant Status: Active Min Qty: 1 57448
  • 100 $0.8659
  • 500 $0.7793
  • 1,000 $0.7187
  • 10,000 $0.6408
  • 100,000 $0.5369
$0.5369 / $0.8659 Buy Now

Part Details for ADP1710AUJZ-0.8-R7

ADP1710AUJZ-0.8-R7 CAD Models

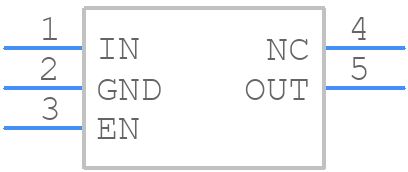

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADP1710AUJZ-0.8-R7 Part Data Attributes

Parametric Data
ADP1710AUJZ-0.8-R7 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADP1710AUJZ-0.8-R7 Analog Devices Inc 150 mA, Low Dropout, CMOS Linear Regulator
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code TSOT
Package Description LEAD FREE, MO-193AB, TSOT-5
Pin Count 5
Manufacturer Package Code UJ-5
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Adjustability FIXED
Dropout Voltage1-Max 0.3 V
Dropout Voltage1-Nom 0.18 V
Input Voltage Absolute-Max 6 V
Input Voltage-Max 5.5 V
Input Voltage-Min 2.5 V
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2.9 mm
Line Regulation-Max 0.00336%
Load Regulation-Max 0.0045%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.15 A
Output Voltage1-Max 0.816 V
Output Voltage1-Min 0.784 V
Output Voltage1-Nom 0.8 V
Package Body Material PLASTIC/EPOXY
Package Code VSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1 mm
Surface Mount YES
Technology CMOS
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 2%
Width 1.6 mm
