Part Details for ADP151ACBZ-1.8-R7 by Analog Devices Inc
Results Overview of ADP151ACBZ-1.8-R7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
ADP151ACBZ-1.8-R7 Information
ADP151ACBZ-1.8-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP151ACBZ-1.8-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8682
|
Newark | Ldo, Fixed, 1.8V, 0.2A, Wlcsp, 125Deg C, Output Type:Fixed, Input Voltage Min:2.2V, Input Voltage Max:5.5V, No. Of Outputs:-, Output Voltage Min:-, Output Voltage Max:-, Polarity:-, Ic Mounting:Surface Mount, Ic Case/Package:Wlcsp Rohs Compliant: Yes |Analog Devices ADP151ACBZ-1.8-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 347 |
|
$0.4780 / $0.9760 | Buy Now |
|
DISTI #
505-ADP151ACBZ-1.8-R7CT-ND
|
DigiKey | IC REG LINEAR 1.8V 200MA 4-WLCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
22919 In Stock |
|
$0.5250 / $2.1000 | Buy Now |
|
DISTI #
584-ADP151ACBZ-1.8R7
|
Mouser Electronics | Linear Voltage Regulators 200mA LDO 1.8Vout RoHS: Compliant | 12068 |
|
$0.5460 / $1.2200 | Buy Now |
|
DISTI #
V72:2272_06221374
|
Arrow Electronics | LDO Regulator Pos 1.8V 0.2A 4-Pin WLCSP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2208 Container: Cut Strips | Americas - 177 |
|
$0.5386 / $0.8042 | Buy Now |
|
|
Analog Devices Inc | 200mA LDO 1.8Vout Min Qty: 1 Package Multiple: 3000 | 4584 |
|
$0.5250 / $2.1000 | Buy Now |
|
DISTI #
61254561
|
Verical | LDO Regulator Pos 1.8V 0.2A 4-Pin WLCSP T/R RoHS: Compliant Min Qty: 11 Package Multiple: 1 Date Code: 2208 | Americas - 177 |
|
$0.5386 / $0.6846 | Buy Now |
|
|
Rochester Electronics | UltraLow Noise, 200mA, CMOS Linear Regulator RoHS: Compliant Status: Active Min Qty: 1 | 166041 |
|
$0.4421 / $0.7131 | Buy Now |
|
|
Vyrian | Regulators | 27753 |
|
RFQ |
Part Details for ADP151ACBZ-1.8-R7

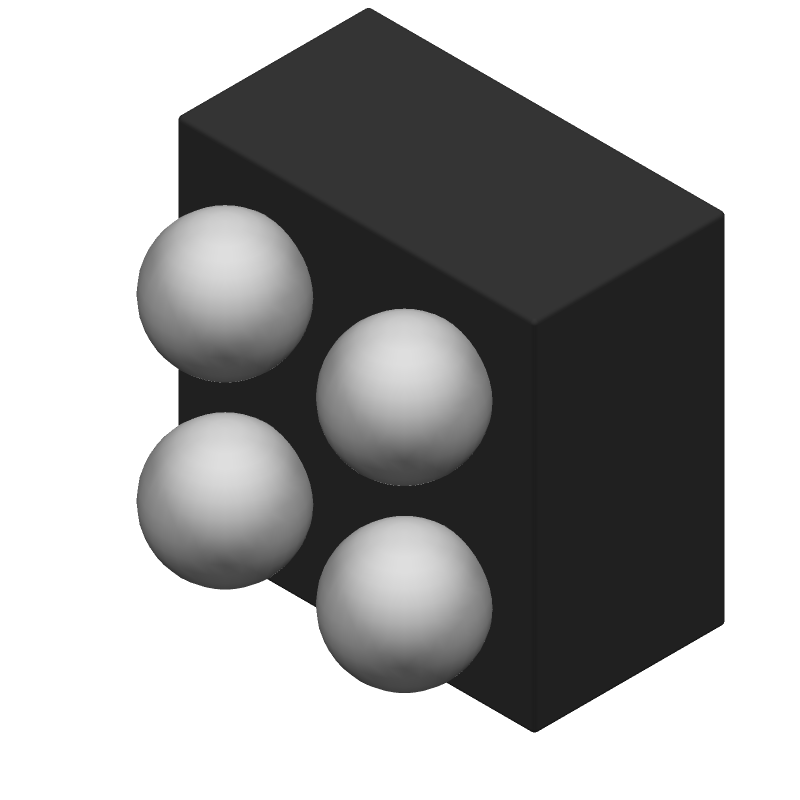

ADP151ACBZ-1.8-R7 CAD Models
ADP151ACBZ-1.8-R7 Part Data Attributes
|
|
ADP151ACBZ-1.8-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP151ACBZ-1.8-R7
Analog Devices Inc
Ultralow Noise, 200 mA, CMOS Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | BGA | |
| Package Description | WLCSP-4 | |
| Pin Count | 4 | |
| Manufacturer Package Code | CB-4-3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.2 V | |
| Dropout Voltage1-Nom | 0.135 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.2 V | |
| JESD-30 Code | S-PBGA-B4 | |
| JESD-609 Code | e1 | |
| Length | 0.76 mm | |
| Line Regulation-Max | 0.003% | |
| Load Regulation-Max | 0.032% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 1.827 V | |
| Output Voltage1-Min | 1.764 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA4,2X2,16 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.66 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2.5% | |
| Width | 0.76 mm |
