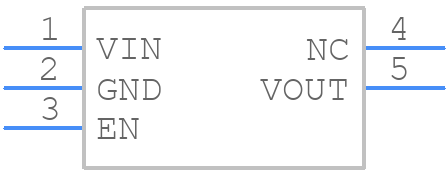

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP150AUJZ-3.0-R7 by Analog Devices Inc
Results Overview of ADP150AUJZ-3.0-R7 by Analog Devices Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Energy and Power Systems
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
ADP150AUJZ-3.0-R7 Information
ADP150AUJZ-3.0-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP150AUJZ-3.0-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5371
|
Newark | Ldo, Fixed, 3V, 0.15A, Tsot-5, 125Deg C, Output Type:Fixed, Input Voltage Min:2.2V, Input Voltage Max:5.5V, No. Of Outputs:-, Output Voltage Min:-, Output Voltage Max:-, Polarity:-, Ic Mounting:Surface Mount, Ic Case/Package:Tsot Rohs Compliant: Yes |Analog Devices ADP150AUJZ-3.0-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4044 |
|
$0.5140 | Buy Now |
|
DISTI #
505-ADP150AUJZ-3.0-R7CT-ND
|
DigiKey | IC REG LINEAR 3V 150MA TSOT-23-5 Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
13279 In Stock |
|
$0.5375 / $2.1400 | Buy Now |
|
DISTI #
584-ADP150AUJZ-3.0R7
|
Mouser Electronics | Linear Voltage Regulators 150mA Ultra-Low Noise LDO 3.0 Vout RoHS: Compliant | 29382 |
|
$0.5370 / $1.5200 | Buy Now |
|
|
Analog Devices Inc | 150mA Ultra-Low Noise LDO 3.0 Min Qty: 3000 Package Multiple: 3000 | 9000 |
|
$0.5375 / $2.1400 | Buy Now |
|
DISTI #
26618255
|
Verical | LDO Regulator Pos 3V 0.15A 5-Pin TSOT T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 3000 |
|
$0.5409 | Buy Now |
|
|
Bristol Electronics | Min Qty: 3 | 6000 |
|
$0.4875 / $1.8750 | Buy Now |
|
|
Bristol Electronics | 2377 |
|
RFQ | ||
|
|
Quest Components | FIXED POSITIVE LDO REGULATOR, 3V, 0.16V DROPOUT, CMOS, PDSO5 | 4800 |
|
$0.5500 / $2.5000 | Buy Now |
|
|
Quest Components | FIXED POSITIVE LDO REGULATOR, 3V, 0.16V DROPOUT, CMOS, PDSO5 | 32 |
|
$1.5000 / $2.5000 | Buy Now |
|
|
Rochester Electronics | 150mA Ultra-Low Noise LDO RoHS: Compliant Status: Active Min Qty: 1 | 2603 |
|
$0.4515 / $0.7282 | Buy Now |
Part Details for ADP150AUJZ-3.0-R7
ADP150AUJZ-3.0-R7 CAD Models
ADP150AUJZ-3.0-R7 Part Data Attributes
|
|
ADP150AUJZ-3.0-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP150AUJZ-3.0-R7
Analog Devices Inc
Ultralow Noise, 150 mA CMOS Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSOT | |
| Package Description | ROHS COMPLIANT, MO-193AB, TSOT-5 | |
| Pin Count | 5 | |
| Manufacturer Package Code | UJ-5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.16 V | |
| Dropout Voltage1-Nom | 0.105 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.2 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Line Regulation-Max | 0.00315% | |
| Load Regulation-Max | 0.03375% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 3.045 V | |
| Output Voltage1-Min | 2.925 V | |
| Output Voltage1-Nom | 3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2.5% | |
| Width | 1.6 mm |
Alternate Parts for ADP150AUJZ-3.0-R7
This table gives cross-reference parts and alternative options found for ADP150AUJZ-3.0-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP150AUJZ-3.0-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LP3985IM5-2.7/NOPB | Texas Instruments | $0.2784 | 150-mA, low-dropout voltage regulator with bypass & enable 5-SOT-23 -40 to 125 | ADP150AUJZ-3.0-R7 vs LP3985IM5-2.7/NOPB |
| TLV70525PYFPT | Texas Instruments | Check for Price | 200-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable & active output discharge 4-DSBGA -40 to 85 | ADP150AUJZ-3.0-R7 vs TLV70525PYFPT |
| ILC7071AIM5285X | Fairchild Semiconductor Corporation | Check for Price | Fixed Positive LDO Regulator, 2.85V, 0.32V Dropout, CMOS, PDSO5, SOT-23, 5 PIN | ADP150AUJZ-3.0-R7 vs ILC7071AIM5285X |
| LP2982AIBP-2.8 | Texas Instruments | Check for Price | 2.8V FIXED POSITIVE LDO REGULATOR, 0.225V DROPOUT, PBGA5, MICRO SMD-5 | ADP150AUJZ-3.0-R7 vs LP2982AIBP-2.8 |
| LP2981-29DBVT | Texas Instruments | Check for Price | 100-mA Ultra-Low Dropout Regulator With Shutdown, 1.25% Tolerance 5-SOT-23 -40 to 125 | ADP150AUJZ-3.0-R7 vs LP2981-29DBVT |
| SPX8863M5-2.5 | Sipex Corporation | Check for Price | Fixed Positive LDO Regulator, 2.5V, 0.26V Dropout, BIPolar, PDSO5, SOT-23, 5 PIN | ADP150AUJZ-3.0-R7 vs SPX8863M5-2.5 |
| LP3985ITL-3.1/NOPB | Texas Instruments | Check for Price | 150-mA, low-dropout voltage regulator with bypass & enable 5-DSBGA -40 to 125 | ADP150AUJZ-3.0-R7 vs LP3985ITL-3.1/NOPB |
| LP2982AIM5-2.5/NOPB | Texas Instruments | Check for Price | IC VREG 2.5 V FIXED POSITIVE LDO REGULATOR, 0.225 V DROPOUT, PDSO5, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator | ADP150AUJZ-3.0-R7 vs LP2982AIM5-2.5/NOPB |
| LP2980AIM5X-3.6/NOPB | Texas Instruments | Check for Price | 3.6V FIXED POSITIVE LDO REGULATOR, 0.225V DROPOUT, PDSO5, SOT-23, 5 PIN | ADP150AUJZ-3.0-R7 vs LP2980AIM5X-3.6/NOPB |
| LP2980AIM5-3.6/NOPB | Texas Instruments | Check for Price | 3.6V FIXED POSITIVE LDO REGULATOR, 0.225V DROPOUT, PDSO5, SOT-23, 5 PIN | ADP150AUJZ-3.0-R7 vs LP2980AIM5-3.6/NOPB |
