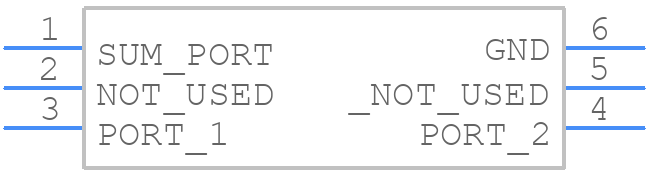

Part Symbol
-

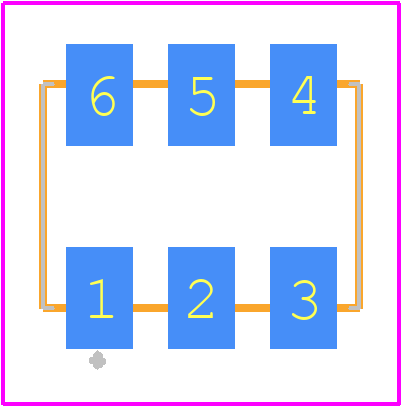

Footprint
-

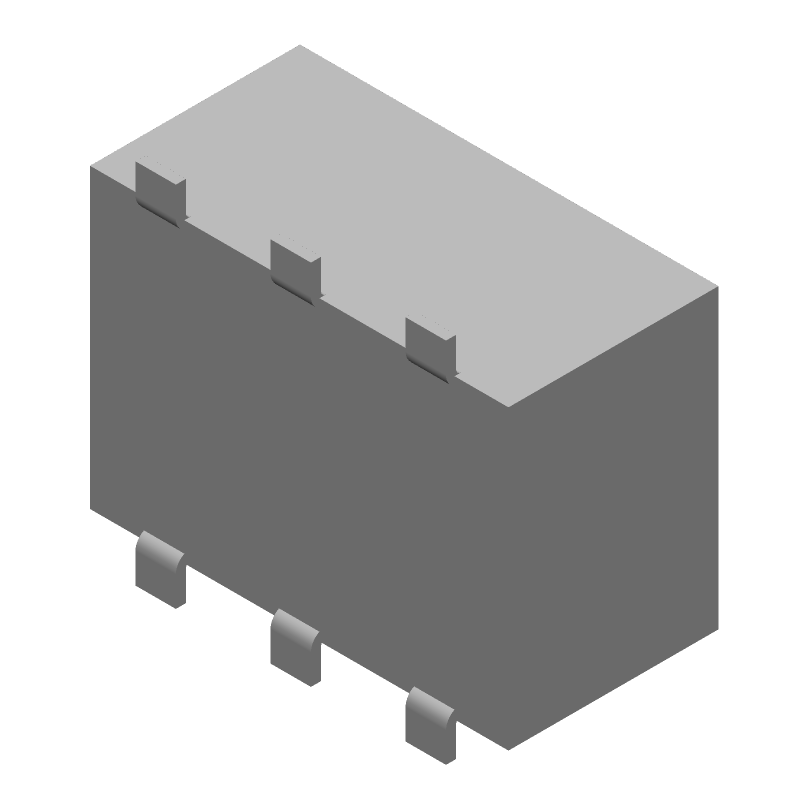

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADP-2-1W+ by Mini-Circuits
Results Overview of ADP-2-1W+ by Mini-Circuits
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADP-2-1W+ Information
ADP-2-1W+ by Mini-Circuits is an RF/Microwave Splitter/Combiner.
RF/Microwave Splitter/Combiners are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for ADP-2-1W+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-ADP-2-1W+CT-ND
|
DigiKey | RF PWR DVDR 1MHZ-650MHZ 6SMD Min Qty: 1 Lead time: 2 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1810 In Stock |
|
$7.4160 / $11.5500 | Buy Now |
|
DISTI #
139-ADP-2-1W
|
Mouser Electronics | Signal Conditioning PWR SPLTR CMBD / SURF MT/ RoHS RoHS: Compliant | 894 |
|
$7.4200 / $11.0000 | Buy Now |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 35 |
|
RFQ | |
|
|
LCSC | 1MHz650MHz 0.5dB SMD-6P7.9x5.6mm RF Power Splitters / Combiners ROHS | 4 |
|
$5.2911 / $7.5786 | Buy Now |
|
|
Win Source Electronics | RF PWR DVDR 1MHZ-650MHZ 6SMD | 6098 |
|
$6.3444 / $9.5165 | Buy Now |
Part Details for ADP-2-1W+
ADP-2-1W+ CAD Models
ADP-2-1W+ Part Data Attributes
|
|
ADP-2-1W+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
ADP-2-1W+
Mini-Circuits
Combiner, 1MHz Min, 650MHz Max, 1dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT, CD636, 6 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MINI-CIRCUITS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mini-Circuits | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 33.01 dBm | |
| Insertion Loss-Max | 1 dB | |
| Isolation-Min | 20 dB | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Frequency-Max | 650 MHz | |
| Operating Frequency-Min | 1 MHz | |
| RF/Microwave Device Type | SPLITTER AND COMBINER | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier |
