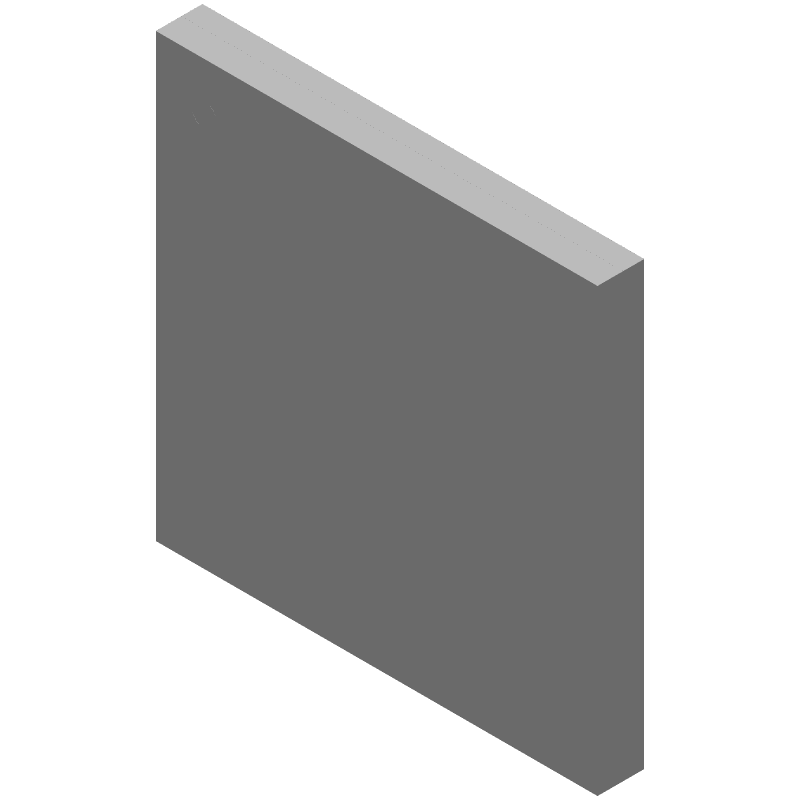

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADMV8818SCCZ-EP by Analog Devices Inc
Results Overview of ADMV8818SCCZ-EP by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADMV8818SCCZ-EP Information
ADMV8818SCCZ-EP by Analog Devices Inc is a General Purpose Passive Filter.
General Purpose Passive Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for ADMV8818SCCZ-EP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8500
|
Newark | High-Pass/Low-Pass Filter, 18Ghz, Lga-56, Frequency Min:2Ghz, Frequency Max:18Ghz, Bandwidth:4Ghz, Supply Voltage Min:-2.6V, Supply Voltage Max:3.4V, Rf Ic Case Style:Lga-Ep, No. Of Pins:56Pins, Operating Temperature Min:-55°C Rohs Compliant: Yes |Analog Devices ADMV8818SCCZ-EP RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2 |
|
$604.1500 / $622.5900 | Buy Now |
|
DISTI #
505-ADMV8818SCCZ-EP-ND
|
DigiKey | IC RF SWITCH 4XSP5T 18GHZ 56LGA Min Qty: 1 Lead time: 10 Weeks Container: Tray |
2 In Stock |
|
$588.5000 | Buy Now |
|
DISTI #
584-ADMV8818SCCZ-EP
|
Mouser Electronics | RF Amplifier 2 to 18 GHz Multi Octave Switched Filte RoHS: Compliant | 194 |
|
$782.0900 | Buy Now |
|
|
Analog Devices Inc | 2 to 18 GHz Multi Octave Switc Package Multiple: 1 | 1304 |
|
$470.8000 / $588.5000 | Buy Now |
|
DISTI #
61733850
|
Verical | Active Filter Single Low Pass/High Pass 18GHz 56-Pin LGA EP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 | Americas - 538 |
|
$587.1500 | Buy Now |
|
DISTI #
ADMV8818SCCZ-EP
|
Richardson RFPD | TUNABLE BAND PASS FILTER RoHS: Compliant Min Qty: 1 | 0 |
|
$600.2700 / $640.2800 | Buy Now |
|
|
Vyrian | Filters | 32 |
|
RFQ |
Part Details for ADMV8818SCCZ-EP
ADMV8818SCCZ-EP CAD Models
ADMV8818SCCZ-EP Part Data Attributes
|
|
ADMV8818SCCZ-EP
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADMV8818SCCZ-EP
Analog Devices Inc
ADMV8818SCCZ-EP
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 56 | |
| Manufacturer Package Code | CC-56-3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.20 | |
| Samacsys Manufacturer | Analog Devices | |
| Center or Cutoff Frequency (fo/fc) | 10000 MHz | |
| Filter Type | HIGH PASS FILTER | |
| Height | 1.03 mm | |
| Input Impedance | 50 OHM | |
| Length | 9.15 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Sections-Max | 1 | |
| Number of Sections-Min | 1 | |
| Number of Terminals | 56 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Impedance | 50 OHM Ω | |
| Width | 9.15 mm |
