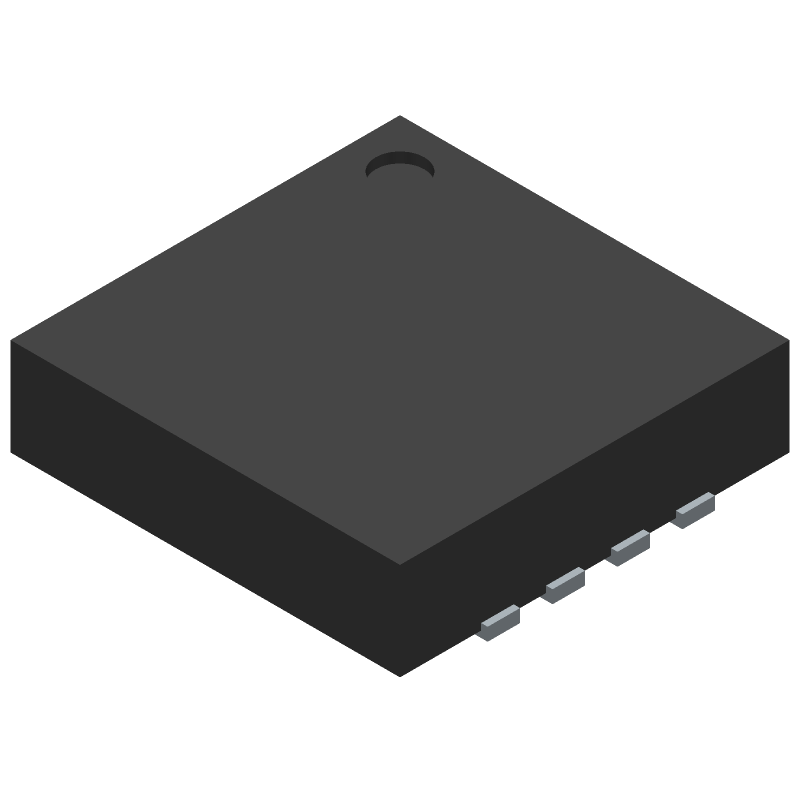

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM7154ACPZ-2.5-R7 by Analog Devices Inc
Results Overview of ADM7154ACPZ-2.5-R7 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ADM7154ACPZ-2.5-R7 Information
ADM7154ACPZ-2.5-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADM7154ACPZ-2.5-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADM7154ACPZ-2.5-R7CT-ND
|
DigiKey | IC REG LIN 2.5V 600MA 8-LFCSP-WD Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
660 In Stock |
|
$3.6250 / $8.4100 | Buy Now |
|
DISTI #
584-ADM7154ACPZ2.5R7
|
Mouser Electronics | LDO Voltage Regulators 600mA Ultra-Low-Noise High-PSRR LDO RoHS: Compliant | 444 |
|
$3.7800 / $6.8400 | Buy Now |
|
|
Analog Devices Inc | 600mA Ultra-Low-Noise High-PSR Min Qty: 1500 Package Multiple: 1500 | 3000 |
|
$2.7500 / $8.4100 | Buy Now |
|
DISTI #
26647159
|
Verical | LDO Regulator Pos 2.5V 0.6A 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 1500 |
|
$3.5869 | Buy Now |
|
|
Rochester Electronics | 600 mA, Ultralow Noise, High PSRR, RF Linear Regulator RoHS: Compliant Status: Active Min Qty: 1 | 1280 |
|
$3.0600 / $3.8200 | Buy Now |
Part Details for ADM7154ACPZ-2.5-R7
ADM7154ACPZ-2.5-R7 CAD Models
ADM7154ACPZ-2.5-R7 Part Data Attributes
|
|
ADM7154ACPZ-2.5-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM7154ACPZ-2.5-R7
Analog Devices Inc
600 mA, Ultralow Noise, High PSRR, RF Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CP-8-21 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.21 V | |
| Dropout Voltage1-Nom | 0.12 V | |
| Input Voltage Absolute-Max | 7 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 3 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Line Regulation-Max | 0.00274% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.6 A | |
| Output Voltage1-Max | 2.55 V | |
| Output Voltage1-Min | 2.45 V | |
| Output Voltage1-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Voltage Tolerance-Max | 2% | |
| Width | 3 mm |
Alternate Parts for ADM7154ACPZ-2.5-R7
This table gives cross-reference parts and alternative options found for ADM7154ACPZ-2.5-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM7154ACPZ-2.5-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| XC6504A2519R-G | Torex Semiconductor LTD | $0.2520 | Fixed Positive Standard Regulator, 2.5VCMOS, PDSO4, USPQ-4 | ADM7154ACPZ-2.5-R7 vs XC6504A2519R-G |
| ADM7154ARDZ-2.5-R7 | Analog Devices Inc | $5.0197 | 600 mA, Ultralow Noise, High PSRR, RF Linear Regulator | ADM7154ACPZ-2.5-R7 vs ADM7154ARDZ-2.5-R7 |
| ADP7156ACPZ-2.5-R7 | Analog Devices Inc | Check for Price | 1.2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | ADM7154ACPZ-2.5-R7 vs ADP7156ACPZ-2.5-R7 |
| ADP7156ARDZ-2.5-R7 | Analog Devices Inc | Check for Price | 1.2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | ADM7154ACPZ-2.5-R7 vs ADP7156ARDZ-2.5-R7 |
| MM3142FR | Mitsumi Electric Co Ltd | Check for Price | Fixed Positive Standard Regulator, 2.5VCMOS, PDSO6, PLP-6 | ADM7154ACPZ-2.5-R7 vs MM3142FR |
| MM3142FN | Mitsumi Electric Co Ltd | Check for Price | Fixed Positive Standard Regulator, 2.5VCMOS, PDSO5, SOT-25, 5 PIN | ADM7154ACPZ-2.5-R7 vs MM3142FN |
| XC6504A2419R-G | Torex Semiconductor LTD | Check for Price | Fixed Positive Standard Regulator, 2.4VCMOS, PDSO4, USPQ-4 | ADM7154ACPZ-2.5-R7 vs XC6504A2419R-G |
| ADP7158ACPZ-2.5-R7 | Analog Devices Inc | Check for Price | 2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | ADM7154ACPZ-2.5-R7 vs ADP7158ACPZ-2.5-R7 |
| ADP7158ARDZ-2.5-R7 | Analog Devices Inc | Check for Price | 2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | ADM7154ACPZ-2.5-R7 vs ADP7158ARDZ-2.5-R7 |
ADM7154ACPZ-2.5-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADM7154ACPZ-2.5-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the device away from high-current carrying traces.
-
To ensure stability, make sure to follow the recommended capacitor values and types, and keep the input and output capacitors close to the device. Also, ensure that the input voltage is within the recommended range and that the output is not overloaded. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
-
The ADM7154ACPZ-2.5-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the thermal management section of the datasheet and to perform thermal analysis to ensure the device operates within its specified temperature range.
-
The ADM7154ACPZ-2.5-R7 is a commercial-grade device, but Analog Devices Inc offers a radiation-hardened version, the ADM7154RH-2.5-R7, which is designed for high-reliability and aerospace applications. It's recommended to consult with Analog Devices Inc or a qualified distributor to determine the suitability of the device for a specific high-reliability or aerospace application.
-
To troubleshoot issues with the ADM7154ACPZ-2.5-R7, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is operated within its specified temperature range. Use an oscilloscope to measure the output voltage and check for any signs of oscillation or noise. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices Inc support if the issue persists.
