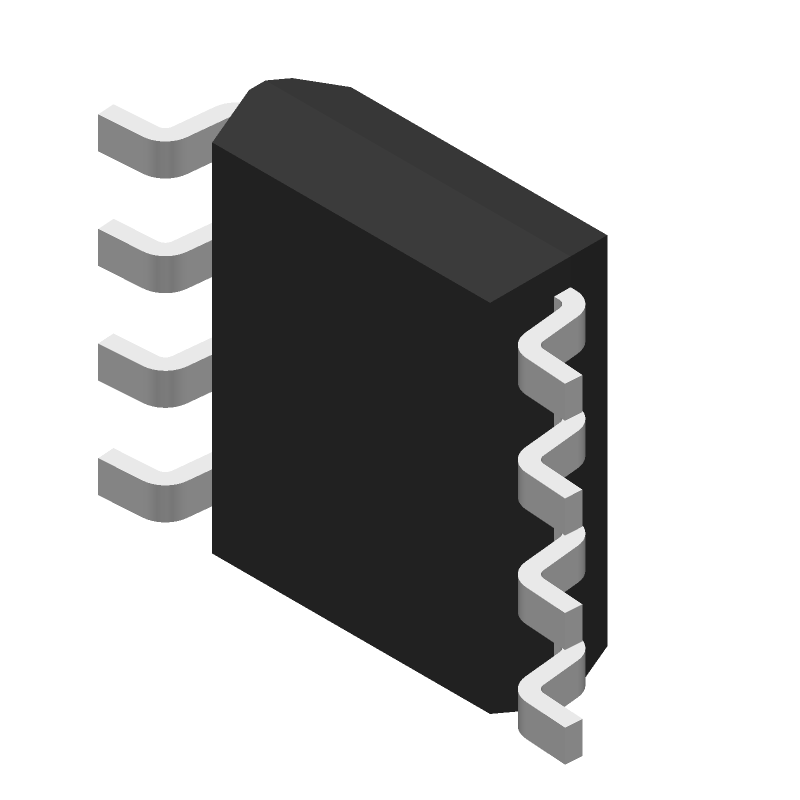

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM706TARZ-REEL by Analog Devices Inc
Results Overview of ADM706TARZ-REEL by Analog Devices Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ADM706TARZ-REEL Information
ADM706TARZ-REEL by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMX2325TMX-G | Rochester Electronics LLC | LMX2325 - RoHS - T/R, PLL Freq Synthesizer | |
| HSCHD02CR2001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Brown housing | |
| HSCHD02BR1001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Blue housing |
Price & Stock for ADM706TARZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AK1262
|
Newark | Mp Supervisor, Nsoic-8, 85Deg C, Reset Threshold Voltage ? Min:-, Reset Threshold Voltage ? Max:-, Reset Threshold Voltage - Nom:3.08V, No. Of Monitored Voltages:1Monitors, Supply Voltage Min:1V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices ADM706TARZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2223 |
|
$2.1800 | Buy Now |
|
DISTI #
ADM706TARZ-REELCT-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6540 In Stock |
|
$2.2750 / $5.9800 | Buy Now |
|
DISTI #
584-ADM706TARZ-R
|
Mouser Electronics | Supervisory Circuits RESET GENERATOR I.C. RoHS: Compliant | 3543 |
|
$2.4400 / $6.1000 | Buy Now |
|
DISTI #
V72:2272_06220761
|
Arrow Electronics | Processor Supervisor 3.08V 1 Active Low/Push-Pull 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2208 Container: Cut Strips | Americas - 1668 |
|
$2.3340 / $2.3560 | Buy Now |
|
|
Analog Devices Inc | RESET GENERATOR I.C. Min Qty: 2500 Package Multiple: 2500 | 2500 |
|
$2.2750 / $5.9800 | Buy Now |
|
DISTI #
61254592
|
Verical | Processor Supervisor 3.08V 1 Active Low/Push-Pull 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2208 | Americas - 1668 |
|
$2.3340 / $2.3560 | Buy Now |
|
|
Bristol Electronics | 994 |
|
RFQ | ||
|
|
Bristol Electronics | 306 |
|
RFQ | ||
|
|
Rochester Electronics | ADM706 - 3 VOLT, Voltage Monitoring Microprocessor Supervisory Circuit RoHS: Compliant Status: Active Min Qty: 1 | 2706 |
|
$1.9100 / $2.3900 | Buy Now |
|
DISTI #
ADM706TARZ-REEL
|
TME | IC: supervisor circuit, power on reset monitor (PoR), SO8, Ch: 1 Min Qty: 1 | 2055 |
|
$2.1300 / $3.1900 | Buy Now |
Part Details for ADM706TARZ-REEL
ADM706TARZ-REEL CAD Models
ADM706TARZ-REEL Part Data Attributes
|
|
ADM706TARZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM706TARZ-REEL
Analog Devices Inc
3 V, Voltage Monitoring Microprocessor Supervisory Circuit
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.35 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 3.15 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +3.08V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for ADM706TARZ-REEL
This table gives cross-reference parts and alternative options found for ADM706TARZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM706TARZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADM706TARZ | Analog Devices Inc | $1.1856 | 3 V, Voltage Monitoring Microprocessor Supervisory Circuit | ADM706TARZ-REEL vs ADM706TARZ |
| ADM706TAR-REEL | Analog Devices Inc | Check for Price | 3 V, Voltage Monitoring Microprocessor Supervisory Circuit | ADM706TARZ-REEL vs ADM706TAR-REEL |
| ADM706TAR | Analog Devices Inc | Check for Price | 3 V, Voltage Monitoring Microprocessor Supervisory Circuit | ADM706TARZ-REEL vs ADM706TAR |
| ADM708TAN | Analog Devices Inc | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDIP8, PLASTIC, DIP-8 | ADM706TARZ-REEL vs ADM708TAN |
| ADM706TAN | Analog Devices Inc | Check for Price | IC 1-CHANNEL POWER SUPPLY MANAGEMENT CKT, PDIP8, PLASTIC, MS-001, DIP-8, Power Management Circuit | ADM706TARZ-REEL vs ADM706TAN |
| ADM708TANZ | Analog Devices Inc | Check for Price | 3 V, Voltage Monitoring Microprocessor Supervisory Circuit | ADM706TARZ-REEL vs ADM708TANZ |
ADM706TARZ-REEL Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADM706TARZ-REEL involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and the GND pin to a solid ground plane. The input voltage should be within the recommended range, and the output should be terminated with a 1kΩ to 10kΩ resistor to ensure stability.
-
The maximum power dissipation of the ADM706TARZ-REEL is 500mW. However, this can be affected by the ambient temperature, PCB layout, and other factors. It's essential to ensure proper thermal management to prevent overheating.
-
The ADM706TARZ-REEL is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper thermal management and consider the device's thermal characteristics when designing for high-temperature applications.
-
To troubleshoot issues with the ADM706TARZ-REEL, start by verifying the power supply voltage, checking for proper biasing, and ensuring the input and output signals are within the recommended ranges. Use an oscilloscope to check for signal integrity and noise. If issues persist, consult the datasheet and application notes or contact Analog Devices' support team.
