ADM6713RAKSZ-REEL7 Information
ADM6713RAKSZ-REEL7 by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADM6713RAKSZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADM6713RAKSZ-REEL7CT-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL SC70-4 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9576 In Stock |
|
$0.4625 / $1.9200 | Buy Now |
|
DISTI #
584-ADM6713RAKSZR7
|
Mouser Electronics | Supervisory Circuits Microprocessor Reset Circuit. I.C. RoHS: Compliant | 20547 |
|
$0.4620 / $1.0400 | Buy Now |
|
DISTI #
V72:2272_06220634
|
Arrow Electronics | Processor Supervisor 2.63V 1 Active Low/Open Drain 4-Pin SC-70 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2412 Container: Cut Strips | Americas - 2989 |
|
$0.4745 / $0.6080 | Buy Now |
|
DISTI #
26618042
|
Verical | Processor Supervisor 2.63V 1 Active Low/Open Drain 4-Pin SC-70 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 15000 |
|
$0.4654 | Buy Now |
|
DISTI #
80937006
|
Verical | Processor Supervisor 2.63V 1 Active Low/Open Drain 4-Pin SC-70 T/R RoHS: Compliant Min Qty: 13 Package Multiple: 1 Date Code: 2412 | Americas - 2989 |
|
$0.4745 / $0.5508 | Buy Now |
|
|
Quest Components | 592 |
|
$0.4550 / $1.7500 | Buy Now |
Part Details for ADM6713RAKSZ-REEL7

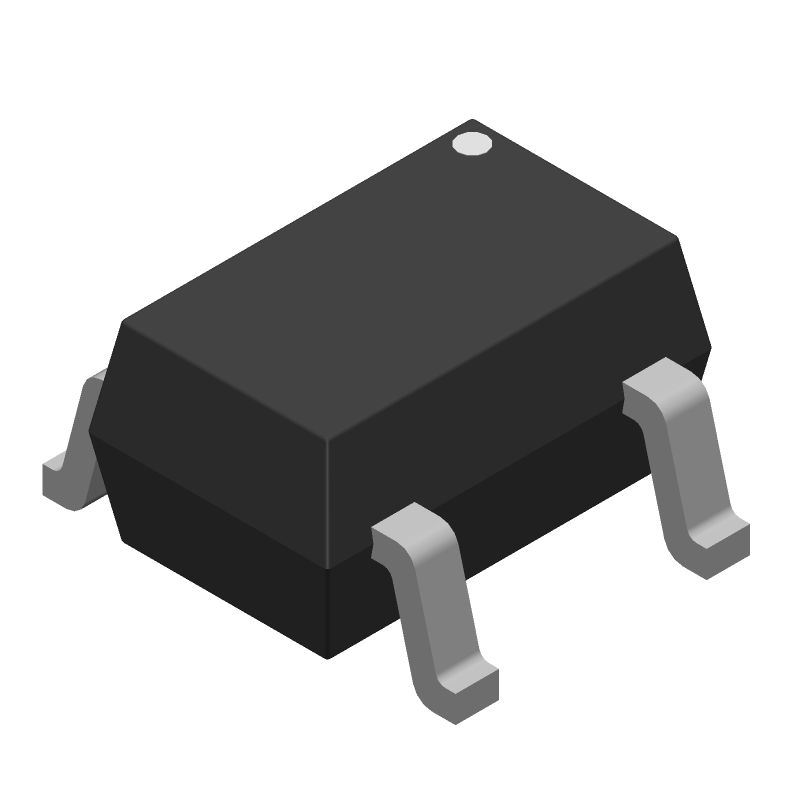

ADM6713RAKSZ-REEL7 CAD Models
ADM6713RAKSZ-REEL7 Part Data Attributes
|
|
ADM6713RAKSZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM6713RAKSZ-REEL7
Analog Devices Inc
Microprocessor Supervisory Circuit in 4-Lead SC70
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, EIAJ SC82, SC-70, 4 PIN | |
| Pin Count | 4 | |
| Manufacturer Package Code | KS-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | SOT-343R | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 0.03 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +2.63V | |
| Width | 1.25 mm |
