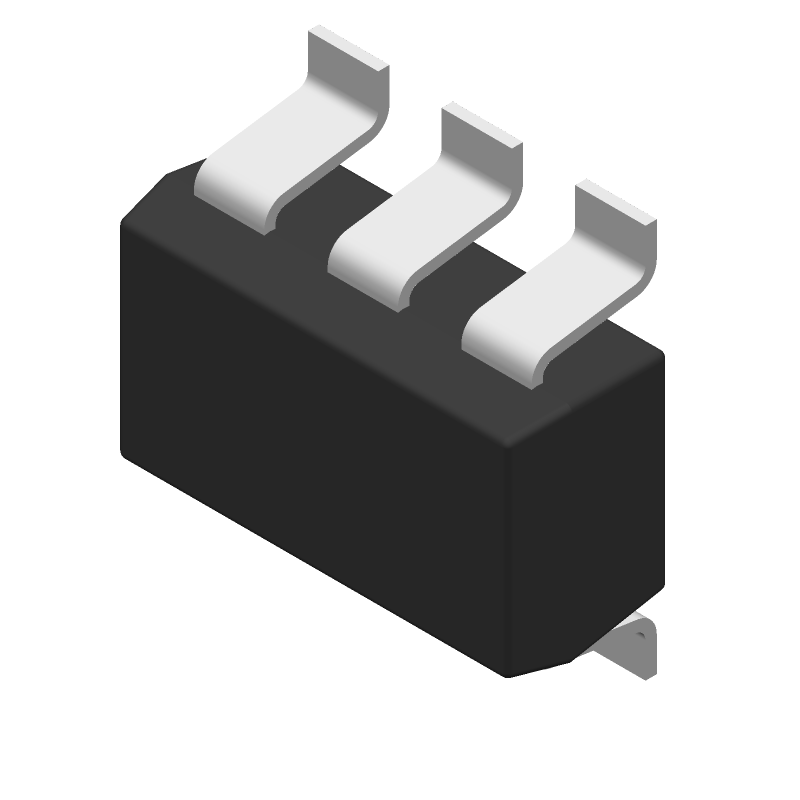

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM6710NARJZ-REEL7 by Analog Devices Inc
Results Overview of ADM6710NARJZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Industrial Automation
Energy and Power Systems
Renewable Energy
Automotive
Robotics and Drones
ADM6710NARJZ-REEL7 Information
ADM6710NARJZ-REEL7 by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADM6710NARJZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 288 |
|
RFQ |
Part Details for ADM6710NARJZ-REEL7
ADM6710NARJZ-REEL7 CAD Models
ADM6710NARJZ-REEL7 Part Data Attributes
|
|
ADM6710NARJZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM6710NARJZ-REEL7
Analog Devices Inc
Low Voltage, High Accuracy, Triple/Quad Voltage Microprocessor Supervisory Circuit
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOT-23, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | RJ-6 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.6 mm |
Alternate Parts for ADM6710NARJZ-REEL7
This table gives cross-reference parts and alternative options found for ADM6710NARJZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM6710NARJZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADM6710MARJZ-REEL7 | Analog Devices Inc | Check for Price | Low Voltage, High Accuracy, Triple/Quad Voltage Microprocessor Supervisory Circuit | ADM6710NARJZ-REEL7 vs ADM6710MARJZ-REEL7 |
| ADM6710JARJZ-REEL7 | Analog Devices Inc | Check for Price | Low Voltage, High Accuracy, Triple/Quad Voltage Microprocessor Supervisory Circuit | ADM6710NARJZ-REEL7 vs ADM6710JARJZ-REEL7 |
| ADM6710AARJZ-REEL7 | Rochester Electronics LLC | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO6, ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN | ADM6710NARJZ-REEL7 vs ADM6710AARJZ-REEL7 |
| ADM6710PARJZ-REEL7 | Analog Devices Inc | Check for Price | Low Voltage, High Accuracy, Triple/Quad Voltage Microprocessor Supervisory Circuit | ADM6710NARJZ-REEL7 vs ADM6710PARJZ-REEL7 |
| ADM6710AARJZ-REEL7 | Analog Devices Inc | Check for Price | Low Voltage, High Accuracy, Triple/Quad Voltage Microprocessor Supervisory Circuit | ADM6710NARJZ-REEL7 vs ADM6710AARJZ-REEL7 |
| ADM6710QARJZ | Analog Devices Inc | Check for Price | IC 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO6, ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN, Power Management Circuit | ADM6710NARJZ-REEL7 vs ADM6710QARJZ |
| ADM6710BARJZ-REEL7 | Rochester Electronics LLC | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO6, ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN | ADM6710NARJZ-REEL7 vs ADM6710BARJZ-REEL7 |
| ADM6710QARJZ-REEL7 | Analog Devices Inc | Check for Price | Low Voltage, High Accuracy, Triple/Quad Voltage Microprocessor Supervisory Circuit | ADM6710NARJZ-REEL7 vs ADM6710QARJZ-REEL7 |
| ADM6710EARJZ-REEL7 | Rochester Electronics LLC | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO6, ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN | ADM6710NARJZ-REEL7 vs ADM6710EARJZ-REEL7 |
| ADM6710BARJZ-REEL7 | Analog Devices Inc | Check for Price | Low Voltage, High Accuracy, Triple/Quad Voltage Microprocessor Supervisory Circuit | ADM6710NARJZ-REEL7 vs ADM6710BARJZ-REEL7 |
