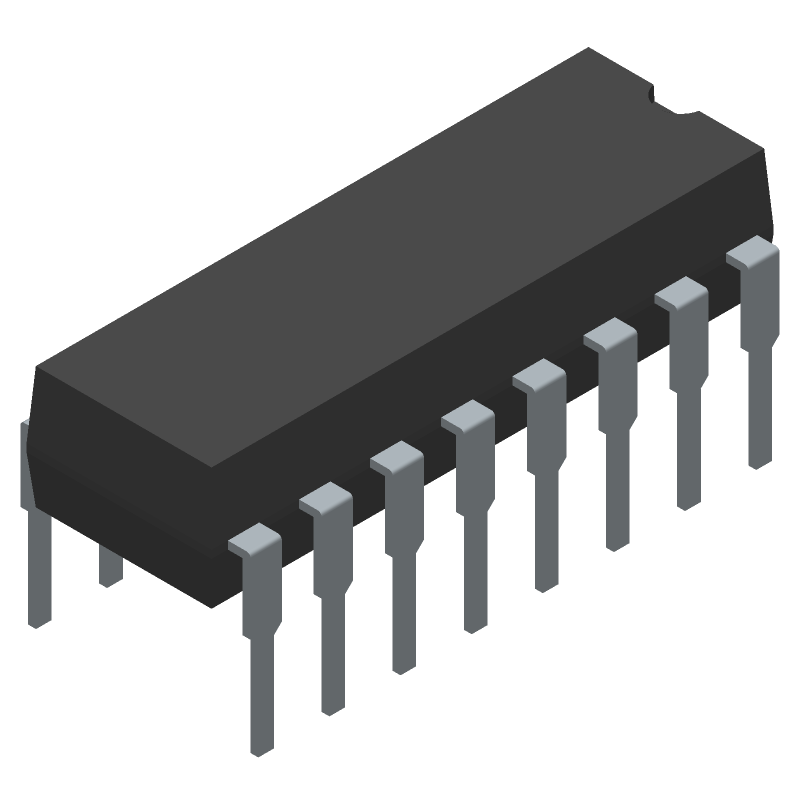

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM3202ANZ by Analog Devices Inc
Results Overview of ADM3202ANZ by Analog Devices Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
ADM3202ANZ Information
ADM3202ANZ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADM3202ANZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8546
|
Newark | Rs232 Transceiver, -40 To 85Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:Full Duplex, Data Rate Max:460Kbps, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Fail Safe:- Rohs Compliant: Yes |Analog Devices ADM3202ANZ RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$2.8400 / $5.3700 | Buy Now |
|
DISTI #
505-ADM3202ANZ-ND
|
DigiKey | IC TRANSCEIVER FULL 2/2 16PDIP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
485 In Stock |
|
$2.5125 / $6.4300 | Buy Now |
|
DISTI #
584-ADM3202ANZ
|
Mouser Electronics | RS-232 Interface IC 3V RS-232 I.C. RoHS: Compliant | 2292 |
|
$2.5100 / $4.9200 | Buy Now |
|
DISTI #
E54:1762_00118849
|
Arrow Electronics | Dual Transmitter/Receiver RS-232 16-Pin PDIP N Tube RoHS: Compliant Min Qty: 175 Package Multiple: 25 Lead time: 10 Weeks | Europe - 175 |
|
$2.7650 / $2.9746 | Buy Now |
|
DISTI #
V36:1790_06219734
|
Arrow Electronics | Dual Transmitter/Receiver RS-232 16-Pin PDIP N Tube RoHS: Compliant Min Qty: 225 Package Multiple: 25 Lead time: 10 Weeks Date Code: 2209 | Americas - 2 |
|
$2.3470 | Buy Now |
|
|
Analog Devices Inc | 3V RS-232 I.C. Package Multiple: 25 | 100 |
|
$2.5125 / $6.4300 | Buy Now |
|
DISTI #
10082103
|
Verical | Dual Transmitter/Receiver RS-232 16-Pin PDIP N Tube RoHS: Compliant Min Qty: 180 Package Multiple: 180 | Americas - 180 |
|
$2.7650 / $2.9746 | Buy Now |
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
|
Quest Components | 7 |
|
$3.2875 / $3.9450 | Buy Now | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 5 |
|
$3.5000 / $5.3800 | Buy Now |
Part Details for ADM3202ANZ
ADM3202ANZ CAD Models
ADM3202ANZ Part Data Attributes
|
|
ADM3202ANZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM3202ANZ
Analog Devices Inc
High-Speed, 2-Channel RS232/V.28 Interface Devices
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | DIP | |
| Package Description | LEAD FREE, PLASTIC, MS-001, DIP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | N-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; TIA-232-E; V.28 | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e3 | |
| Length | 20.07 mm | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0016 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 1000 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 5.33 mm | |
| Supply Current-Max | 12 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Transmit Delay-Max | 1200 ns | |
| Width | 7.62 mm |
Alternate Parts for ADM3202ANZ
This table gives cross-reference parts and alternative options found for ADM3202ANZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM3202ANZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADM3202AN | Analog Devices Inc | Check for Price | High-Speed, 2-Channel RS232/V.28 Interface Devices | ADM3202ANZ vs ADM3202AN |
ADM3202ANZ Frequently Asked Questions (FAQ)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Also, use a common mode choke or ferrite bead to filter the power supply lines.
-
Use a combination of ceramic and electrolytic capacitors to decouple the power supply lines. A 10uF ceramic capacitor and a 10uF electrolytic capacitor in parallel, placed close to the device, are recommended.
-
The maximum allowed voltage on the analog input pins is 5.5V. To protect them from overvoltage, use a voltage clamp circuit or a zener diode to limit the voltage to 5.5V.
-
To optimize the ADM3202ANZ for low power consumption, use the power-down mode, reduce the clock frequency, and minimize the number of active channels. The device has three power-saving modes: power-down, standby, and shutdown.
-
The recommended clock frequency is between 1MHz and 20MHz. A crystal oscillator or a high-quality clock source is recommended to ensure accurate conversions.
