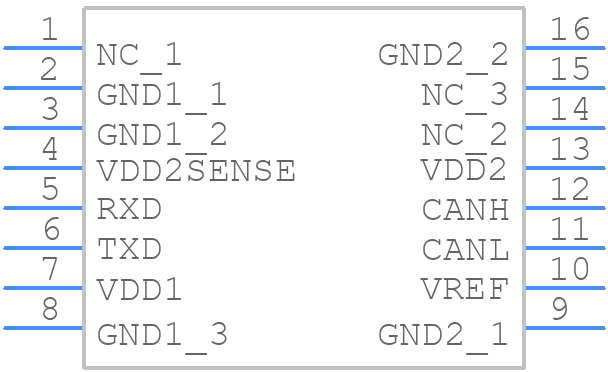

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM3054WBRWZ-RL7 by Analog Devices Inc
Results Overview of ADM3054WBRWZ-RL7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
ADM3054WBRWZ-RL7 Information
ADM3054WBRWZ-RL7 by Analog Devices Inc is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for ADM3054WBRWZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5178
|
Newark | Can Transceiver, 1Mbps, 1Tx/Rx, 5V, Soic, Can Interface Ic Type:Can Transceiver, Data Rate Max:1Mbps, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Ic Case/Package:Wsoic, No. Of Pins:16Pins, No. Of Channels:1Channels Rohs Compliant: Yes |Analog Devices ADM3054WBRWZ-RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 391 |
|
$4.0000 / $7.6900 | Buy Now |
|
DISTI #
505-ADM3054WBRWZ-RL7CT-ND
|
DigiKey | IC TRANSCEIVER 1/1 16SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
931 In Stock |
|
$4.0000 / $9.0400 | Buy Now |
|
DISTI #
584-ADM3054WBRWZ-RL7
|
Mouser Electronics | CAN Interface IC 5kVrms Int Signal + Power ISO CAN Xcvr RoHS: Compliant | 5507 |
|
$4.0200 / $7.4800 | Buy Now |
|
|
Analog Devices Inc | 5kVrms Int Signal + Power ISO Min Qty: 1 Package Multiple: 400 | 6587 |
|
$2.9700 / $9.0400 | Buy Now |
|
DISTI #
35217573
|
Verical | CAN 1Mbps 3.3V/5V Automotive AEC-Q100 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 400 Package Multiple: 400 | Americas - 6400 |
|
$4.0252 | Buy Now |
|
|
Rochester Electronics | 5KV RMS Signal Isolated High Speed CAN Transceiver with BUS PROTECTION RoHS: Compliant Status: Active Min Qty: 1 | 88 |
|
$3.3600 / $4.2000 | Buy Now |
|
DISTI #
ADM3054WBRWZRL7
|
Richardson RFPD | RF TRANSCEIVER MODULE RoHS: Compliant Min Qty: 400 | 0 |
|
$4.1800 / $4.3600 | Buy Now |
|
|
Vyrian | Telecommunications | 2829 |
|
RFQ |
Part Details for ADM3054WBRWZ-RL7
ADM3054WBRWZ-RL7 CAD Models
ADM3054WBRWZ-RL7 Part Data Attributes
|
|
ADM3054WBRWZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM3054WBRWZ-RL7
Analog Devices Inc
5 kV rms Signal Isolated High Speed CAN Transceiver with Bus Protection
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SOIC-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Data Rate | 1000 Mbps | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max | 0.075 mA | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Telecom IC Type | ETHERNET TRANSCEIVER | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
ADM3054WBRWZ-RL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADM3054WBRWZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the analog inputs. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure proper powering and decoupling of the ADM3054WBRWZ-RL7, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and consider adding a ferrite bead or a power inductor in series with the power supply to filter out high-frequency noise.
-
The maximum cable length for the ADM3054WBRWZ-RL7's RS-485 interface depends on the baud rate and the cable characteristics. As a general rule, the maximum cable length is approximately 1200 meters at 9600 bps, 600 meters at 19200 bps, and 300 meters at 38400 bps. However, it's recommended to consult the RS-485 specification and perform signal integrity simulations to determine the maximum cable length for a specific application.
-
The ADM3054WBRWZ-RL7's baud rate and data format can be configured using the SPI interface. The device's registers can be programmed to set the baud rate, data bits, parity, and stop bits. Consult the datasheet and the device's programming guide for specific register settings and configuration examples.
-
The ADM3054WBRWZ-RL7 has built-in ESD protection on its digital and analog pins. To ensure proper ESD protection, handle the device by the body or use an anti-static wrist strap, and store the device in an anti-static bag or container. Additionally, use ESD-protected workstations and follow proper ESD handling procedures during PCB assembly and testing.
