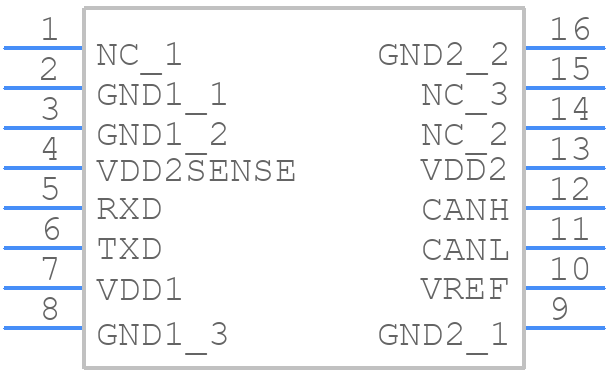

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM3054BRWZ-RL7 by Analog Devices Inc
Results Overview of ADM3054BRWZ-RL7 by Analog Devices Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
ADM3054BRWZ-RL7 Information
ADM3054BRWZ-RL7 by Analog Devices Inc is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for ADM3054BRWZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5177
|
Newark | Can Transceiver, 1Mbps, 1Tx/Rx, 5V, Soic, Can Interface Ic Type:Can Transceiver, Data Rate Max:1Mbps, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Ic Case/Package:Wsoic, No. Of Pins:16Pins, No. Of Channels:1Channels Rohs Compliant: Yes |Analog Devices ADM3054BRWZ-RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 397 |
|
$3.4700 / $7.1300 | Buy Now |
|
DISTI #
505-ADM3054BRWZ-RL7CT-ND
|
DigiKey | IC TRANSCEIVER 1/1 16SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
115 In Stock |
|
$3.4750 / $8.1500 | Buy Now |
|
DISTI #
584-ADM3054BRWZ-R7
|
Mouser Electronics | CAN Interface IC 5kVrms Int Signal + Power ISO CAN Xcvr RoHS: Compliant | 400 |
|
$3.6100 / $6.5900 | Buy Now |
|
DISTI #
V72:2272_06219660
|
Arrow Electronics | CAN 1Mbps 3.3V/5V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2312 Container: Cut Strips | Americas - 1825 |
|
$3.7310 / $4.4380 | Buy Now |
|
|
Analog Devices Inc | 5kVrms Int Signal + Power ISO Min Qty: 1 Package Multiple: 400 | 23 |
|
$2.5900 / $8.1500 | Buy Now |
|
DISTI #
67461448
|
Verical | CAN 1Mbps 3.3V/5V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2312 | Americas - 1825 |
|
$3.7310 / $4.4380 | Buy Now |
|
|
Quest Components | ETHERNET TRANSCEIVER, 1-TRNSVR, DMOS, PDSO16 | 182 |
|
$3.2851 / $8.2128 | Buy Now |
|
DISTI #
ADM3054BRWZ-RL7
|
Richardson RFPD | INTERFACE - TRANSCEIVER RoHS: Compliant Min Qty: 400 | 0 |
|
$3.6300 / $3.7800 | Buy Now |
|
|
Cytech Systems Limited | IC TXRX/ISO 1/1 16SOIC | 4800 |
|
RFQ | |
|
|
LCSC | SOIC-16-300mil Isolated CAN Transceivers ROHS | 69 |
|
$3.3930 / $5.5060 | Buy Now |
Part Details for ADM3054BRWZ-RL7
ADM3054BRWZ-RL7 CAD Models
ADM3054BRWZ-RL7 Part Data Attributes
|
|
ADM3054BRWZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM3054BRWZ-RL7
Analog Devices Inc
5 kV rms Signal Isolated High Speed CAN Transceiver with Bus Protection
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Data Rate | 1000 Mbps | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max | 0.075 mA | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | DMOS | |
| Telecom IC Type | ETHERNET TRANSCEIVER | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for ADM3054BRWZ-RL7
This table gives cross-reference parts and alternative options found for ADM3054BRWZ-RL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM3054BRWZ-RL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DP83848CVV | National Semiconductor Corporation | Check for Price | IC DATACOM, ETHERNET TRANSCEIVER, PQFP48, 7 X 7 MM, LQFP-48, Network Interface | ADM3054BRWZ-RL7 vs DP83848CVV |
| DP83848CVV/NOPB | National Semiconductor Corporation | Check for Price | IC DATACOM, ETHERNET TRANSCEIVER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48, Network Interface | ADM3054BRWZ-RL7 vs DP83848CVV/NOPB |
| DP83848CVV | Texas Instruments | Check for Price | DATACOM, ETHERNET TRANSCEIVER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 | ADM3054BRWZ-RL7 vs DP83848CVV |
| DP83848CW | National Semiconductor Corporation | Check for Price | IC DATACOM, ETHERNET TRANSCEIVER, PQFP48, 7 X 7 MM, LQFP-48, Network Interface | ADM3054BRWZ-RL7 vs DP83848CW |
| DP83848CW | Texas Instruments | Check for Price | DATACOM, ETHERNET TRANSCEIVER, PQFP48, 7 X 7 MM, LQFP-48 | ADM3054BRWZ-RL7 vs DP83848CW |
ADM3054BRWZ-RL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADM3054BRWZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
-
To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins.
-
The ADM3054BRWZ-RL7 can achieve data rates up to 100 Mbps, but the actual data rate may be limited by the specific application, PCB layout, and noise environment.
-
To prevent ESD damage, use ESD-protective equipment, such as wrist straps and mats, and follow proper handling and storage procedures. The ADM3054BRWZ-RL7 also has built-in ESD protection, but it's not a substitute for proper handling practices.
-
The ADM3054BRWZ-RL7 has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid overheating the device to prevent thermal shutdown or damage.
