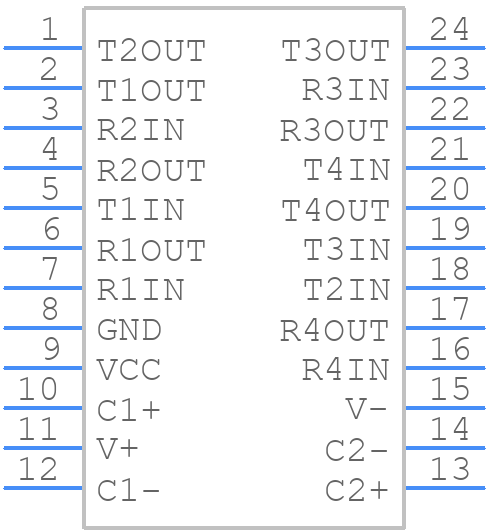

Part Symbol
-

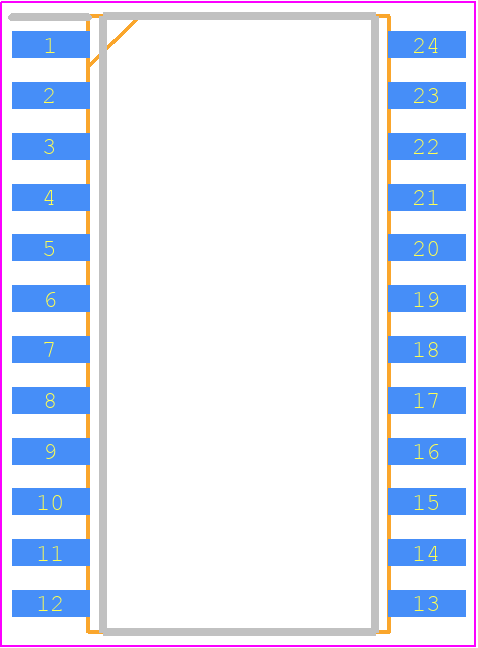

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM238LARZ by Analog Devices Inc
Results Overview of ADM238LARZ by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Audio and Video Systems
Energy and Power Systems
Renewable Energy
Robotics and Drones
ADM238LARZ Information
ADM238LARZ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADM238LARZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADM238LARZ-ND
|
DigiKey | IC TRANSCEIVER FULL 4/4 24SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
131 In Stock |
|
$5.8250 / $11.9700 | Buy Now |
|
DISTI #
584-ADM238LARZ
|
Mouser Electronics | RS-232 Interface IC RS-232 CIRCUIT RoHS: Compliant | 146 |
|
$5.9900 / $10.5100 | Buy Now |
|
|
Analog Devices Inc | RS-232 CIRCUIT Package Multiple: 31 | 1608 |
|
$4.6600 / $11.9700 | Buy Now |
|
DISTI #
25631296
|
Verical | Quad Transmitter/Receiver RS-232 24-Pin SOIC W Tube RoHS: Compliant Min Qty: 93 Package Multiple: 93 | Americas - 1581 |
|
$5.7638 | Buy Now |
|
DISTI #
81322379
|
Verical | Quad Transmitter/Receiver RS-232 24-Pin SOIC W Tube RoHS: Compliant Min Qty: 7 Package Multiple: 1 | Americas - 96 |
|
$7.8000 | Buy Now |
|
|
Rochester Electronics | 5V Powered CMOS RS-232 Driver/Receiver RoHS: Compliant Status: Active Min Qty: 1 | 5688 |
|
$4.9000 / $6.1300 | Buy Now |
|
DISTI #
ADM238LARZ
|
TME | IC: interface, receiver,line driver, RS232, 120kbps, SO24-W, tube Min Qty: 1 | 0 |
|
$6.9000 / $9.6600 | RFQ |
|
DISTI #
ADM238LARZ
|
Richardson RFPD | LINEAR ICS, OTHER RoHS: Compliant Min Qty: 1 | 96 |
|
$5.1800 | Buy Now |
Part Details for ADM238LARZ
ADM238LARZ CAD Models
ADM238LARZ Part Data Attributes
|
|
ADM238LARZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM238LARZ
Analog Devices Inc
Low Power, +5V CMOS RS-232 100kBPS Transceiver with 4 Drivers and 4 Receivers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | LEAD FREE, MS-013AD, SOIC-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | RW-24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | INTERNAL CHARGE PUMP | |
| Differential Output | NO | |
| Driver Number of Bits | 4 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; V.28 | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e3 | |
| Length | 15.4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Characteristics | TOTEM-POLE | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP24,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 4 | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max | 6 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
