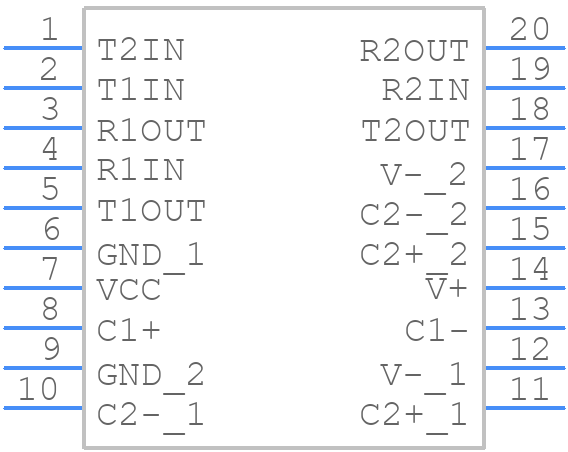

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM233LJNZ by Analog Devices Inc
Results Overview of ADM233LJNZ by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADM233LJNZ Information
ADM233LJNZ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADM233LJNZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8518
|
Newark | Rs232 Transceiver, 0 To 70Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:Full Duplex, Data Rate Max:120Kbps, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Fail Safe:- Rohs Compliant: Yes |Analog Devices ADM233LJNZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 91 |
|
$7.9600 / $12.1200 | Buy Now |
|
DISTI #
ADM233LJNZ-ND
|
DigiKey | IC TRANSCEIVER FULL 2/2 20PDIP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
243 In Stock |
|
$6.8125 / $13.4600 | Buy Now |
|
DISTI #
584-ADM233LJNZ
|
Mouser Electronics | RS-232 Interface IC RS-232 CIRCUIT RoHS: Compliant | 337 |
|
$7.0100 / $12.1200 | Buy Now |
|
DISTI #
V36:1790_06219516
|
Arrow Electronics | Dual Transmitter/Receiver RS-232 20-Pin PDIP N Tube RoHS: Compliant Min Qty: 90 Package Multiple: 18 Lead time: 10 Weeks Date Code: 2030 | Americas - 1 |
|
$6.6760 / $6.7940 | Buy Now |
|
|
Analog Devices Inc | RS-232 CIRCUIT Package Multiple: 18 | 4891 |
|
$5.4500 / $13.4600 | Buy Now |
|
DISTI #
25631293
|
Verical | Dual Transmitter/Receiver RS-232 20-Pin PDIP N Tube RoHS: Compliant Min Qty: 90 Package Multiple: 90 | Americas - 4770 |
|
$6.7409 | Buy Now |
|
|
Bristol Electronics | 37 |
|
RFQ | ||
|
|
Rochester Electronics | 5V Powered CMOS RS-232 Driver/Receiver RoHS: Compliant Status: Active Min Qty: 1 | 36 |
|
$5.7400 / $7.1700 | Buy Now |
|
DISTI #
ADM233LJNZ
|
TME | IC: interface, receiver,line driver, RS232, 120kbps, DIP20, tube Min Qty: 18 | 0 |
|
$5.0600 | RFQ |
Part Details for ADM233LJNZ
ADM233LJNZ CAD Models
ADM233LJNZ Part Data Attributes
|
|
ADM233LJNZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM233LJNZ
Analog Devices Inc
Low Power, +5V CMOS RS-232 120kBPS Transceiver with 2 Drivers & 2 Receivers. No External Capacitors Required
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | DIP | |
| Package Description | PLASTIC, MO-095AE, DIP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | N-20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | INTERNAL CHARGE PUMP | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; V.28 | |
| JESD-30 Code | R-PDIP-T20 | |
| JESD-609 Code | e3 | |
| Length | 24.51 mm | |
| Number of Functions | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 10 V | |
| Output Characteristics | TOTEM-POLE | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 4.57 mm | |
| Supply Current-Max | 6 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
