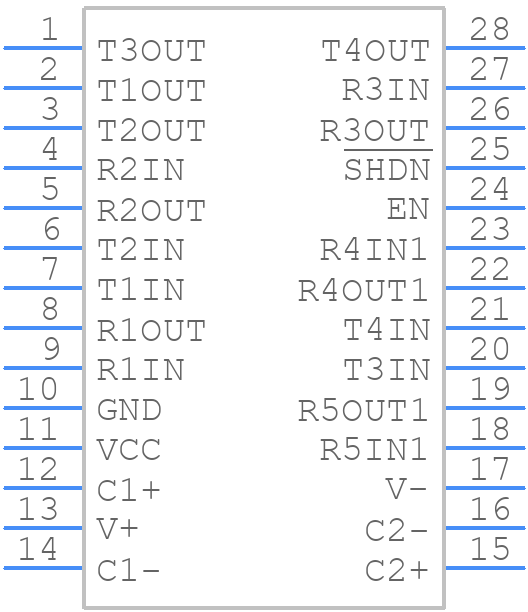

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM213EARUZ by Analog Devices Inc
Results Overview of ADM213EARUZ by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADM213EARUZ Information
ADM213EARUZ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADM213EARUZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5122
|
Newark | Rs232 Transceiver, -40 To 85Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:5Receivers, No. Of Transmitters:4, Communication Mode:Full Duplex, Data Rate Max:230Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Fail Safe:- Rohs Compliant: Yes |Analog Devices ADM213EARUZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 264 |
|
$1.5200 / $2.6700 | Buy Now |
|
DISTI #
ADM213EARUZ-ND
|
DigiKey | IC TRANSCEIVER FULL 4/5 28TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
15527 In Stock |
|
$1.5250 / $3.8000 | Buy Now |
|
DISTI #
584-ADM213EARUZ
|
Mouser Electronics | RS-232 Interface IC 5V RS-232 TRANSCEIVER W/COMPLIANCE I.C. RoHS: Compliant | 652 |
|
$1.5200 / $2.6700 | Buy Now |
|
DISTI #
V36:1790_06220355
|
Arrow Electronics | Quad Transmitter Quint Receiver RS-232 28-Pin TSSOP Tube RoHS: Compliant Min Qty: 400 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2104 | Americas - 10 |
|
$1.4240 | Buy Now |
|
|
Analog Devices Inc | 5V RS-232 TRANSCEIVER W/COMPLI Package Multiple: 50 | 6806 |
|
$1.1600 / $3.8000 | Buy Now |
|
DISTI #
25631319
|
Verical | Quad Transmitter Quint Receiver RS-232 28-Pin TSSOP Tube RoHS: Compliant Min Qty: 400 Package Multiple: 400 | Americas - 3600 |
|
$1.5090 | Buy Now |
|
|
Rochester Electronics | EMI/EMC-Compliant, +/- 15KV ESD-Protected, RS-232 Line Driver/Receiver RoHS: Compliant Status: Active Min Qty: 1 | 200 |
|
$1.2900 / $1.6100 | Buy Now |
Part Details for ADM213EARUZ
ADM213EARUZ CAD Models
ADM213EARUZ Part Data Attributes
|
|
ADM213EARUZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM213EARUZ
Analog Devices Inc
EMI/EMC-Compliant, 15 kV ESD Protected, RS-232 Line Drivers/Receivers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | LEAD FREE, MO-153AE, TSSOP-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | RU-28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 4 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; V.28 | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 9.7 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0016 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP28,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 2000 ns | |
| Receiver Number of Bits | 5 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 13 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm |
Alternate Parts for ADM213EARUZ
This table gives cross-reference parts and alternative options found for ADM213EARUZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM213EARUZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADM213EARU-REEL | Analog Devices Inc | Check for Price | IC QUAD LINE TRANSCEIVER, PDSO28, MO-153AE, TSSOP-28, Line Driver or Receiver | ADM213EARUZ vs ADM213EARU-REEL |
| ADM213EARU-REEL7 | Rochester Electronics LLC | Check for Price | Line Transceiver, 4 Func, 4 Driver, 5 Rcvr, CMOS, PDSO28, MO-153AE, TSSOP-28 | ADM213EARUZ vs ADM213EARU-REEL7 |
| ADM213EARU | Analog Devices Inc | Check for Price | IC QUAD LINE TRANSCEIVER, PDSO28, MO-153AE, TSSOP-28, Line Driver or Receiver | ADM213EARUZ vs ADM213EARU |
| ADM213EARUZ-REEL | Analog Devices Inc | Check for Price | EMI/EMC-Compliant, 15 kV ESD Protected, RS-232 Line Drivers/Receivers | ADM213EARUZ vs ADM213EARUZ-REEL |
| ADM213EARUZ | Rochester Electronics LLC | Check for Price | Line Transceiver, 4 Func, 4 Driver, 5 Rcvr, CMOS, PDSO28, LEAD FREE, MO-153AE, TSSOP-28 | ADM213EARUZ vs ADM213EARUZ |
| ADM213EARU | Rochester Electronics LLC | Check for Price | Line Transceiver, 4 Func, 4 Driver, 5 Rcvr, CMOS, PDSO28, MO-153AE, TSSOP-28 | ADM213EARUZ vs ADM213EARU |
ADM213EARUZ Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for power decoupling.
-
Use a shielded cable for the RS-232 interface, and consider using a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI). Also, ensure proper grounding and decoupling of the device.
-
The maximum cable length depends on the baud rate and cable quality. As a general guideline, use a cable length of up to 50 feet (15.24 meters) for baud rates up to 115.2 kbps. For longer cables, consider using a repeater or a more robust transmission protocol.
-
Use a human body model (HBM) ESD protection device, such as a TVS diode, on the RS-232 lines. Ensure that the ESD protection device is rated for the maximum voltage and current of the ADM213EARUZ.
-
Power up the device in the following sequence: VCC, then VEE. Ensure that VCC is stable before applying VEE. This sequence helps prevent latch-up and ensures reliable operation.
