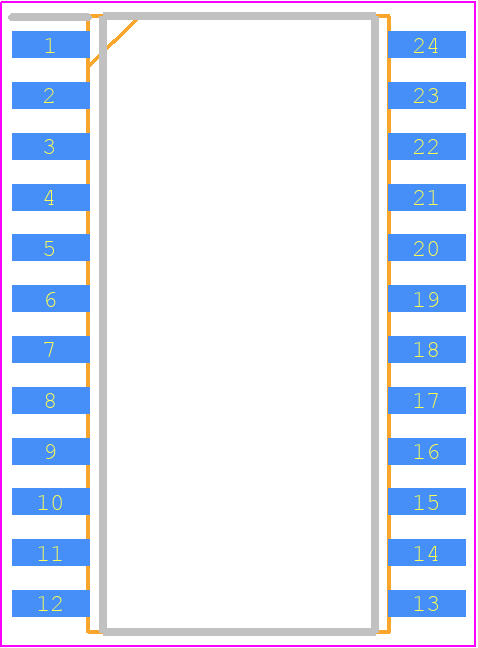

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM207EARZ by Analog Devices Inc
Results Overview of ADM207EARZ by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
ADM207EARZ Information
ADM207EARZ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ADM207EARZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5106
|
Newark | Rs232 Transceiver, -40 To 85Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:3Receivers, No. Of Transmitters:5, Communication Mode:Full Duplex, Data Rate Max:230Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Fail Safe:- Rohs Compliant: Yes |Analog Devices ADM207EARZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1240 |
|
$2.0800 / $3.9100 | Buy Now |
|
DISTI #
ADM207EARZ-ND
|
DigiKey | IC TRANSCEIVER FULL 5/3 24SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
183 In Stock |
|
$1.9000 / $5.2500 | Buy Now |
|
DISTI #
584-ADM207EARZ
|
Mouser Electronics | RS-232 Interface IC 5V RS-232 TRANSCEIVER W/COMPLIANCE I.C. RoHS: Compliant | 104 |
|
$1.9700 / $3.8300 | Buy Now |
|
DISTI #
E54:1762_00117169
|
Arrow Electronics | Quint Transmitter Triple Receiver RS-232 24-Pin SOIC W Tube RoHS: Compliant Min Qty: 217 Package Multiple: 31 Lead time: 10 Weeks Date Code: 2327 | Europe - 217 |
|
$1.5960 / $1.6600 | Buy Now |
|
|
Analog Devices Inc | 5V RS-232 TRANSCEIVER W/COMPLI Package Multiple: 31 | 2207 |
|
$1.4400 / $5.2500 | Buy Now |
|
DISTI #
26634904
|
Verical | Quint Transmitter Triple Receiver RS-232 24-Pin SOIC W Tube RoHS: Compliant Min Qty: 310 Package Multiple: 310 | Americas - 2170 |
|
$1.9119 | Buy Now |
|
DISTI #
71801714
|
Verical | Quint Transmitter Triple Receiver RS-232 24-Pin SOIC W Tube RoHS: Compliant Min Qty: 219 Package Multiple: 219 Date Code: 2327 | Americas - 219 |
|
$1.5960 | Buy Now |
|
|
Rochester Electronics | ADM207 - 0.1uF, 5V Powered CMOS RS-232 Driver/Receiver RoHS: Compliant Status: Active Min Qty: 1 | 24 |
|
$1.6000 / $2.0000 | Buy Now |
|
DISTI #
ADM207EARZ
|
TME | IC: interface, transceiver, full duplex,RS232, 230kbps, SO24-W Min Qty: 1 | 0 |
|
$2.7000 / $3.7800 | RFQ |
|
|
ComSIT USA | EMI/EMC-COMPLIANT, PLUS OR MINUS, 15 KV ESD-PROTECTED, RS-232 LINE DRIVER/RECEIVER Line Transceiver, 3 Func, 5 Driver, 3 Rcvr, CMOS, PDSO24 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ |
Part Details for ADM207EARZ
ADM207EARZ CAD Models
ADM207EARZ Part Data Attributes
|
|
ADM207EARZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM207EARZ
Analog Devices Inc
EMI/EMC Compliant, ±15kV Protected, 230kBPS, RS-232 Transceiver with 5 Drivers & 3 Receivers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | LEAD FREE, MS-013AD, SOIC-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | RW-24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 5 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; V.28 | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e3 | |
| Length | 15.4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 3 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Characteristics | TOTEM-POLE | |
| Output Low Current-Max | 0.0016 A | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP24,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 2000 ns | |
| Receiver Number of Bits | 3 | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max | 13 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
