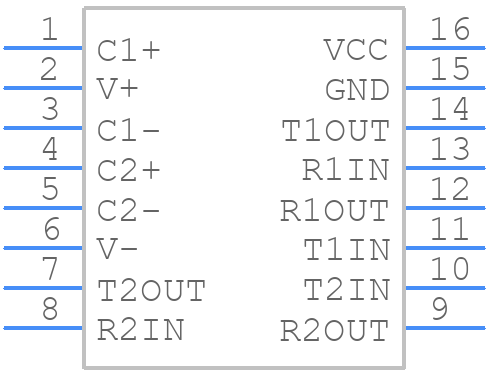

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM202EARUZ-REEL by Analog Devices Inc
Results Overview of ADM202EARUZ-REEL by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADM202EARUZ-REEL Information
ADM202EARUZ-REEL by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMX2325TMX-G | Rochester Electronics LLC | LMX2325 - RoHS - T/R, PLL Freq Synthesizer | |
| HSCHD02CR2001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Brown housing | |
| HSCHD02BR1001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Blue housing |
Price & Stock for ADM202EARUZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5102
|
Newark | Rs232 Transceiver, -40 To 85Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:Full Duplex, Data Rate Max:230Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Fail Safe:- Rohs Compliant: Yes |Analog Devices ADM202EARUZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1965 |
|
$0.9320 | Buy Now |
|
DISTI #
ADM202EARUZ-REELCT-ND
|
DigiKey | IC TRANSCEIVER FULL 2/2 16TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4842 In Stock |
|
$0.9750 / $3.2500 | Buy Now |
|
DISTI #
584-ADM202EARUZ-R
|
Mouser Electronics | RS-232 Interface IC 2 CHANNEL 15kV RS-232 TRANSCEIVER I.C. RoHS: Compliant | 6631 |
|
$1.0100 / $1.8300 | Buy Now |
|
|
Analog Devices Inc | 2 CHANNEL 15kV RS-232 TRANSCEI Min Qty: 2500 Package Multiple: 2500 | 7500 |
|
$0.9750 / $3.2500 | Buy Now |
|
|
Rochester Electronics | EMI/EMC-Compliant, +/- 15 KV, ESD Protected RS-232 Line Driver/Receiver RoHS: Compliant Status: Active Min Qty: 1 | 99 |
|
$0.8190 / $1.3200 | Buy Now |
|
DISTI #
SMC-ADM202EARUZ-REEL
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 6064 |
|
RFQ | |
|
DISTI #
SMC-ADM202EARUZ-REEL
|
Sensible Micro Corporation | Ic Dual Rs232 16-Tssop RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1117 Container: Tape & Reel | 217 |
|
$1.2870 / $1.3942 | RFQ |
|
|
LCSC | 230Kbps Transceiver TSSOP-16 RS232 ICs ROHS | 96 |
|
$1.5546 / $2.5312 | Buy Now |
|
|
Vyrian | Interface ICs | 2807 |
|
RFQ | |
|
|
Win Source Electronics | IC TXRX RS232 5V 15KV 16TSSOP | 2790 |
|
$1.3476 / $1.7405 | Buy Now |
Part Details for ADM202EARUZ-REEL
ADM202EARUZ-REEL CAD Models
ADM202EARUZ-REEL Part Data Attributes
|
|
ADM202EARUZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM202EARUZ-REEL
Analog Devices Inc
EMI/EMC Compliant, ±15 kV ESD Protected, RS-232 Line Drivers/Receivers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | LEAD FREE, MO-153AB, TSSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; V.28 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Characteristics | TOTEM-POLE | |
| Output Low Current-Max | 0.0032 A | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 1000 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 18 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 1500 ns | |
| Width | 4.4 mm |
Alternate Parts for ADM202EARUZ-REEL
This table gives cross-reference parts and alternative options found for ADM202EARUZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM202EARUZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADM202EARUZ-REEL7 | Analog Devices Inc | $1.5245 | EMI/EMC Compliant, ±15 kV ESD Protected, RS-232 Line Drivers/Receivers | ADM202EARUZ-REEL vs ADM202EARUZ-REEL7 |
| ADM202EARU-REEL | Analog Devices Inc | Check for Price | EMI/EMC Compliant, ±15 kV ESD Protected, RS-232 Line Drivers/Receivers | ADM202EARUZ-REEL vs ADM202EARU-REEL |
ADM202EARUZ-REEL Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADM202EARUZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
The ADM202EARUZ-REEL requires a clean and stable power supply. Use a high-quality voltage regulator and decouple the power pins with 0.1uF and 10uF capacitors. Add a 10nF capacitor between the VCC and GND pins for additional filtering.
-
The ADM202EARUZ-REEL can achieve data rates up to 100 Mbps, but the actual data rate depends on the system design, PCB layout, and cable quality. For high-speed applications, use a shielded cable and ensure the PCB layout is optimized for signal integrity.
-
The ADM202EARUZ-REEL has built-in ESD protection, but additional protection measures can be taken. Use ESD-protected connectors and add external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge.
-
The ADM202EARUZ-REEL is rated for operation from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat dissipation to maintain optimal performance.
