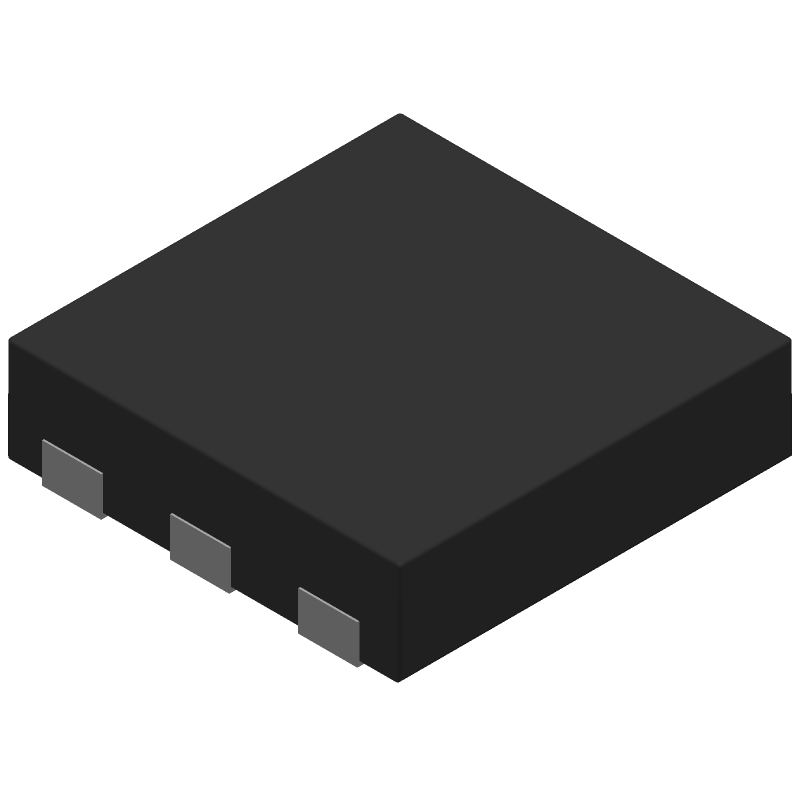

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADL6010ACPZN-R2 by Analog Devices Inc
Results Overview of ADL6010ACPZN-R2 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
ADL6010ACPZN-R2 Information
ADL6010ACPZN-R2 by Analog Devices Inc is an RF/Microwave Detector.
RF/Microwave Detectors are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for ADL6010ACPZN-R2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AK3419
|
Newark | Envelope Detector, 43.5Ghz, Lfcsp-Ep-6, Frequency Min:500Mhz, Frequency Max:43.5Ghz, Input Power Min:-30Dbm, Input Power Max:15Dbm, Sensitivity:-30Dbm, Rf Ic Case Style:Lfcsp-Ep, No. Of Pins:6Pins, Supply Voltage Min:4.75V Rohs Compliant: Yes |Analog Devices ADL6010ACPZN-R2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$153.4900 / $155.9300 | Buy Now |
|
DISTI #
ADL6010ACPZN-R2CT-ND
|
DigiKey | MICROWAVE DETECTOR Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
277 In Stock |
|
$136.0867 / $180.2100 | Buy Now |
|
DISTI #
584-ADL6010ACPZN-R2
|
Mouser Electronics | RF Detector Microwave Detector RoHS: Compliant | 430 |
|
$138.4300 / $165.2600 | Buy Now |
|
|
Analog Devices Inc | Microwave Detector Min Qty: 1 Package Multiple: 250 | 56 |
|
$42.8200 / $145.2900 | Buy Now |
|
|
Rochester Electronics | Fast Responding, 45 dB Range, 0.5 GHz to 43.5 GHz Envelope Detector RoHS: Compliant Status: Active Min Qty: 1 | 10 |
|
$112.8200 / $128.2000 | Buy Now |
|
DISTI #
ADL6010ACPZN-R2
|
Richardson RFPD | DETECTOR/CONTROLLER RoHS: Compliant Min Qty: 250 | 0 |
|
$136.9900 | Buy Now |
Part Details for ADL6010ACPZN-R2
ADL6010ACPZN-R2 CAD Models
ADL6010ACPZN-R2 Part Data Attributes
|
|
ADL6010ACPZN-R2
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADL6010ACPZN-R2
Analog Devices Inc
Fast Responding, 45 dB Range, 0.5 GHz to 43.5 GHz Envelope Detector
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | CP-6-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 20 dBm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Frequency-Max | 43500 MHz | |
| Operating Frequency-Min | 500 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SOLCC6,.08,25 | |
| Power Supplies | 5 V | |
| RF/Microwave Device Type | LINEAR DETECTOR | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Silver/Gold (Ni/Ag/Au) |
ADL6010ACPZN-R2 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
-
The ADL6010 requires a bias voltage of 3.3V to 5.5V. Ensure the bias voltage is stable and noise-free, and that the input voltage is within the recommended range of 0.5V to 2.5V.
-
The ADL6010 can handle input frequencies up to 100 MHz. However, the device's performance may degrade at higher frequencies due to internal capacitance and resistance.
-
To minimize power consumption, ensure the ADL6010 is operated at the lowest possible supply voltage (3.3V) and that the input signal is within the recommended range. Additionally, consider using a low-power mode or shutdown feature if available.
-
The ADL6010 has built-in ESD protection, but additional external protection may be necessary depending on the application. Consider using TVS diodes or ESD protection arrays to protect the device from electrostatic discharge.
