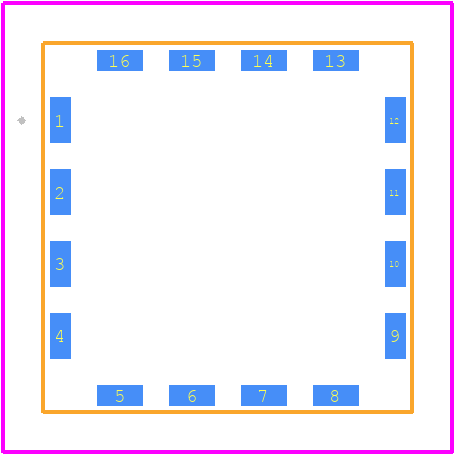

Footprint
-

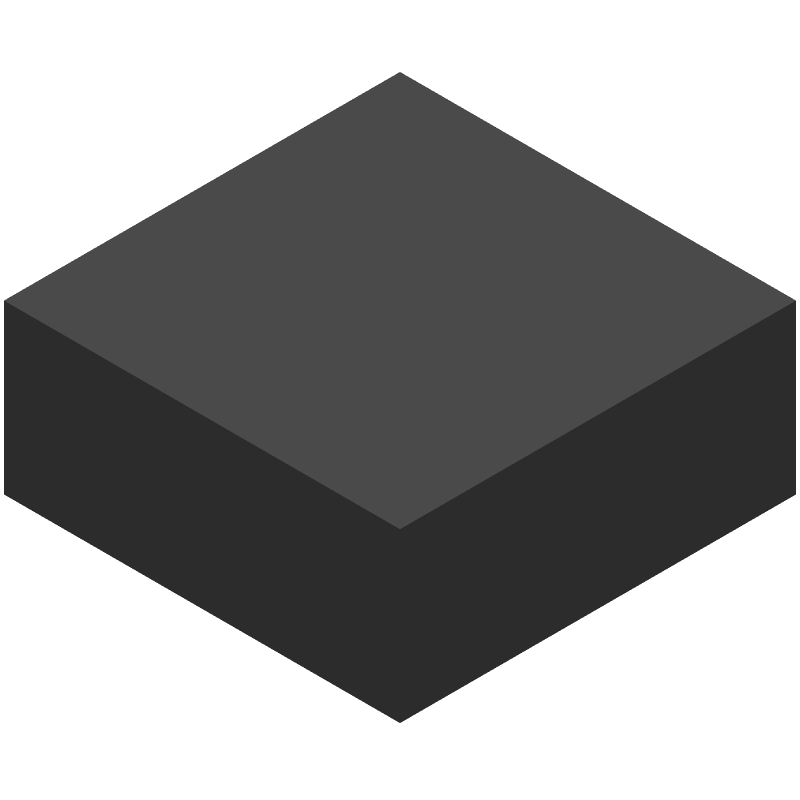

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADIS16203CCCZ by Analog Devices Inc
Results Overview of ADIS16203CCCZ by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
ADIS16203CCCZ Information
ADIS16203CCCZ by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADIS16203CCCZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9253
|
Newark | Mems Accelerometer, Digital, Lga, Sensing Range - Accelerometer:Programmable, Sensing Axis:-, Output Interface:Spi, Sensor Case/Package:Lga, No. Of Pins:16Pins, Sensitivity Typ:0.025°/Lsb, Supply Voltage Min:3V, Qualification:- Rohs Compliant: Yes |Analog Devices ADIS16203CCCZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 10 |
|
$61.8500 / $81.4500 | Buy Now |
|
DISTI #
ADIS16203CCCZ-ND
|
DigiKey | SENSOR INCLINOMETER 360DEG 16LGA Min Qty: 1 Lead time: 21 Weeks Container: Tray |
130 In Stock |
|
$64.9162 / $78.8500 | Buy Now |
|
DISTI #
584-ADIS16203CCCZ
|
Mouser Electronics | Inclinometers 360 Degree Inclinometer RoHS: Compliant | 316 |
|
$64.2100 / $78.8500 | Buy Now |
|
|
Analog Devices Inc | 360 Degree Inclinometer Package Multiple: 1 | 26 |
|
$49.0100 / $78.8500 | Buy Now |
|
|
LCSC | 360 LGA-16 Position Sensors ROHS | 3 |
|
$68.8623 / $72.1662 | Buy Now |
Part Details for ADIS16203CCCZ
ADIS16203CCCZ CAD Models
ADIS16203CCCZ Part Data Attributes
|
|
ADIS16203CCCZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADIS16203CCCZ
Analog Devices Inc
Programmable 360° Inclinometer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | LGA | |
| Package Description | LGA-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | CC-16-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | S-PBGA-N16 | |
| Length | 9.2 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LGA | |
| Package Equivalence Code | LGA16,4X4,70 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.9 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 1.78 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 9.2 mm |
