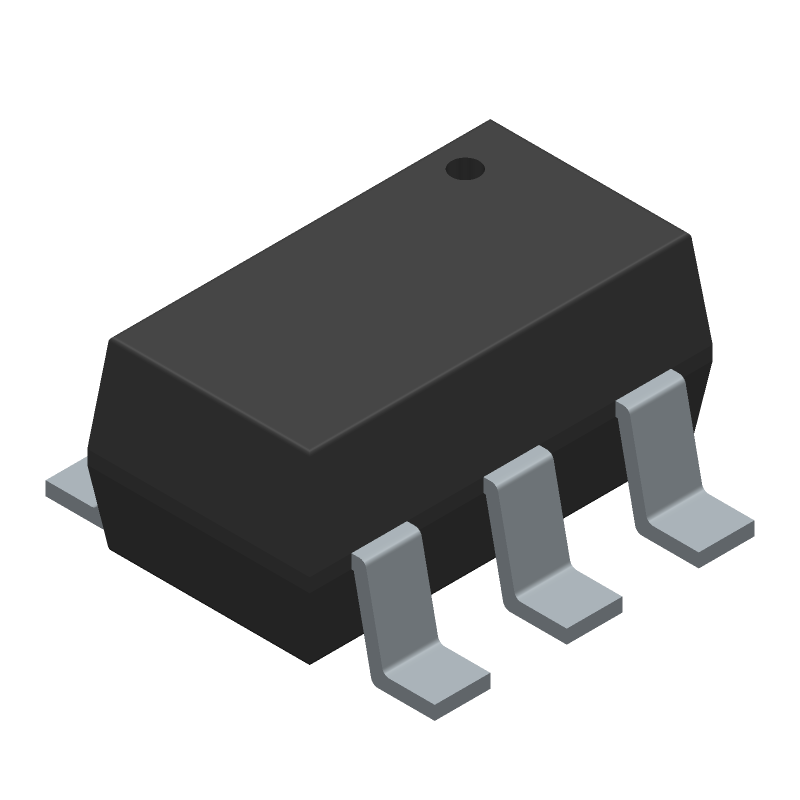

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADG801BRTZ-500RL7 by Analog Devices Inc
Results Overview of ADG801BRTZ-500RL7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Communication and Networking
ADG801BRTZ-500RL7 Information
ADG801BRTZ-500RL7 by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADG801BRTZ-500RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5009
|
Newark | Analogue Switch, 1-Channel, Spst-Nc, Ic Function:Analog Switch, Power Supply Type:Single Supply, Supply Voltage Range:1.8V To 5.5V, Ic Case/Package:Sot-23, No. Of Pins:6Pins, No. Of Channels:1Channels, On Resistance Typ:0.25Ohm Rohs Compliant: Yes |Analog Devices ADG801BRTZ-500RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 38 |
|
$1.6800 / $3.2800 | Buy Now |
|
DISTI #
505-ADG801BRTZ-500RL7CT-ND
|
DigiKey | IC SW SPST-NOX1 300MOHM SOT23-6 Min Qty: 1 Lead time: 26 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1275 In Stock |
|
$1.6000 / $4.6300 | Buy Now |
|
DISTI #
584-ADG801BRTZ-500R7
|
Mouser Electronics | Analog Switch ICs Single SPST, NO RoHS: Compliant | 662 |
|
$1.6000 / $3.7800 | Buy Now |
|
|
Analog Devices Inc | Single SPST, NO Package Multiple: 500 | 355 |
|
$1.6000 / $4.6300 | Buy Now |
|
|
Bristol Electronics | 739 |
|
RFQ | ||
|
|
Rochester Electronics | Single SPST, NO RoHS: Compliant Status: Active Min Qty: 1 | 56 |
|
$1.3400 / $1.6800 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 1500 |
|
RFQ | |
|
|
Win Source Electronics | IC SWITCH SPST SOT23-6 | 720 |
|
$2.0000 / $3.0001 | Buy Now |
Part Details for ADG801BRTZ-500RL7
ADG801BRTZ-500RL7 CAD Models
ADG801BRTZ-500RL7 Part Data Attributes
|
|
ADG801BRTZ-500RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG801BRTZ-500RL7
Analog Devices Inc
<0.4 Ω CMOS 1.8 V to 5.5 V SPST Switch
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | RJ-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPST | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Normal Position | NO | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Off-state Isolation-Nom | 61 dB | |
| On-state Resistance-Max (Ron) | 0.6 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 15 ns | |
| Switch-on Time-Max | 55 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.6 mm |
Alternate Parts for ADG801BRTZ-500RL7
This table gives cross-reference parts and alternative options found for ADG801BRTZ-500RL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADG801BRTZ-500RL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADG801BRTZ-REEL7 | Analog Devices Inc | $2.1364 | <0.4 Ω CMOS 1.8 V to 5.5 V SPST Switch | ADG801BRTZ-500RL7 vs ADG801BRTZ-REEL7 |
| ADG801BRTZ-REEL | Rochester Electronics LLC | Check for Price | 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO6, ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN | ADG801BRTZ-500RL7 vs ADG801BRTZ-REEL |
| ADG801BRT | Analog Devices Inc | Check for Price | IC 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO6, PLASTIC, SOT-23, 6 PIN, Multiplexer or Switch | ADG801BRTZ-500RL7 vs ADG801BRT |
| ADG801BRT-R2 | Analog Devices Inc | Check for Price | IC 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO6, MO-178AB, SOT-23, 6 PIN, Multiplexer or Switch | ADG801BRTZ-500RL7 vs ADG801BRT-R2 |
| ADG801BRTZ-500RL7 | Rochester Electronics LLC | Check for Price | 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO6, ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN | ADG801BRTZ-500RL7 vs ADG801BRTZ-500RL7 |
| ADG801BRT-500RL7 | Rochester Electronics LLC | Check for Price | 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO6, MO-178AB, SOT-23, 6 PIN | ADG801BRTZ-500RL7 vs ADG801BRT-500RL7 |
| ADG801BRT-REEL | Analog Devices Inc | Check for Price | IC 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO6, MO-178AB, SOT-23, 6 PIN, Multiplexer or Switch | ADG801BRTZ-500RL7 vs ADG801BRT-REEL |
| ADG801BRT-500RL7 | Analog Devices Inc | Check for Price | <0.4 Ω CMOS 1.8 V to 5.5 V SPST Switch | ADG801BRTZ-500RL7 vs ADG801BRT-500RL7 |
ADG801BRTZ-500RL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADG801BRTZ-500RL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, a thermal pad on the bottom of the package should be connected to a thermal relief pattern on the PCB to improve heat dissipation.
-
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the VEE pin to a stable -5V power supply. The input voltage range is ±2.5V, and the output voltage range is ±4.5V. Additionally, decouple the power supplies with 0.1uF capacitors to reduce noise.
-
The ADG801BRTZ-500RL7 has a bandwidth of 500MHz, making it suitable for high-frequency applications. However, the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, the device can operate up to 300MHz with minimal signal degradation.
-
To protect the ADG801BRTZ-500RL7 from overvoltage and ESD damage, use voltage clamps or transient voltage suppressors on the input and output lines. Additionally, follow proper ESD handling procedures when handling the device, and use an ESD-protected workstation or mat.
-
The thermal resistance of the ADG801BRTZ-500RL7 package is 25°C/W (junction-to-ambient) and 10°C/W (junction-to-case). Proper thermal management is crucial to ensure the device operates within its specified temperature range.
