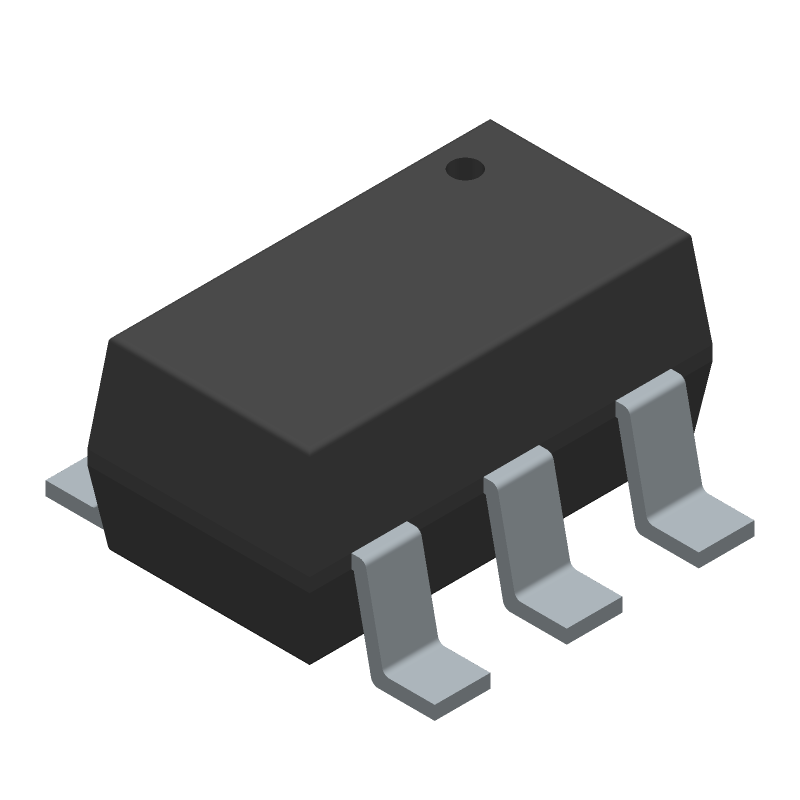

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADG719BRTZ-REEL by Analog Devices Inc
Results Overview of ADG719BRTZ-REEL by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Communication and Networking
ADG719BRTZ-REEL Information
ADG719BRTZ-REEL by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMX2325TMX-G | Rochester Electronics LLC | LMX2325 - RoHS - T/R, PLL Freq Synthesizer |
Price & Stock for ADG719BRTZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20AM2195
|
Newark | Analogue Switch, 1-Ch, Spdt, Sot-23-6 Rohs Compliant: Yes |Analog Devices ADG719BRTZ-REEL RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel | 10000 |
|
$1.5000 | Buy Now |
|
DISTI #
505-ADG719BRTZ-REELCT-ND
|
DigiKey | IC SWITCH SPDT X 1 4OHM SOT23-6 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
27149 In Stock |
|
$1.4625 / $4.3400 | Buy Now |
|
DISTI #
584-ADG719BRTZ-R
|
Mouser Electronics | Analog Switch ICs LOW VOLTAGE SINGEL SPDT RoHS: Compliant | 47913 |
|
$1.5200 / $2.5200 | Buy Now |
|
DISTI #
V72:2272_06219317
|
Arrow Electronics | Analog Switch Single SPDT 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2303 Container: Cut Strips | Americas - 14684 |
|
$1.5700 / $1.8730 | Buy Now |
|
DISTI #
66360757
|
Verical | Analog Switch Single SPDT 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2303 | Americas - 14684 |
|
$1.5700 / $1.8730 | Buy Now |
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
|
Cytech Systems Limited | IC SWITCH SPDT X 1 4OHM SOT23-6 | 20000 |
|
RFQ | |
|
|
LCSC | 4 SPDT(SPDT) SOT-23-6 Analog Switches Multiplexers ROHS | 1674 |
|
$0.4319 / $0.8319 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 21993 |
|
RFQ | |
|
|
Win Source Electronics | CMOS 1.8 V to 5.5 V, 2.5 Ω 2:1 Mux/SPDT Switch in SOT-23 | IC SWITCH SPDT SOT23-6 | 35910 |
|
$0.5000 / $0.6458 | Buy Now |
Part Details for ADG719BRTZ-REEL
ADG719BRTZ-REEL CAD Models
ADG719BRTZ-REEL Part Data Attributes
|
|
ADG719BRTZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG719BRTZ-REEL
Analog Devices Inc
CMOS 1.8 V to 5.5 V, 2.5Ω 2:1 Mux/SPDT Switch in SOT-23
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | RJ-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPDT | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Off-state Isolation-Nom | 67 dB | |
| On-state Resistance Match-Nom | 0.1 Ω | |
| On-state Resistance-Max (Ron) | 12 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 8 ns | |
| Switch-on Time-Max | 15 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
Alternate Parts for ADG719BRTZ-REEL
This table gives cross-reference parts and alternative options found for ADG719BRTZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADG719BRTZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADG719BRT-REEL7 | Analog Devices Inc | Check for Price | CMOS 1.8 V to 5.5 V, 2.5Ω 2:1 Mux/SPDT Switch in SOT-23 | ADG719BRTZ-REEL vs ADG719BRT-REEL7 |
ADG719BRTZ-REEL Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADG719BRTZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
-
The ADG719BRTZ-REEL requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the analog power supply is stable.
-
The recommended clock frequency for the ADG719BRTZ-REEL is between 1 MHz and 50 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. A clock signal with excessive jitter or noise can affect the device's performance and accuracy.
-
The ADG719BRTZ-REEL's digital output data is a 16-bit or 18-bit parallel data output. It's recommended to use a FIFO or a buffer to handle the data output. The data should be processed and filtered according to the specific application requirements, but a simple moving average filter or a low-pass filter can be used to reduce noise and improve accuracy.
-
The ADG719BRTZ-REEL has a maximum junction temperature of 125°C. To ensure proper thermal management, it's recommended to use a heat sink or a thermal pad on the device, and to keep the ambient temperature below 70°C. A good thermal design should also consider the PCB layout, airflow, and thermal interface materials.
