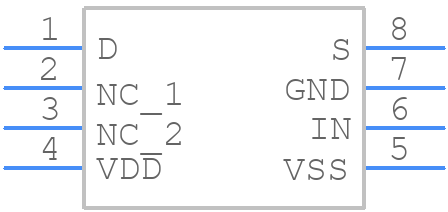

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADG602BRMZ-REEL7 by Analog Devices Inc
Results Overview of ADG602BRMZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Communication and Networking
ADG602BRMZ-REEL7 Information
ADG602BRMZ-REEL7 by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADG602BRMZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADG602BRMZ-REEL7CT-ND
|
DigiKey | IC SWITCH SPST-NCX1 2.5OHM 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.7500 / $5.0600 | Buy Now |
|
DISTI #
584-ADG602BRMZ-R7
|
Mouser Electronics | Analog Switch ICs 2 ?, CMOS, 5 V/+5 V SPST Switch RoHS: Compliant | 0 |
|
$1.9000 / $1.9700 | Order Now |
|
|
Analog Devices Inc | ±5V, 2.5 Ohm SPST, NO I.C. Min Qty: 1000 Package Multiple: 1000 | 26000 |
|
$1.7500 / $5.0600 | Buy Now |
|
DISTI #
26634780
|
Verical | Analog Switch Single SPST 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 26000 |
|
$1.7316 | Buy Now |
|
|
Rochester Electronics | SPST, 1 Channel, CMOS, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 5868 |
|
$1.4700 / $1.8400 | Buy Now |
Part Details for ADG602BRMZ-REEL7
ADG602BRMZ-REEL7 CAD Models
ADG602BRMZ-REEL7 Part Data Attributes
|
|
ADG602BRMZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG602BRMZ-REEL7
Analog Devices Inc
2 Ω, CMOS, ±5 V/+5 V SPST Switch
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | ROHS COMPLIANT, MO-187AA, MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | CAN ALSO OPERATE WITH 2.7V TO 5.5V SINGLE SUPPLY | |
| Analog IC - Other Type | SPST | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -5.5 V | |
| Neg Supply Voltage-Min (Vsup) | -2.7 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Normal Position | NC | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Off-state Isolation-Nom | 60 dB | |
| On-state Resistance Match-Nom | 0.35 Ω | |
| On-state Resistance-Max (Ron) | 2.5 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 75 ns | |
| Switch-on Time-Max | 120 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for ADG602BRMZ-REEL7
This table gives cross-reference parts and alternative options found for ADG602BRMZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADG602BRMZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADG708BRUZ-REEL7 | Analog Devices Inc | $2.7611 | CMOS, Low Voltage, Single 8 to 1 Multiplexer | ADG602BRMZ-REEL7 vs ADG708BRUZ-REEL7 |
| ADG739BRUZ-REEL | Analog Devices Inc | Check for Price | DUAL 4-CHANNEL, AUDIO/VIDEO SWITCH, PDSO16, TSSOP-16 | ADG602BRMZ-REEL7 vs ADG739BRUZ-REEL |
| ADG751BRM-REEL | Analog Devices Inc | Check for Price | IC 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO8, MICRO, SOIC-8, Multiplexer or Switch | ADG602BRMZ-REEL7 vs ADG751BRM-REEL |
| ADG751ARM-REEL | Analog Devices Inc | Check for Price | IC 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO8, MICRO, SOIC-8, Multiplexer or Switch | ADG602BRMZ-REEL7 vs ADG751ARM-REEL |
| ADG751BRM | Analog Devices Inc | Check for Price | IC 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO8, MICRO, SOIC-8, Multiplexer or Switch | ADG602BRMZ-REEL7 vs ADG751BRM |
| ADG752BRM-REEL7 | Analog Devices Inc | Check for Price | IC 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDSO8, MICRO, SOIC-8, Multiplexer or Switch | ADG602BRMZ-REEL7 vs ADG752BRM-REEL7 |
| ADG819BRTZ-REEL | Analog Devices Inc | Check for Price | 0.5 Ω CMOS 1.8 V to 5.5 V 2:1 Mux/SPDT Switch with BBM Switching Action | ADG602BRMZ-REEL7 vs ADG819BRTZ-REEL |
| ISL5122IB | Intersil Corporation | Check for Price | DUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO8, PLASTIC, MS-012-AA, SOIC-8 | ADG602BRMZ-REEL7 vs ISL5122IB |
| ADG758BCP-REEL | Analog Devices Inc | Check for Price | IC 8-CHANNEL, SGL ENDED MULTIPLEXER, QCC20, 4 X 4 MM, CSP-20, Multiplexer or Switch | ADG602BRMZ-REEL7 vs ADG758BCP-REEL |
| ADG658YRU | Analog Devices Inc | Check for Price | +3V/+5V/± 5V CMOS 8-Channel Analog Multiplexer | ADG602BRMZ-REEL7 vs ADG658YRU |
ADG602BRMZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADG602BRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated analog ground layer is recommended.
-
To ensure the ADG602BRMZ-REEL7 operates within its specified temperature range, provide adequate heat sinking, avoid overheating, and keep the device away from high-power components. Also, consider using thermal interface materials and heat sinks to dissipate heat efficiently.
-
The recommended power-up sequence for the ADG602BRMZ-REEL7 is to apply the analog supply voltage (VDD) before the digital supply voltage (VCC). This ensures that the analog circuitry is powered up before the digital circuitry, which helps prevent latch-up and other issues.
-
To handle ESD protection for the ADG602BRMZ-REEL7, use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Also, follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
-
The recommended clock frequency for the ADG602BRMZ-REEL7 depends on the specific application, but generally, it should be within the range of 1 MHz to 100 MHz. However, it's essential to consult the datasheet and application notes for specific guidance on clock frequency selection.
