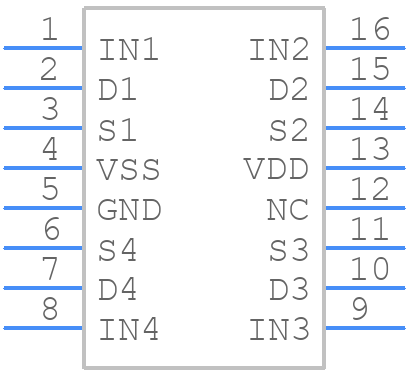

Part Symbol
-

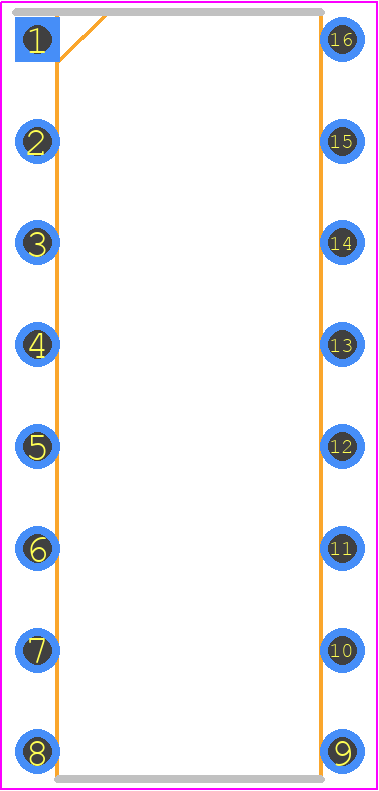

Footprint
-

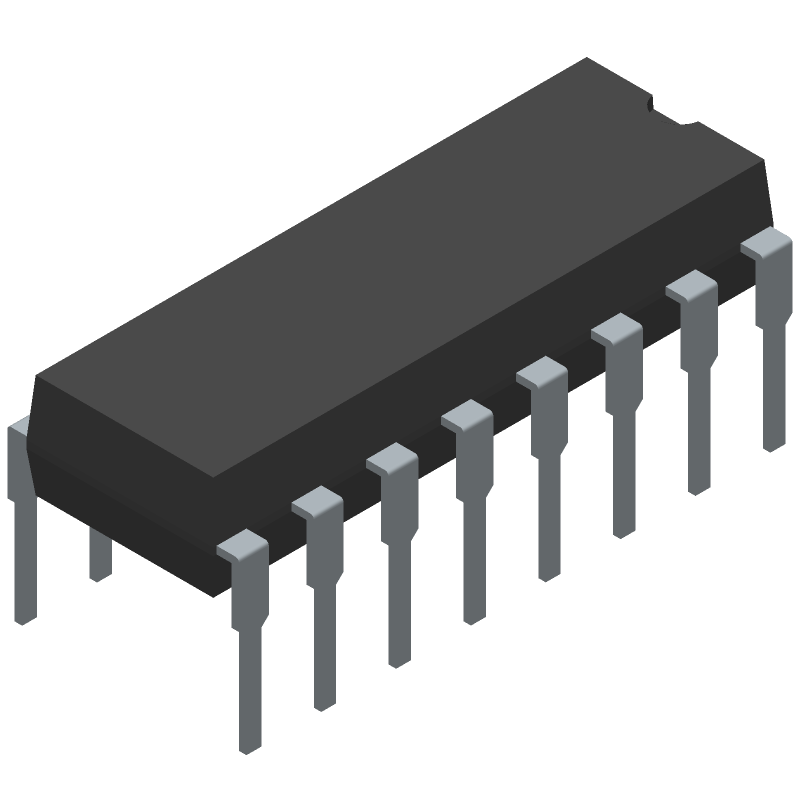

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADG201AKN by Analog Devices Inc
Results Overview of ADG201AKN by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Communication and Networking
Automotive
ADG201AKN Information
ADG201AKN by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADG201AKN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 834 |
|
RFQ | ||
|
|
Bristol Electronics | 73 |
|
RFQ | ||
|
|
Quest Components | SPST, 1 FUNC, 1 CHANNEL, CMOS, PDIP16 | 60 |
|
$4.8119 / $7.8030 | Buy Now |
|
|
Quest Components | SPST, 1 FUNC, 1 CHANNEL, CMOS, PDIP16 | 11 |
|
$3.9435 / $5.3775 | Buy Now |
|
|
Quest Components | SPST, 1 FUNC, 1 CHANNEL, CMOS, PDIP16 | 9 |
|
$6.6000 / $9.0000 | Buy Now |
|
|
Quest Components | SPST, 1 FUNC, 1 CHANNEL, CMOS, PDIP16 | 4 |
|
$3.5850 / $5.3775 | Buy Now |
|
|
Rochester Electronics | SPST, 1 Func, 1 Channel, CMOS, PDIP16 RoHS: Not Compliant Status: Obsolete Min Qty: 1 | 5176 |
|
$2.0200 / $2.5300 | Buy Now |
|
|
Win Source Electronics | IC SWITCH QUAD SPST 16DIP | 600 |
|
$3.1289 / $4.6928 | Buy Now |
Part Details for ADG201AKN
ADG201AKN CAD Models
ADG201AKN Part Data Attributes
|
|
ADG201AKN
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG201AKN
Analog Devices Inc
60 Ohm, Quad SPST Switch
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | DIP | |
| Package Description | PLASTIC, DIP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | N-16 | |
| Reach Compliance Code | not_compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPST | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e0 | |
| Length | 19.055 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Normal Position | NC | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 80 dB | |
| On-state Resistance Match-Nom | 5 Ω | |
| On-state Resistance-Max (Ron) | 90 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.32 mm | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Switch-off Time-Max | 250 ns | |
| Switch-on Time-Max | 300 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7.62 mm |
Alternate Parts for ADG201AKN
This table gives cross-reference parts and alternative options found for ADG201AKN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADG201AKN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADG201AKNZ | Analog Devices Inc | $4.5440 | 60 Ohm, Quad SPST Switch | ADG201AKN vs ADG201AKNZ |
| ADG201ATQ/883 | Analog Devices Inc | Check for Price | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERDIP-16, Multiplexer or Switch | ADG201AKN vs ADG201ATQ/883 |
| ADG201ATQ/883B | Analog Devices Inc | Check for Price | IC 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERDIP-16, Multiplexer or Switch | ADG201AKN vs ADG201ATQ/883B |
ADG201AKN Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by VEE, and then the logic inputs. This ensures proper device operation and prevents latch-up.
-
To ensure the switches are properly turned off during power-down, it is recommended to pull the logic inputs low before removing power from VCC and VEE.
-
The maximum voltage that can be applied to the analog inputs of the ADG201AKN is VCC + 0.3V, but it is recommended to keep the voltage within the supply rails (VCC and VEE) to ensure proper device operation.
-
Yes, the ADG201AKN can be used as a multiplexer or demultiplexer. The device can be configured to connect one of multiple inputs to a single output (multiplexer) or to connect a single input to one of multiple outputs (demultiplexer).
-
To minimize power consumption, it is recommended to reduce the supply voltage (VCC) to the minimum required for the application, and to minimize the frequency of switching operations.
