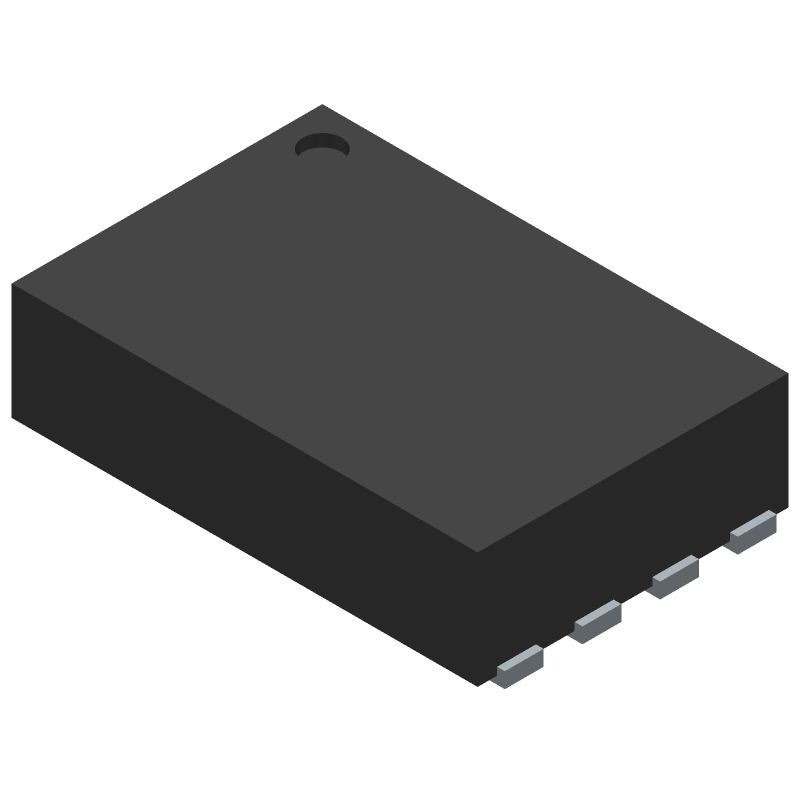

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADG1401BCPZ-REEL7 by Analog Devices Inc
Results Overview of ADG1401BCPZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Communication and Networking
Automotive
ADG1401BCPZ-REEL7 Information
ADG1401BCPZ-REEL7 by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADG1401BCPZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
72AK7935
|
Newark | Analogue Sw, 1Ch, Spst-Nc, Lfcsp-Wd-Ep-8 Rohs Compliant: Yes |Analog Devices ADG1401BCPZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3333 |
|
$3.9400 / $6.4500 | Buy Now |
|
DISTI #
ADG1401BCPZ-REEL7CT-ND
|
DigiKey | IC SW SPST-NCX1 1.3OHM 8LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2955 In Stock |
|
$2.3000 / $6.0300 | Buy Now |
|
DISTI #
584-ADG1401BCPZ-R7
|
Mouser Electronics | Analog Switch ICs 1 ? On Resistance, 15 V/+12 V/ 5 V, iCMOS SPST Switches RoHS: Compliant | 928 |
|
$2.3000 / $5.5900 | Buy Now |
|
DISTI #
V72:2272_06218580
|
Arrow Electronics | Analog Switch Single SPST 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2227 Container: Cut Strips | Americas - 9 |
|
$2.4700 | Buy Now |
|
|
Analog Devices Inc | 2.5ohm Max Ron ±15V/+12V/+5V i Min Qty: 1 Package Multiple: 3000 | 8000 |
|
$2.3000 / $6.0300 | Buy Now |
|
DISTI #
26617705
|
Verical | Analog Switch Single SPST 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 6000 |
|
$2.3145 | Buy Now |
|
DISTI #
63331035
|
Verical | Analog Switch Single SPST 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2227 | Americas - 9 |
|
$2.4700 | Buy Now |
|
|
Win Source Electronics | 1 Ω On Resistance, ±15 V/+12 V/±5 V iCMOS SPST Switches | IC SWITCH SPST 1OHM RON 8LFCSP | 10000 |
|
$2.4525 / $3.6786 | Buy Now |
Part Details for ADG1401BCPZ-REEL7
ADG1401BCPZ-REEL7 CAD Models
ADG1401BCPZ-REEL7 Part Data Attributes
|
|
ADG1401BCPZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG1401BCPZ-REEL7
Analog Devices Inc
1 Ω On Resistance, ±15 V/+12 V/±5 V, iCMOS SPST Switches
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | 3 X 2 MM, ROHS COMPLIANT, LFCSP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CP-8-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPST | |
| JESD-30 Code | R-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -16.5 V | |
| Neg Supply Voltage-Min (Vsup) | -4.5 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Normal Position | NO | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Off-state Isolation-Nom | 58 dB | |
| On-state Resistance-Max (Ron) | 2.7 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 16.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Switch-on Time-Max | 375 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
ADG1401BCPZ-REEL7 Frequently Asked Questions (FAQ)
-
The recommended PCB layout for the ADG1401BCPZ-REEL7 is to keep the device away from high-frequency noise sources and to use a ground plane to reduce electromagnetic interference. A 10-15mm clearance between the device and the PCB edge is recommended to reduce capacitive coupling.
-
The ADG1401BCPZ-REEL7 is designed to operate from -40°C to 125°C, making it suitable for high-temperature applications. However, it's recommended to derate the device's voltage and current ratings at high temperatures to ensure reliable operation.
-
The ADG1401BCPZ-REEL7 is designed for low-frequency applications (up to 100 kHz). For high-frequency applications, it's recommended to use a device with a higher bandwidth, such as the ADG1402BCPZ-REEL7, which has a bandwidth of up to 1 MHz.
-
The ADG1401BCPZ-REEL7 has a built-in overvoltage protection circuit that can withstand up to 20V without damage. However, prolonged exposure to overvoltage conditions may affect the device's performance and lifespan.
-
The ADG1401BCPZ-REEL7 is designed to operate in environments with moderate EMI levels. However, in high-EMI environments, it's recommended to use a shielded enclosure and to follow proper PCB layout and grounding techniques to minimize EMI effects.
