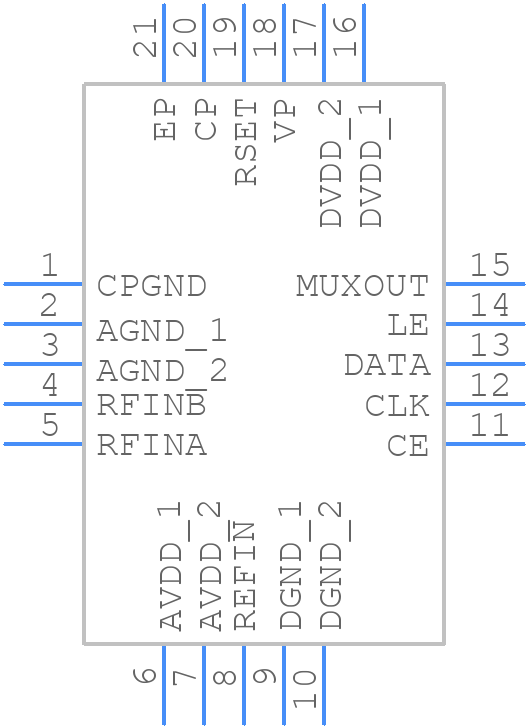

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADF4002BCPZ-RL by Analog Devices Inc
Results Overview of ADF4002BCPZ-RL by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
ADF4002BCPZ-RL Information
ADF4002BCPZ-RL by Analog Devices Inc is a PLL or Frequency Synthesis Circuit.
PLL or Frequency Synthesis Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADF4002BCPZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADF4002BCPZ-RLCT-ND
|
DigiKey | IC CLK/FREQ SYNTH 20LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1987 In Stock |
|
$2.7000 / $6.7700 | Buy Now |
|
DISTI #
584-ADF4002BCPZ-R
|
Mouser Electronics | Phase Locked Loops - PLL Low Frequency PLL Clock Source RoHS: Compliant | 0 |
|
$2.7500 | Order Now |
|
DISTI #
V36:1790_06218254
|
Arrow Electronics | Clock Generator 5MHz to 400MHz-IN 20-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks Date Code: 2512 | Americas - 5000 |
|
$6.7565 | Buy Now |
|
|
Analog Devices Inc | Low Frequency PLL Clock Source Min Qty: 1 Package Multiple: 5000 | 5398 |
|
$2.0500 / $6.7700 | Buy Now |
|
DISTI #
32707058
|
Verical | Clock Generator 5MHz to 400MHz-IN 20-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | Americas - 5000 |
|
$2.7170 | Buy Now |
|
DISTI #
88154036
|
Verical | Clock Generator 5MHz to 400MHz-IN 20-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Date Code: 2512 | Americas - 5000 |
|
$6.7565 | Buy Now |
|
|
Cytech Systems Limited | IC CLK/FREQ SYNTH 20LFCSP | 5000 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 4530 |
|
RFQ |
Part Details for ADF4002BCPZ-RL
ADF4002BCPZ-RL CAD Models
ADF4002BCPZ-RL Part Data Attributes
|
|
ADF4002BCPZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADF4002BCPZ-RL
Analog Devices Inc
Phase Detector / PLL Frequency Synthesizer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | ROHS COMPLIANT, MO-220VGGD-1, LFCSP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | CP-20-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | PLL FREQUENCY SYNTHESIZER | |
| JESD-30 Code | S-XQCC-N20 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC20,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max (Isup) | 6 mA | |
| Supply Voltage-Max (Vsup) | 3.3 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 4 mm |
ADF4002BCPZ-RL Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital sections separate, and use a star-grounding configuration to minimize noise.
-
Use a combination of ceramic and electrolytic capacitors to bypass the device. A 0.1uF ceramic capacitor should be placed as close as possible to the VCC pin, and a 10uF electrolytic capacitor should be placed in parallel to filter out low-frequency noise.
-
The ADF4002BCPZ-RL can handle clock frequencies up to 400MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
-
The ADF4002BCPZ-RL can be programmed using a 3-wire serial interface. The device requires a 24-bit programming word that defines the desired frequency, phase detector frequency, and other parameters. Refer to the datasheet for the programming protocol and register definitions.
-
The typical power consumption of the ADF4002BCPZ-RL is around 350mW when operating at a supply voltage of 3.3V and a clock frequency of 100MHz. However, the actual power consumption may vary depending on the specific application and operating conditions.
