Switches / DIP Switches / ADF1004
Datasheets
ADF1004 by: TE Connectivity

Slide Dip Switch, 10 Switches, SPST, Off-on, Latched, 0.1A, 24VDC, 20 PCB Hole Cnt, Wire Terminal, Through Hole-right Angle

Part Details for ADF1004 by TE Connectivity

Results Overview of ADF1004 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Electronic Manufacturing Telecommunications Automotive

ADF1004 Information

ADF1004 by TE Connectivity is a DIP Switch.
DIP Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for ADF1004

Part # Distributor Description Stock Price Buy
DISTI # 35AC0028
Newark Adf1004=Dip Swt, flush, thru/Hl |Alcoswitch Te Connectivity ADF1004 RoHS: Not Compliant Min Qty: 150 Package Multiple: 1 Date Code: 0 Container: Bulk 2396
  • 1 $2.3500
$2.3500 Buy Now
DISTI # 1-1825002-7
Avnet Americas Switch DIP OFF ON SPST 10 Flush Slide 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube - Rail/Tube (Alt: 1-1825002-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 32 Weeks, 2 Days Container: Tube 0
  • 3,000 $0.9684
  • 6,000 $0.7623
  • 12,000 $0.6624
  • 18,000 $0.6515
  • 24,000 $0.6405
$0.6405 / $0.9684 Buy Now
DISTI # 506-ADF1004
Mouser Electronics DIP Switches / SIP Switches 10 POS FLUSH ACT RoHS: Compliant 0
  • 3,000 $0.9680
$0.9680 Order Now
Onlinecomponents.com DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard RoHS: Compliant 2776 In Stock
  • 30 $2.1080
  • 255 $2.0760
  • 510 $2.0450
  • 750 $2.0140
  • 1,500 $1.2400
  • 2,250 $0.9810
  • 3,000 $0.9620
$0.9620 / $2.1080 Buy Now
DISTI # 16502513
Verical Switch DIP OFF ON SPST 10 Flush Slide 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube RoHS: Compliant Min Qty: 60 Package Multiple: 15 Americas - 2385
  • 15 $1.1900
  • 300 $1.1700
  • 600 $1.1500
  • 1,200 $1.1300
$1.1300 / $1.1900 Buy Now
DISTI # 51483464
Verical Switch DIP OFF ON SPST 10 Flush Slide 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube RoHS: Compliant Min Qty: 30 Package Multiple: 15 Date Code: 1606 Americas - 375
  • 30 $2.7430
  • 255 $2.7040
  • 510 $2.6650
  • 750 $2.6130
  • 1,500 $1.6120
$1.6120 / $2.7430 Buy Now
DISTI # 1-1825002-7
TME Switch: DIP-SWITCH, Poles number: 10, OFF-ON, 0.025A/24VDC, Pos: 2 Min Qty: 60 0
  • 60 $1.9600
$1.9600 RFQ
DISTI # 000000000002659160
Sager DIP Switches / SIP Switches 10 POS FLUSH ACT Min Qty: 3000 0
  • 3,000 $1.0800
  • 9,000 $0.8451
  • 18,000 $0.7186
$0.7186 / $1.0800 Buy Now
Master Electronics DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard RoHS: Compliant 2776 In Stock
  • 30 $2.1080
  • 255 $2.0760
  • 510 $2.0450
  • 750 $2.0140
  • 1,500 $1.2400
  • 2,250 $0.9810
  • 3,000 $0.9620
$0.9620 / $2.1080 Buy Now

Part Details for ADF1004

ADF1004 CAD Models

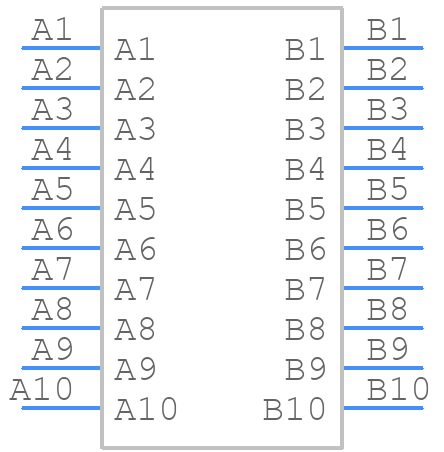

  • Part Symbol

    Part Symbol

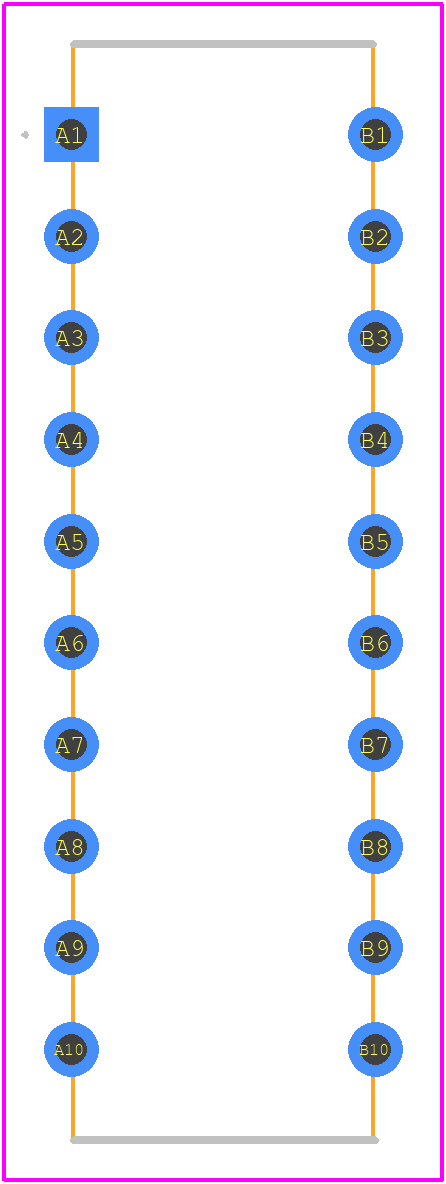

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADF1004 Part Data Attributes

Parametric Data
ADF1004 TE Connectivity
Buy Now Datasheet
Compare Parts:
ADF1004 TE Connectivity Slide Dip Switch, 10 Switches, SPST, Off-on, Latched, 0.1A, 24VDC, 20 PCB Hole Cnt, Wire Terminal, Through Hole-right Angle
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
Factory Lead Time 32 Weeks, 2 Days
Samacsys Manufacturer TE Connectivity
Actuator Color WHITE
Actuator Material POLYAMIDE6T
Actuator Type SLIDE TYPE
Additional Feature APPROVAL: UL
Body Breadth 7.5 mm
Body Color BLACK
Body Height 4 mm
Body Length or Diameter 27.4 mm
Center Contact Material COPPER ALLOY
Center Contact Plating GOLD OVER NICKEL
Contact Current(AC)-Max 1 A
Contact Current(DC)-Max 0.1 A
Contact (DC) Max Rating R Load 0.1A@24VDC
Contact Function OFF-ON
Contact Resistance 0.05 mΩ
Contact Voltage(DC)-Max 24 V
Dielectric Withstand Volts 300VAC V
Electrical Life 1000 Cycle(s)
End Contact Material COPPER ALLOY
End Contact Plating GOLD OVER NICKEL
Housing Material POLYPHENYLENE SULPHIDE
Insulation Resistance 100000000 Ω
Insulator Material POLYPHENYLENE SULPHIDE
Mounting Feature THROUGH HOLE-RIGHT ANGLE
Number of Positions 10
Number of Switch Sections 10
Operating Temperature-Max 85 °C
Operating Temperature-Min -30 °C
PCB Hole Count 20
Packing Method TUBE
Surface Mount NO
Switch Action LATCHED
Switch Function SPST
Switch Type SLIDE DIP SWITCH
Terminal Length 0.157 inch
Terminal Material COPPER ALLOY
Termination Type SOLDER

Alternate Parts for ADF1004

This table gives cross-reference parts and alternative options found for ADF1004. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADF1004, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
78B12 Grayhill Inc Check for Price Slide Dip Switch, 12 Switches, SPST, On-off, Latched, 0.15A, 30VDC, 24 PCB Hole Cnt, Solder Terminal, Through Hole-straight ADF1004 vs 78B12
KAR08LGGR E-Switch Inc Check for Price Piano Dip Switch, 8 Switches, SPST, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight, ADF1004 vs KAR08LGGR
KAR05LGGT E-Switch Inc Check for Price Piano Dip Switch, 5 Switches, SPST, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight, ADF1004 vs KAR05LGGT
DBP9103 knitter-switch Check for Price Piano Dip Switch, 3 Switches, SPST, Vertical, 0.025A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight ADF1004 vs DBP9103
78RB12 Grayhill Inc Check for Price Slide Dip Switch, 12 Switches, SPST, On-off, Latched, 0.15A, 30VDC, 24 PCB Hole Cnt, Solder Terminal, Through Hole-straight ADF1004 vs 78RB12
418317270905 Wurth Elektronik Check for Price Piano Dip Switch, 5 Switches, SPST, Vertical, 0.025A, 24VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight ADF1004 vs 418317270905
KAR04LGGR E-Switch Inc Check for Price Piano Dip Switch, 4 Switches, SPST, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight, ADF1004 vs KAR04LGGR
SBS5005TG knitter-switch Check for Price Slide Switch, 5 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight ADF1004 vs SBS5005TG
A6S-7102 OMRON Corporation Check for Price Slide Dip Switch, 7 Switches, 7PST, On-off, Latched, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight ADF1004 vs A6S-7102
KAC04LGGT E-Switch Inc Check for Price Piano Dip Switch, 4 Switches, SPST, 0.025A, 24VDC, Solder Terminal, Surface Mount-right Angle ADF1004 vs KAC04LGGT
