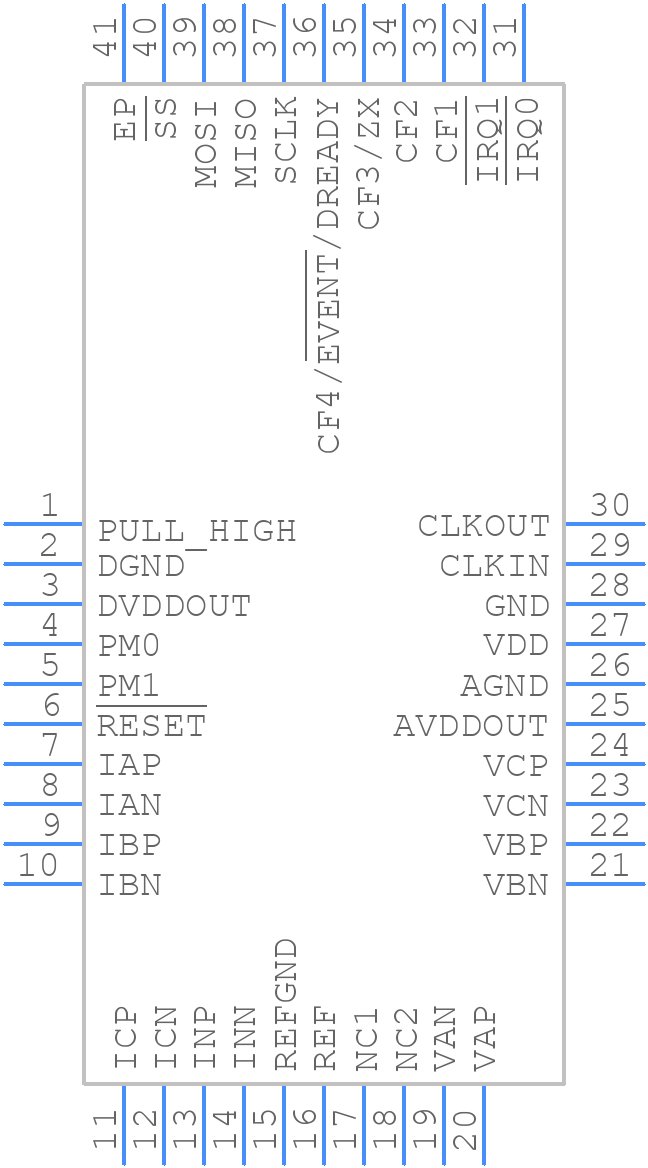

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADE9078ACPZ-RL by Analog Devices Inc
Results Overview of ADE9078ACPZ-RL by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
ADE9078ACPZ-RL Information
ADE9078ACPZ-RL by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADE9078ACPZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4626
|
Newark | Energy Metering Ic, 1.6Khz, Lfcsp-Ep-40, Ic Function:Polyphase Energy Metering Ic, Supply Voltage Min:2.7V, Supply Voltage Max:3.63V, Ic Package Type:Lfcsp-Ep, No. Of Pins:40Pins, Operating Temperature Min:-40°C, Product Range:- Rohs Compliant: Yes |Analog Devices ADE9078ACPZ-RL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1550 |
|
$9.8900 / $16.2900 | Buy Now |
|
DISTI #
505-ADE9078ACPZ-RLCT-ND
|
DigiKey | IC AFE 7 CHAN 24BIT 40LFCSP-WQ Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3583 In Stock |
|
$9.8875 / $17.8600 | Buy Now |
|
DISTI #
584-ADE9078ACPZ-RL
|
Mouser Electronics | Analog Front End - AFE Polyphase Energy Metering AFE RoHS: Compliant | 2450 |
|
$9.8800 / $17.8600 | Buy Now |
|
DISTI #
V72:2272_16600805
|
Arrow Electronics | Energy Measurement 40-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2223 Container: Cut Strips | Americas - 1415 |
|
$10.1430 / $10.7790 | Buy Now |
|
|
Analog Devices Inc | Polyphase Energy Metering AFE Min Qty: 1 Package Multiple: 2500 | 817 |
|
$5.5500 / $17.8600 | Buy Now |
|
DISTI #
62361392
|
Verical | Energy Measurement 40-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2223 | Americas - 1415 |
|
$10.1430 / $10.7790 | Buy Now |
|
DISTI #
ADE9078ACPZ-RL
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 2500 | 0 |
|
$10.3400 | Buy Now |
|
|
LCSC | 2.7V3.63V LFCSP-40 Analog Front End (AFE) ROHS | 79 |
|
$2.3153 / $3.9122 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 1757 |
|
RFQ |
Part Details for ADE9078ACPZ-RL
ADE9078ACPZ-RL CAD Models
ADE9078ACPZ-RL Part Data Attributes
|
|
ADE9078ACPZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADE9078ACPZ-RL
Analog Devices Inc
High Performance Polyphase Energy Measurement IC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-40 | |
| Pin Count | 40 | |
| Manufacturer Package Code | CP-40-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2016-08-11 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | S-XQCC-N40 | |
| JESD-609 Code | e3 | |
| Length | 6 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 40 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 3.63 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6 mm |
ADE9078ACPZ-RL Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
-
Calibration involves adjusting the internal gain and offset registers to compensate for device variations. Use the provided calibration software or write a custom calibration routine using the device's registers. Refer to the application note AN-1391 for more information.
-
The maximum allowed voltage on the analog input pins is 5.5V. Exceeding this voltage can damage the device. Ensure that the input signals are properly attenuated or clamped to prevent overvoltage.
-
Use a metal shield around the device, keep the PCB layout compact, and use a common-mode choke on the power supply lines. Ensure that the device is properly grounded and that the analog and digital circuits are separated.
-
The recommended clock frequency is 10 MHz, but the device can operate with clock frequencies between 5 MHz and 20 MHz. Ensure that the clock signal is clean and stable to prevent jitter and noise.
