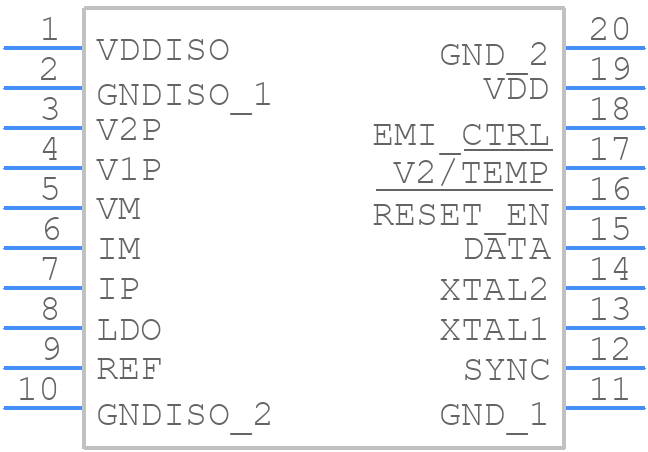

Part Symbol
-

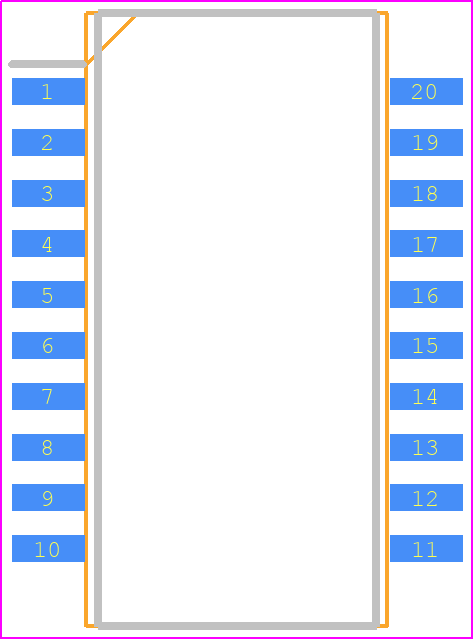

Footprint
-

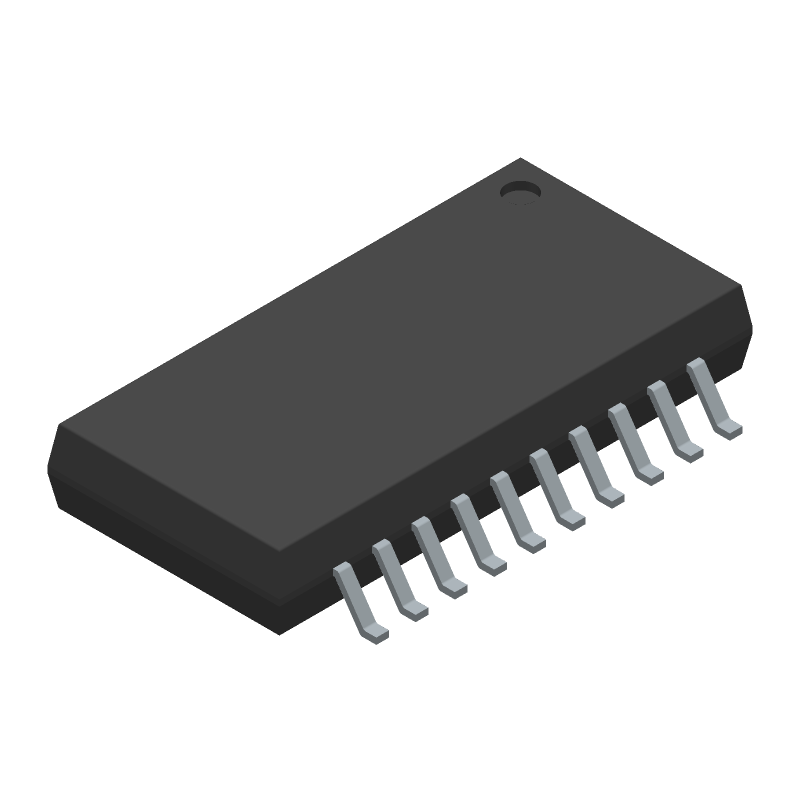

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADE7932ARIZ by Analog Devices Inc
Results Overview of ADE7932ARIZ by Analog Devices Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADE7932ARIZ Information
ADE7932ARIZ by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADE7932ARIZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4296491
|
Farnell | ADC, 24BIT, 8KSPS, I2C, SPI, SOIC-20 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 62 |
|
$8.3712 / $15.4289 | Buy Now |
|
DISTI #
505-ADE7932ARIZ-ND
|
DigiKey | IC ADC/ENERGY MEAS 20SOIC Min Qty: 1 Lead time: 39 Weeks Container: Tube |
3 In Stock |
|
$7.9750 / $15.1600 | Buy Now |
|
DISTI #
584-ADE7932ARIZ
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized 2-Channel,Isolated,Sigma Delta ADC RoHS: Compliant | 73 |
|
$8.2800 / $13.9900 | Buy Now |
|
DISTI #
V36:1790_06218215
|
Arrow Electronics | Energy Measurement 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 62 Package Multiple: 31 Lead time: 10 Weeks Date Code: 2244 | Americas - 31 |
|
$7.4430 | Buy Now |
|
|
Analog Devices Inc | 2-Channel,Isolated,Sigma Delta Package Multiple: 31 | 2202 |
|
$6.3800 / $15.1600 | Buy Now |
|
DISTI #
26647812
|
Verical | Energy Measurement 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 62 Package Multiple: 62 | Americas - 2170 |
|
$8.0252 | Buy Now |
|
DISTI #
69122550
|
Verical | Energy Measurement 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 31 Package Multiple: 31 Date Code: 2244 | Americas - 31 |
|
$11.1919 / $11.5012 | Buy Now |
|
DISTI #
86946995
|
Verical | Energy Measurement 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 23 Package Multiple: 23 Date Code: 2443 | Americas - 23 |
|
$17.2377 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 12 |
|
$9.1125 / $13.5000 | Buy Now |
|
|
Quest Components | 9 |
|
$13.5000 / $18.0000 | Buy Now |
Part Details for ADE7932ARIZ
ADE7932ARIZ CAD Models
ADE7932ARIZ Part Data Attributes
|
|
ADE7932ARIZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADE7932ARIZ
Analog Devices Inc
2-Channel, Isolated, Sigma Delta ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SOIC-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | RI-20-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 15.3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.64 mm | |
| Supply Voltage-Max (Vsup) | 3.63 V | |
| Supply Voltage-Min (Vsup) | 2.97 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | BCDMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
ADE7932ARIZ Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital signals separate, and use shielded cables for the current sensors. Route the high-frequency signals away from the analog signals.
-
Calibration involves adjusting the gain and offset of the ADC to match the current sensor's output. Use the onboard calibration registers to adjust the gain and offset. Refer to the application note AN-1070 for a detailed calibration procedure.
-
The maximum allowable voltage on the current sense inputs is ±250 mV. Exceeding this voltage may damage the device.
-
Yes, the ADE7932ARIZ can be used for 3-phase power measurement. Use three separate devices, one for each phase, and synchronize the measurements using the SYNC pin.
-
Use a high-accuracy current sensor and ensure that the device is calibrated over the operating temperature range. Use the onboard temperature sensor to compensate for temperature effects.
