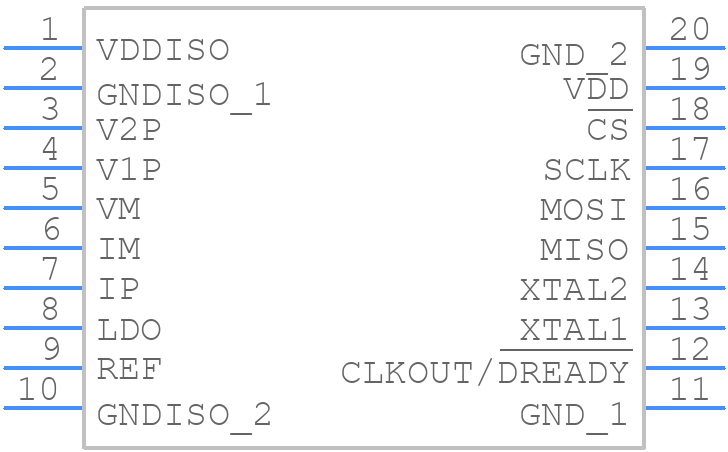

Part Symbol
-
Footprint
-

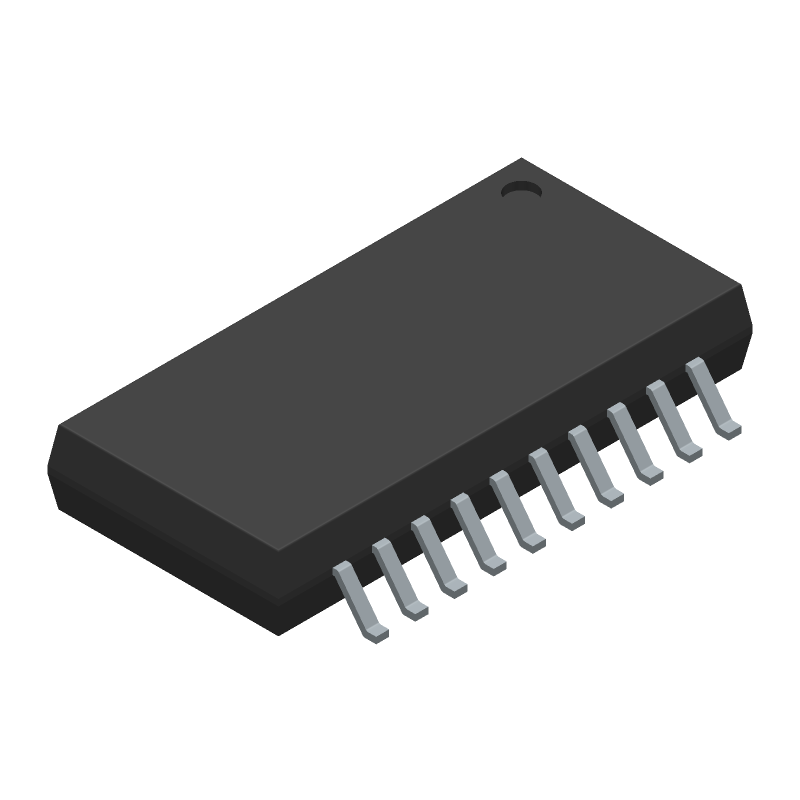

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADE7913ARIZ-RL by Analog Devices Inc
Results Overview of ADE7913ARIZ-RL by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADE7913ARIZ-RL Information
ADE7913ARIZ-RL by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADE7913ARIZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4620
|
Newark | Adc, 24Bit, Wsoic-20, -40 To 85Deg C, Resolution (Bits):24Bit, Sampling Rate:-, Input Channel Type:Pseudo Differential, Single Ended, Data Interface:4 Wire, Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:2.97V Rohs Compliant: Yes |Analog Devices ADE7913ARIZ-RL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1706 |
|
$8.4000 / $14.6200 | Buy Now |
|
DISTI #
ADE7913ARIZ-RLCT-ND
|
DigiKey | IC ADC/ENERGY MEAS 24BIT 20SOIC Min Qty: 1 Lead time: 39 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4176 In Stock |
|
$8.4000 / $15.7700 | Buy Now |
|
DISTI #
584-ADE7913ARIZ-RL
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized 3-Channel,Isolated,Sigma Delta ADC w/SPI RoHS: Compliant | 278 |
|
$9.0200 / $14.6600 | Buy Now |
|
|
Analog Devices Inc | 3-Channel,Isolated,Sigma Delta Min Qty: 1 Package Multiple: 1000 | 836 |
|
$8.4000 / $15.7700 | Buy Now |
|
|
Cytech Systems Limited | IC ADC/ENERGY MEAS 24BIT 20SOIC | 3000 |
|
RFQ | |
|
|
LCSC | SOIC-20-300mil Isolated ADCs with power ROHS | 50 |
|
$5.2675 / $7.6281 | Buy Now |
|
|
Vyrian | Converters | 1866 |
|
RFQ | |
|
|
Win Source Electronics | IC ADC 24BIT 3CH 20SOIC | 3456 |
|
$5.7766 / $8.6648 | Buy Now |
Part Details for ADE7913ARIZ-RL
ADE7913ARIZ-RL CAD Models
ADE7913ARIZ-RL Part Data Attributes
|
|
ADE7913ARIZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADE7913ARIZ-RL
Analog Devices Inc
3-Channel, Isolated, Sigma Delta ADC with SPI
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | RI-20-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 0.5 V | |
| Analog Input Voltage-Min | -0.5 V | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 15.3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 3 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.64 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
