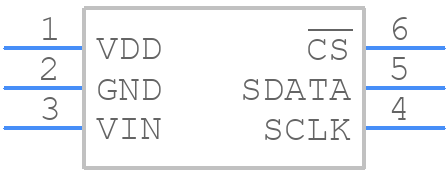

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADCS7477AIMF/NOPB by Texas Instruments
Results Overview of ADCS7477AIMF/NOPB by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADCS7477AIMF/NOPB Information
ADCS7477AIMF/NOPB by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADCS7477AIMF/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADCS7477AIMF/NOPBCT-ND
|
DigiKey | IC ADC 10BIT SAR SOT23-6 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3724 In Stock |
|
$1.8150 / $3.6700 | Buy Now |
|
DISTI #
926-ADCS7477AIMFNOPB
|
Mouser Electronics | Analog to Digital Converters - ADC 1MSPS 12-/10-/8B ADC A 926-ADCS7477AIMFXNPB RoHS: Compliant | 287 |
|
$1.8100 / $3.4000 | Buy Now |
|
DISTI #
V72:2272_07222334
|
Arrow Electronics | 1-Channel Single ADC SAR 1Msps 10-bit Serial 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2325 Container: Cut Strips | Americas - 550 |
|
$1.8620 / $2.5290 | Buy Now |
|
|
Rochester Electronics | ADCS7477 1MSPS, 12-/10-/8-Bit A/D Converters in SOT-23 & LLP RoHS: Compliant Status: Active Min Qty: 1 | 20 |
|
$1.5200 / $1.9000 | Buy Now |
|
|
LCSC | 10Bit 2.7V5.25V 1MHz SPI SOT-23-6 Analog to Digital Converters (ADC) ROHS | 50 |
|
$1.3008 / $3.9420 | Buy Now |
|
|
Win Source Electronics | IC ADC 10BIT 1MSPS SOT-23-6 | 9750 |
|
$1.4641 / $1.8912 | Buy Now |
Part Details for ADCS7477AIMF/NOPB
ADCS7477AIMF/NOPB CAD Models
ADCS7477AIMF/NOPB Part Data Attributes
|
|
ADCS7477AIMF/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADCS7477AIMF/NOPB
Texas Instruments
1MSPS, 10-Bit A/D Converters in SOT-23 & LLP 6-SOT-23 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 1 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Linearity Error-Max (EL) | 0.0684% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 1 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.45 mm | |
| Supply Current-Max | 3.5 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
Alternate Parts for ADCS7477AIMF/NOPB
This table gives cross-reference parts and alternative options found for ADCS7477AIMF/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADCS7477AIMF/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADCS7477AIMF/NOPB | National Semiconductor Corporation | Check for Price | A/D Converter, 10-Bit, 1 Func, 1 Channel, CMOS, PDSO6 | ADCS7477AIMF/NOPB vs ADCS7477AIMF/NOPB |
