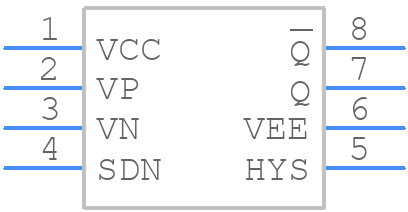

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADCMP609BRMZ-REEL7 by Analog Devices Inc
Results Overview of ADCMP609BRMZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
ADCMP609BRMZ-REEL7 Information
ADCMP609BRMZ-REEL7 by Analog Devices Inc is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADCMP609BRMZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4610
|
Newark | Comparator, Msop-8, -40 To 125Deg C, Comparator Type:Low Power, No. Of Channels:1Channels, Response Time/Propogation Delay:40Ns, Supply Voltage Range:2.5V To 5.5V, Ic Case/Package:Msop, No. Of Pins:8Pins, Product Range:- Rohs Compliant: Yes |Analog Devices ADCMP609BRMZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 142 |
|
$1.3900 / $2.8400 | Buy Now |
|
DISTI #
ADCMP609BRMZ-REEL7CT-ND
|
DigiKey | IC COMPARATOR 1 GEN PUR 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
277 In Stock |
|
$1.3625 / $4.1300 | Buy Now |
|
DISTI #
584-ADCMP609BRMZR7
|
Mouser Electronics | Analog Comparators Rail to rail,sing chan, TTL/CMOS Compara RoHS: Compliant | 1179 |
|
$1.3600 / $3.0900 | Buy Now |
|
DISTI #
V72:2272_06217990
|
Arrow Electronics | Comparator Single R-R I/P 5.5V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2424 Container: Cut Strips | Americas - 1000 |
|
$1.3980 / $2.1990 | Buy Now |
|
|
Analog Devices Inc | Rail to rail,sing chan, TTL/CM Min Qty: 1 Package Multiple: 1000 | 56 |
|
$1.3625 / $4.1300 | Buy Now |
|
DISTI #
87004270
|
Verical | Comparator Single R-R I/P 5.5V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2424 | Americas - 1000 |
|
$1.3980 / $2.1990 | Buy Now |
Part Details for ADCMP609BRMZ-REEL7
ADCMP609BRMZ-REEL7 CAD Models
ADCMP609BRMZ-REEL7 Part Data Attributes
|
|
ADCMP609BRMZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADCMP609BRMZ-REEL7
Analog Devices Inc
Rail-to-Rail, Fast, Low Power 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | ROHS COMPLIANT, MO-187AA, MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | COMPARATOR | |
| Average Bias Current-Max (IIB) | 0.4 µA | |
| Bias Current-Max (IIB) @25C | 0.4 µA | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 1.1 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 3 mm |
Alternate Parts for ADCMP609BRMZ-REEL7
This table gives cross-reference parts and alternative options found for ADCMP609BRMZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADCMP609BRMZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADCMP609BRMZ | Analog Devices Inc | $1.7458 | Rail-to-Rail, Fast, Low Power 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator | ADCMP609BRMZ-REEL7 vs ADCMP609BRMZ |
| ADCMP609BRMZ-REEL | Analog Devices Inc | Check for Price | Rail-to-Rail, Fast, Low Power 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator | ADCMP609BRMZ-REEL7 vs ADCMP609BRMZ-REEL |
ADCMP609BRMZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADCMP609 involves keeping the input traces as short as possible, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
The ADCMP609 requires a clean and stable power supply. Use a low-ESR capacitor (e.g., 0.1 μF) to decouple the power pins, and consider adding a ferrite bead or a pi-filter to reduce noise.
-
The recommended input common-mode voltage range for the ADCMP609 is between 1.5 V and 3.5 V. Operating outside this range may affect the comparator's performance and accuracy.
-
To minimize hysteresis in the ADCMP609, use a low-impedance input source, minimize input capacitance, and avoid using long input traces. You can also consider adding a small capacitor (e.g., 10 pF) between the input pins to reduce hysteresis.
-
The maximum allowable input voltage for the ADCMP609 is 5.5 V. Exceeding this voltage may damage the device.
