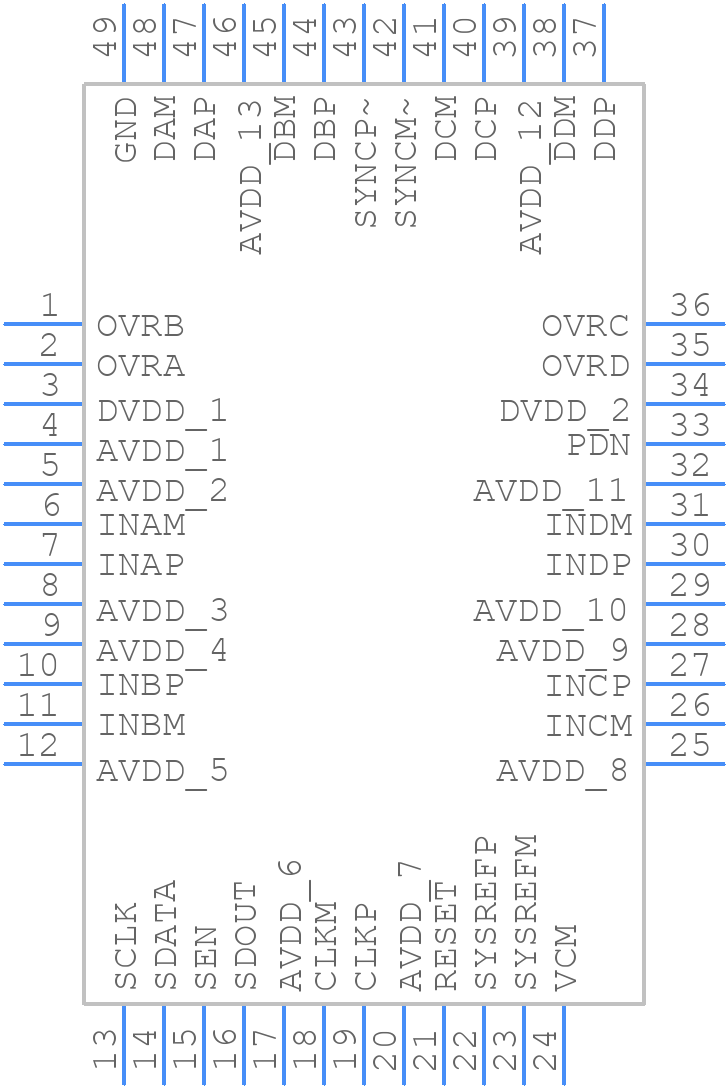

Part Symbol
-

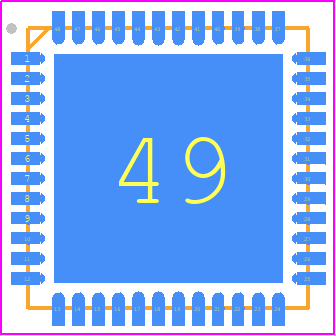

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC34J45IRGZ25 by Texas Instruments
Results Overview of ADC34J45IRGZ25 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADC34J45IRGZ25 Information
ADC34J45IRGZ25 by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC34J45IRGZ25
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-ADC34J45IRGZ25-ND
|
DigiKey | IC ADC 14BIT PIPELINED 48VQFN Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
25 In Stock |
|
$132.6400 | Buy Now |
|
DISTI #
296-38574-1-ND
|
DigiKey | IC ADC 14BIT PIPELINED 48VQFN Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
9 In Stock |
|
$141.4700 / $163.0240 | Buy Now |
|
DISTI #
85965716
|
Verical | 4-Channel Quad ADC Pipelined 160Msps 14-bit JESD204B 48-Pin VQFN EP RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 1601 | Americas - 25 |
|
$140.3000 / $159.4250 | Buy Now |
|
|
Rochester Electronics | ADC, Proprietary Method, 14-Bit, 1 Func, 4 Channel, Serial Access, PQCC48 RoHS: Compliant Status: Obsolete Min Qty: 1 | 25 |
|
$112.2400 / $127.5400 | Buy Now |
Part Details for ADC34J45IRGZ25
ADC34J45IRGZ25 CAD Models
ADC34J45IRGZ25 Part Data Attributes
|
|
ADC34J45IRGZ25
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC34J45IRGZ25
Texas Instruments
Quad-Channel, 14-Bit, 160-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | GREEN, PLASTIC, VQFN-48 | |
| Pin Count | 48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.C.3 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | -2 V | |
| Conversion Time-Max | 0.00625 µs | |
| Converter Type | ADC, PROPRIETARY METHOD | |
| JESD-30 Code | S-PQCC-N48 | |
| JESD-609 Code | e4 | |
| Length | 8 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 160 MHz | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 8 mm |
Alternate Parts for ADC34J45IRGZ25
This table gives cross-reference parts and alternative options found for ADC34J45IRGZ25. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC34J45IRGZ25, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC34J42IRGZT | Texas Instruments | $30.0403 | Quad-Channel, 14-Bit, 50-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC34J45IRGZ25 vs ADC34J42IRGZT |
| ADC34J43IRGZT | Texas Instruments | $44.5562 | Quad-Channel, 14-Bit, 80-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC34J45IRGZ25 vs ADC34J43IRGZT |
| ADC34J44IRGZT | Texas Instruments | $75.4653 | Quad-Channel, 14-Bit, 125-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC34J45IRGZ25 vs ADC34J44IRGZT |
| ADC34J45IRGZT | Texas Instruments | $77.8444 | Quad-Channel, 14-Bit, 160-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC34J45IRGZ25 vs ADC34J45IRGZT |
| ADC34J45IRGZR | Texas Instruments | Check for Price | Quad-Channel, 14-Bit, 160-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC34J45IRGZ25 vs ADC34J45IRGZR |
| ADC34J43IRGZR | Texas Instruments | Check for Price | Quad-Channel, 14-Bit, 80-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC34J45IRGZ25 vs ADC34J43IRGZR |
| PADC34J44IRGZT | Texas Instruments | Check for Price | 4-CH 14-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PQCC48, PLASTIC, VQFN-48 | ADC34J45IRGZ25 vs PADC34J44IRGZT |
| PADC34J45IRGZT | Texas Instruments | Check for Price | 4-CH 14-BIT PROPRIETARY METHOD ADC, SERIAL ACCESS, PQCC48, PLASTIC, VQFN-48 | ADC34J45IRGZ25 vs PADC34J45IRGZT |
| ADC34J42IRGZR | Texas Instruments | Check for Price | Quad-Channel, 14-Bit, 50-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC34J45IRGZ25 vs ADC34J42IRGZR |
ADC34J45IRGZ25 Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout guide in the ADC34J45IRGZ25 evaluation module user's guide, which includes guidelines for signal routing, grounding, and decoupling to minimize noise and ensure optimal performance.
-
The ADC34J45IRGZ25 has a built-in calibration feature that can be accessed through the SPI interface. The calibration process involves writing specific registers to adjust the ADC's offset and gain. Texas Instruments provides a calibration guide in the datasheet and application notes.
-
The ADC34J45IRGZ25 can operate at a maximum sampling rate of 250 MSPS, but this may require specific settings and configurations. The actual achievable sampling rate may be limited by the system's clock frequency, signal bandwidth, and other factors.
-
Metastability issues can occur when the ADC's output data is not stable due to internal clock domain crossings. To handle this, engineers can use synchronization techniques such as FIFOs or synchronizers to ensure data integrity, or implement error detection and correction mechanisms in their system design.
-
The power consumption of the ADC34J45IRGZ25 varies depending on the operating mode, sampling rate, and other factors. Texas Instruments provides power consumption estimates in the datasheet, but actual power consumption may vary depending on the system design and implementation.
