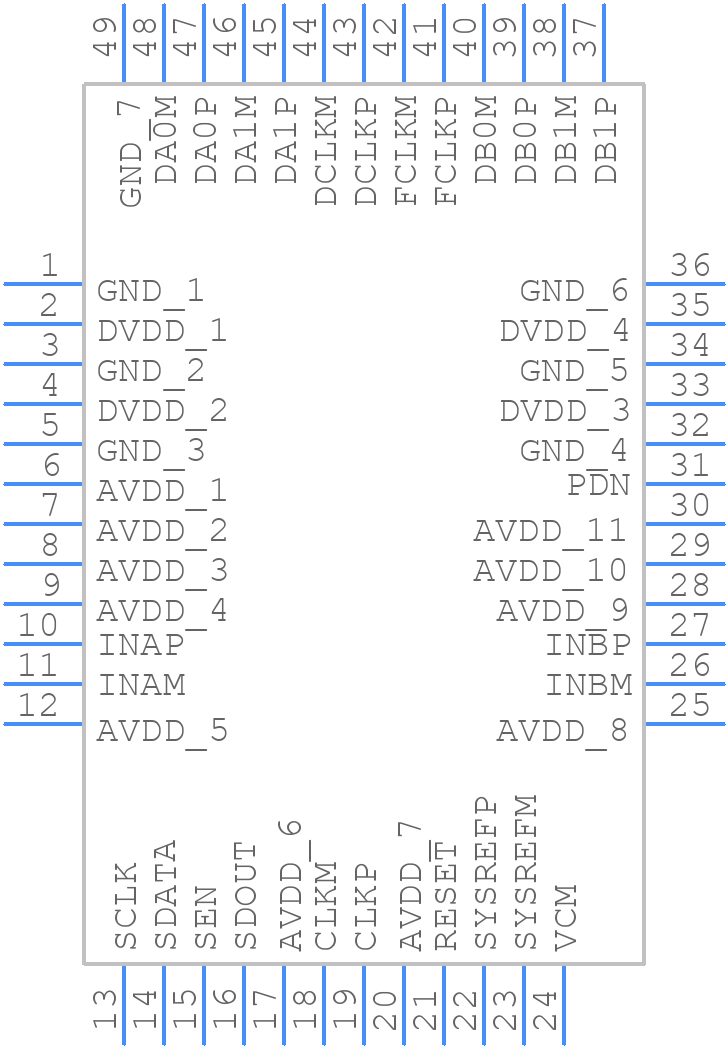

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC3242IRGZT by Texas Instruments
Results Overview of ADC3242IRGZT by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADC3242IRGZT Information
ADC3242IRGZT by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC3242IRGZT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-50873-1-ND
|
DigiKey | IC ADC 14BIT PIPELINED 48VQFN Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$27.8771 / $40.1300 | Buy Now |
|
DISTI #
595-ADC3242IRGZT
|
Mouser Electronics | Analog to Digital Converters - ADC Dual-Channel 14-Bit 50-MSPS Analog-to- A 595-ADC3242IRGZR RoHS: Compliant | 0 |
|
$27.8700 / $40.0700 | Order Now |
|
|
LCSC | 14Bit 1.7V1.9V 125MHz VQFN-48-EP(7x7) Analog to Digital Converters (ADC) ROHS | 58 |
|
$23.3807 / $24.2630 | Buy Now |
Part Details for ADC3242IRGZT
ADC3242IRGZT CAD Models
ADC3242IRGZT Part Data Attributes
|
|
ADC3242IRGZT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC3242IRGZT
Texas Instruments
Dual-Channel, 14-Bit, 50-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | VQFN-48 | |
| Pin Count | 48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991C3 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | Peak-to-peak input voltage range(V) : 2 | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | -2 V | |
| Converter Type | ADC, PROPRIETARY METHOD | |
| JESD-30 Code | S-PQCC-N48 | |
| JESD-609 Code | e4 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 50 MHz | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max | 81 mA | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm |
Alternate Parts for ADC3242IRGZT
This table gives cross-reference parts and alternative options found for ADC3242IRGZT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC3242IRGZT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC3243IRGZT | Texas Instruments | $26.3775 | Dual-Channel, 14-Bit, 80-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC3242IRGZT vs ADC3243IRGZT |
| ADC3244IRGZR | Texas Instruments | $29.1166 | Dual-channel 14-bit 125-MSPS analog-to-digital converter (ADC) 48-VQFN -40 to 85 | ADC3242IRGZT vs ADC3244IRGZR |
| ADC3242IRGZR | Texas Instruments | Check for Price | Dual-Channel, 14-Bit, 50-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC3242IRGZT vs ADC3242IRGZR |
| ADC3241IRGZR | Texas Instruments | Check for Price | Dual-Channel, 14-Bit, 25-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85 | ADC3242IRGZT vs ADC3241IRGZR |
ADC3242IRGZT Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the ADC's power pins.
-
To optimize the ADC3242IRGZT's performance, you should consider factors such as the input signal frequency, amplitude, and impedance. You should also adjust the ADC's gain and offset settings, and select the appropriate clock frequency and sampling rate for your application. Additionally, you may need to add external filters or amplifiers to condition the input signal.
-
The ADC3242IRGZT can handle input voltages up to 5.5V without damage. However, the recommended input voltage range is 0V to 4.096V to ensure accurate conversions. Exceeding the maximum input voltage can damage the ADC or affect its performance.
-
The ADC3242IRGZT has a parallel output interface that can be connected to a microcontroller or FPGA. You will need to ensure that the microcontroller or FPGA has a compatible interface and can handle the ADC's output data format. You may also need to add external logic or buffers to interface with the ADC.
-
The ADC3242IRGZT has a typical power consumption of 35mW at 3.3V and 10MHz clock frequency. To reduce power consumption, you can lower the clock frequency, reduce the supply voltage, or use the ADC's power-down mode when not in use. Additionally, you can consider using a lower-power ADC or a different architecture that meets your application's requirements.
