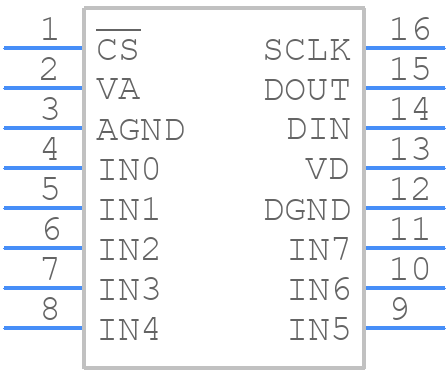

Part Symbol
-

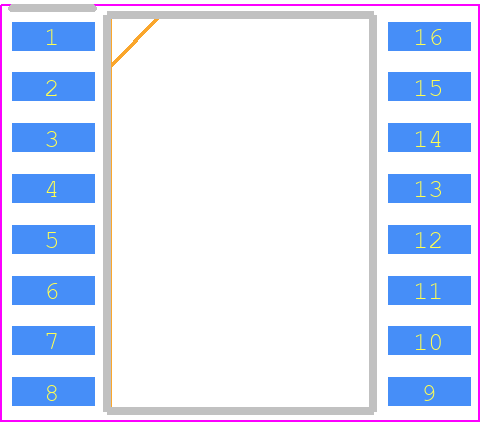

Footprint
-

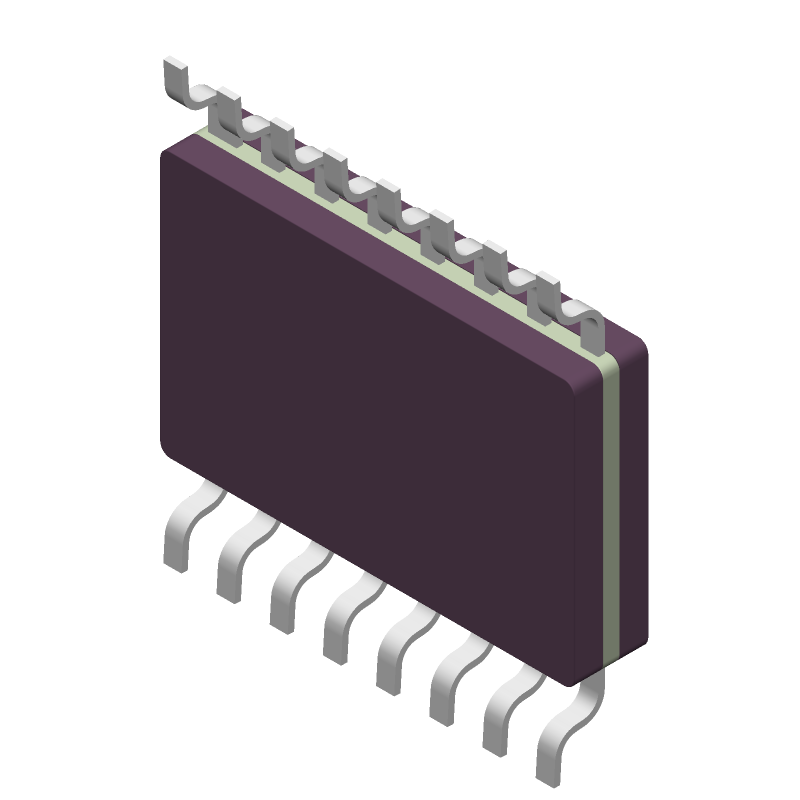

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC128S102WGRQV by Texas Instruments
Results Overview of ADC128S102WGRQV by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADC128S102WGRQV Information
ADC128S102WGRQV by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| ADC128S102WGRQV | Texas Instruments | Radiation hardened 8-channel, 50 kSPS to 1 MSPS, 12-bit A/D converter 16-CFP -55 to 125 |
Price & Stock for ADC128S102WGRQV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Converters | 8428 |
|
RFQ |
Part Details for ADC128S102WGRQV
ADC128S102WGRQV CAD Models
ADC128S102WGRQV Part Data Attributes
|
|
ADC128S102WGRQV
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC128S102WGRQV
Texas Instruments
Radiation-hardened, eight-channel, 50-kSPS to 1-MSPS, 12-bit analog-to-digital converter (ADC) 16-CFP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | CERAMIC, SOIC-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | 9A515.E.1 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 0.8125 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-CDSO-G16 | |
| JESD-609 Code | e0 | |
| Length | 9.906 mm | |
| Linearity Error-Max (EL) | 0.0269% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Qualification Status | Not Qualified | |
| Sample Rate | 1 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Screening Level | MIL-STD-883 | |
| Seated Height-Max | 2.33 mm | |
| Supply Current-Max | 3.1 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Total Dose | 100k Rad(Si) V | |
| Width | 6.35 mm |
Alternate Parts for ADC128S102WGRQV
This table gives cross-reference parts and alternative options found for ADC128S102WGRQV. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC128S102WGRQV, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC128S102WGMPR | Texas Instruments | $674.5314 | Radiation-hardened, eight-channel, 50-kSPS to 1-MSPS, 12-bit analog-to-digital converter (ADC) 16-CFP 25 to 25 | ADC128S102WGRQV vs ADC128S102WGMPR |
ADC128S102WGRQV Frequently Asked Questions (FAQ)
-
The recommended input impedance is 1 kΩ to 10 kΩ to ensure proper signal integrity and to minimize signal attenuation.
-
To ensure accurate conversions, ensure that the input signal is within the specified voltage range, the clock frequency is within the recommended range, and the device is properly calibrated.
-
Clock jitter can affect the ADC's performance by introducing noise and reducing the signal-to-noise ratio (SNR). It is recommended to use a low-jitter clock source to minimize this effect.
-
Yes, the ADC128S102WGRQV can be used in a multiplexed configuration, but it requires additional external circuitry to multiplex the input signals and to ensure proper signal routing.
-
The ADC128S102WGRQV has an internal overvoltage protection circuit, but it is still recommended to use external protection circuitry, such as voltage limiters or clamping diodes, to prevent damage from overvoltage conditions.
