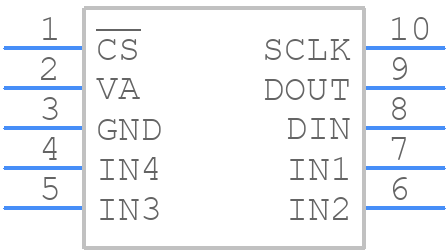

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC124S101CIMMX/NOPB by Texas Instruments
Results Overview of ADC124S101CIMMX/NOPB by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADC124S101CIMMX/NOPB Information
ADC124S101CIMMX/NOPB by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC124S101CIMMX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADC124S101CIMMX/NOPB-ND
|
DigiKey | IC ADC 12BIT SAR 10VSSOP Min Qty: 3500 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.3137 | Buy Now |
|
DISTI #
926-A124S101CIMMXNPB
|
Mouser Electronics | Analog to Digital Converters - ADC 4 Channel 500 ksps to 1 Msps 12-Bit A/ A 926-AD124S101CIMMNPB RoHS: Compliant | 0 |
|
$3.3200 / $7.7700 | Order Now |
Part Details for ADC124S101CIMMX/NOPB
ADC124S101CIMMX/NOPB CAD Models
ADC124S101CIMMX/NOPB Part Data Attributes
|
|
ADC124S101CIMMX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC124S101CIMMX/NOPB
Texas Instruments
4 Channel, 500 ksps to 1 Msps, 12-Bit A/D Converter 10-VSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | VSSOP-10 | |
| Pin Count | 10 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 1.625 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 0.0391% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 1 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 3 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for ADC124S101CIMMX/NOPB
This table gives cross-reference parts and alternative options found for ADC124S101CIMMX/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC124S101CIMMX/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC124S101CIMMX | National Semiconductor Corporation | Check for Price | IC 4-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO10, MSOP-10, Analog to Digital Converter | ADC124S101CIMMX/NOPB vs ADC124S101CIMMX |
| ADC124S101CIMM | Texas Instruments | Check for Price | 4 Channel, 500 ksps to 1 Msps, 12-Bit A/D Converter 10-VSSOP -40 to 85 | ADC124S101CIMMX/NOPB vs ADC124S101CIMM |
| ADC124S101CIMM | National Semiconductor Corporation | Check for Price | IC 4-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO10, MSOP-10, Analog to Digital Converter | ADC124S101CIMMX/NOPB vs ADC124S101CIMM |
ADC124S101CIMMX/NOPB Frequently Asked Questions (FAQ)
-
The recommended input impedance for the ADC124S101 is between 1 kΩ and 10 kΩ to ensure proper operation and minimize signal attenuation.
-
The ADC124S101 has a unipolar analog input voltage range of 0V to VREF. Ensure that the input signal is within this range to avoid saturation and ensure accurate conversions.
-
The REFOUT pin provides a buffered reference voltage output that can be used as a reference for other devices in the system. It is not necessary to use this pin, but it can be useful in certain system designs.
-
To ensure accurate conversions, ensure that the input signal is properly filtered, the reference voltage is stable, and the ADC is operated within its specified temperature range.
-
Yes, the ADC124S101 can be used in a multiplexed configuration. However, ensure that the multiplexer is properly designed and characterized to minimize signal degradation and ensure accurate conversions.
