ADC121C021CIMKX/NOPB Information
ADC121C021CIMKX/NOPB by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC121C021CIMKX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-ADC121C021CIMKX/NOPB-ND
|
DigiKey | IC ADC 12BIT SAR TSOT23-6 Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
4274 In Stock |
|
$1.6700 | Buy Now |
|
DISTI #
296-ADC121C021CIMKX/NOPBCT-ND
|
DigiKey | IC ADC 12BIT SAR TSOT23-6 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.2754 / $2.2200 | Buy Now |
|
DISTI #
926-A121C021CIMKXNPB
|
Mouser Electronics | Analog to Digital Converters - ADC I2C-Compatible 12-B it Analog-to-Digital A 926-AD121C021CIMKNPB RoHS: Compliant | 0 |
|
$1.2300 / $2.2200 | Order Now |
|
DISTI #
86275641
|
Verical | 1-Channel Single ADC SAR 189ksps 12-bit Serial 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 187 Package Multiple: 1 Date Code: 1201 | Americas - 3137 |
|
$1.2456 / $2.0125 | Buy Now |
|
DISTI #
86274793
|
Verical | 1-Channel Single ADC SAR 189ksps 12-bit Serial 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 187 Package Multiple: 1 Date Code: 1401 | Americas - 1137 |
|
$1.2456 / $2.0125 | Buy Now |
|
|
Rochester Electronics | ADC121C021 I2C-Compatible, 12-Bit Analog-to-Digital Converter with Alert Pin RoHS: Compliant Status: Active Min Qty: 1 | 4274 |
|
$0.9965 / $1.6100 | Buy Now |
Part Details for ADC121C021CIMKX/NOPB

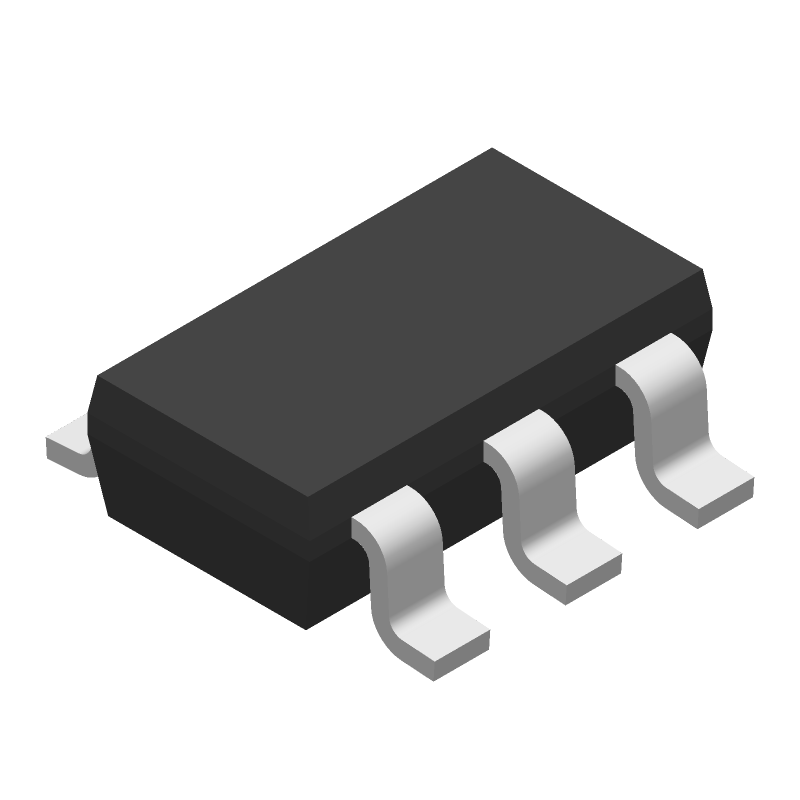

ADC121C021CIMKX/NOPB CAD Models
ADC121C021CIMKX/NOPB Part Data Attributes
|
|
ADC121C021CIMKX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC121C021CIMKX/NOPB
Texas Instruments
I2C-Compatible, 12-Bit Analog-to-Digital Converter with Alert Pin 6-SOT-23-THIN -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT | |
| Package Description | SOT-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 179.856 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.189 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 1.2 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
