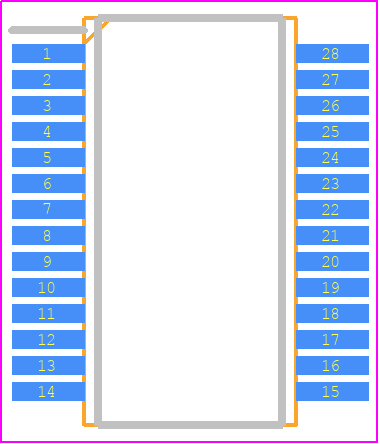

Footprint
-

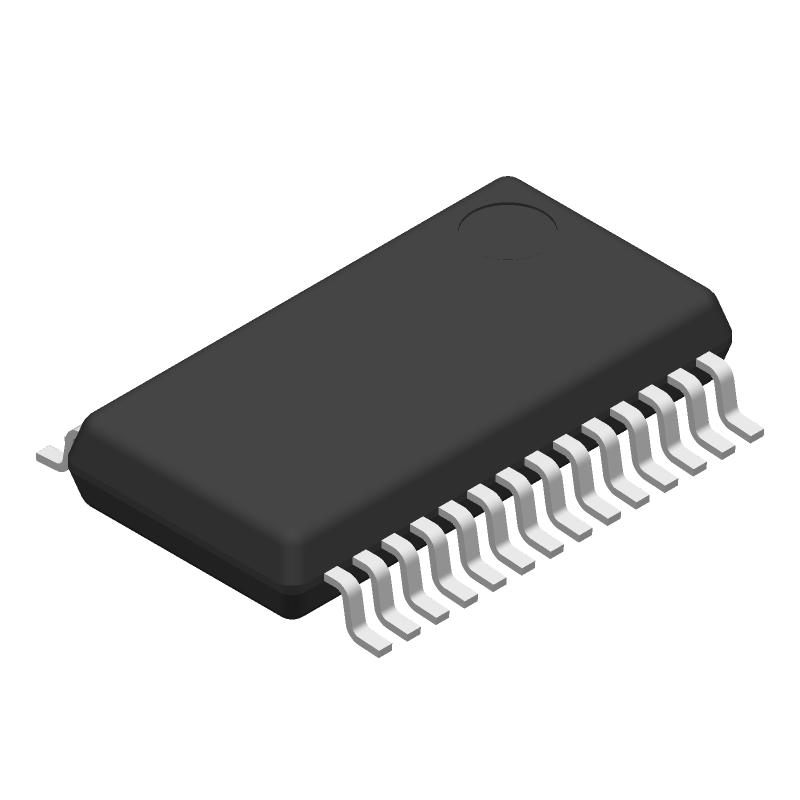

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC12138CIMSAX/NOPB by Texas Instruments
Results Overview of ADC12138CIMSAX/NOPB by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADC12138CIMSAX/NOPB Information
ADC12138CIMSAX/NOPB by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC12138CIMSAX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Converters | 267 |
|
RFQ |
Part Details for ADC12138CIMSAX/NOPB
ADC12138CIMSAX/NOPB CAD Models
ADC12138CIMSAX/NOPB Part Data Attributes
|
|
ADC12138CIMSAX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC12138CIMSAX/NOPB
Texas Instruments
Self-Calibrating 12-Bit Plus Sign Serial I/O A/D Converter with MUX and Sample/Hold 28-SSOP -40 to 85
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | SSOP-28 | |
| Pin Count | 28 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.55 V | |
| Analog Input Voltage-Min | -0.05 V | |
| Conversion Time-Max | 8.8 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 10.2 mm | |
| Linearity Error-Max (EL) | 0.0488% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP28,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for ADC12138CIMSAX/NOPB
This table gives cross-reference parts and alternative options found for ADC12138CIMSAX/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC12138CIMSAX/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC12138CIMSAX | Texas Instruments | Check for Price | 8-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO28, SSOP-28 | ADC12138CIMSAX/NOPB vs ADC12138CIMSAX |
| ADC12138CIMSAX | National Semiconductor Corporation | Check for Price | ADC, Successive Approximation, 12-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO28 | ADC12138CIMSAX/NOPB vs ADC12138CIMSAX |
| ADC12138CIMSA | Texas Instruments | Check for Price | 8-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO28, SSOP-28 | ADC12138CIMSAX/NOPB vs ADC12138CIMSA |
| ADC12138CIMSA/NOPB | Texas Instruments | Check for Price | Self-Calibrating 12-Bit Plus Sign Serial I/O A/D Converter with MUX and Sample/Hold 28-SSOP -40 to 85 | ADC12138CIMSAX/NOPB vs ADC12138CIMSA/NOPB |
ADC12138CIMSAX/NOPB Frequently Asked Questions (FAQ)
-
The recommended input impedance for the ADC12138 is between 1 kΩ and 10 kΩ to ensure proper operation and minimize signal attenuation.
-
To optimize the analog input range, adjust the VREF pin to set the full-scale range of the ADC. The VREF pin can be connected to a voltage reference or a resistive divider network to set the desired input range.
-
The maximum sampling rate of the ADC12138 is 1 MSPS. Increasing the sampling rate will increase power consumption, so it's essential to balance sampling rate with power consumption requirements for your specific application.
-
To ensure accurate conversions, use a low-noise, low-impedance analog input signal, and ensure the analog input signal is properly filtered and buffered. Additionally, use a stable clock source and ensure the ADC is properly calibrated.
-
The CAL pin is used for calibration and offset correction. Connect the CAL pin to a voltage reference or a resistive divider network to set the calibration voltage. During calibration, the ADC12138 will adjust its internal offset to match the calibration voltage.
