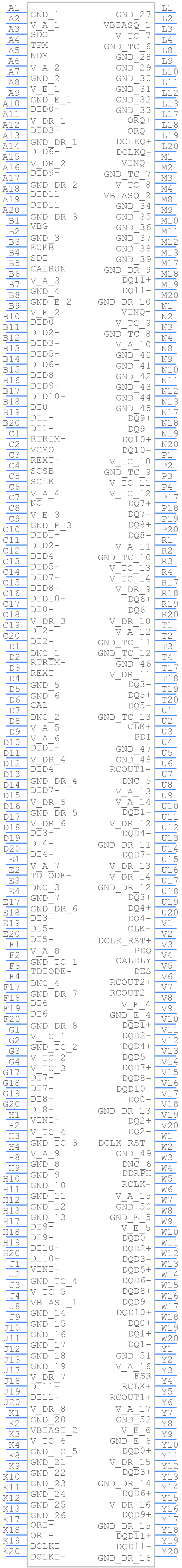

Part Symbol
-

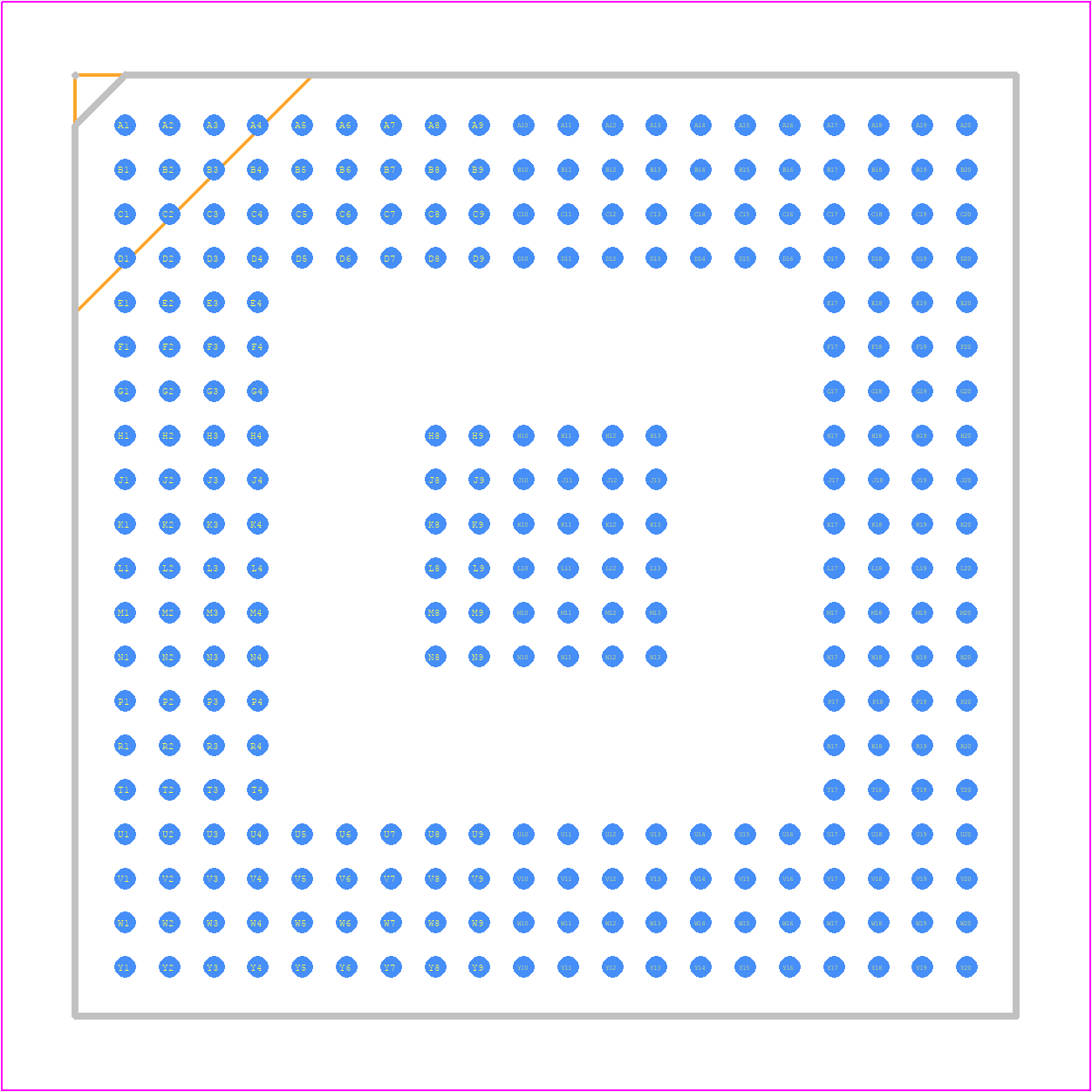

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC10D1000CIUT/NOPB by Texas Instruments
Results Overview of ADC10D1000CIUT/NOPB by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADC10D1000CIUT/NOPB Information
ADC10D1000CIUT/NOPB by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DS96174CN/NOPB | Rochester Electronics LLC | DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16 | |
| LM611IM/NOPB | Rochester Electronics LLC | LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar |
Price & Stock for ADC10D1000CIUT/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-43538-ND
|
DigiKey | IC ADC 10BIT FOLD INTERP 292BGA Min Qty: 1 Lead time: 18 Weeks Container: Tray | Temporarily Out of Stock |
|
$1,690.8300 | Buy Now |
|
DISTI #
926-AD10D1000CIUTNPB
|
Mouser Electronics | Analog to Digital Converters - ADC 10-Bit Dual 1.0-GSP S or Single 2.0-GSPS RoHS: Compliant | 0 |
|
$1,578.1700 | Order Now |
|
DISTI #
85964155
|
Verical | 2-Channel Dual ADC Folding/Interpolating 2Gsps 10-bit Parallel/LVDS 292-Pin BGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1601 | Americas - 20 |
|
$1,610.8000 | Buy Now |
|
|
Rochester Electronics | ADC10D1000 10-Bit, Dual 1.0-GSPS or Single 2.0-GSPS Analog-to-Digital Converter (ADC) RoHS: Compliant Status: Active Min Qty: 1 | 20 |
|
$1,134.0000 / $1,288.6400 | Buy Now |
|
|
Win Source Electronics | Low Power, 10-Bit, Dual 1.0/1.5 GSPS or Single 2.0/3.0 GSPS ADC | IC ADC 10BIT FOLD INTERP 292BGA | 630 |
|
$577.5000 | Buy Now |
Part Details for ADC10D1000CIUT/NOPB
ADC10D1000CIUT/NOPB CAD Models
ADC10D1000CIUT/NOPB Part Data Attributes
|
|
ADC10D1000CIUT/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC10D1000CIUT/NOPB
Texas Instruments
10-Bit, Dual 1.0-GSPS or Single 2.0-GSPS Analog-to-Digital Converter (ADC) 292-BGA -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | 27 X 27 MM, 2.40 MM HEIGHT, 1.27 MM PITCH, LEAD FREE, MS-034BAL-2, BGA-292 | |
| Pin Count | 292 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.C.1 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | Peak-to-peak input voltage range(V) : 0.8 | |
| Analog Input Voltage-Max | 0.8 V | |
| Analog Input Voltage-Min | -0.8 V | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | S-PBGA-B292 | |
| JESD-609 Code | e2 | |
| Length | 27 mm | |
| Linearity Error-Max (EL) | 0.1367% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 292 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Equivalence Code | BGA292,20X20,50 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 250 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 2000 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 2.58 mm | |
| Supply Current-Max | 985 mA | |
| Supply Voltage-Nom | 1.9 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver (Sn/Ag) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 27 mm |
Alternate Parts for ADC10D1000CIUT/NOPB
This table gives cross-reference parts and alternative options found for ADC10D1000CIUT/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC10D1000CIUT/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC10D1000CIUT | Texas Instruments | Check for Price | 10-Bit, Dual 1.0-GSPS or Single 2.0-GSPS Analog-to-Digital Converter (ADC) 292-BGA -40 to 85 | ADC10D1000CIUT/NOPB vs ADC10D1000CIUT |
