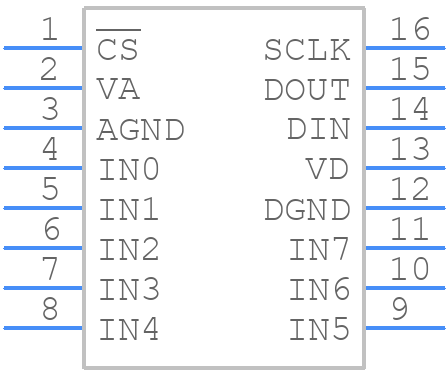

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC108S052CIMTX/NOPB by Texas Instruments
Results Overview of ADC108S052CIMTX/NOPB by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADC108S052CIMTX/NOPB Information
ADC108S052CIMTX/NOPB by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC108S052CIMTX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADC108S052CIMTX/NOPB-ND
|
DigiKey | IC ADC 10BIT SAR 16TSSOP Min Qty: 2500 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.8323 | Buy Now |
|
DISTI #
926-A108S052CIMTXNPB
|
Mouser Electronics | Analog to Digital Converters - ADC 8-Channel 200 ksps to 500 ksps 10-Bit A 926-AD108S052CIMTNPB RoHS: Compliant | 0 |
|
$2.7400 | Order Now |
Part Details for ADC108S052CIMTX/NOPB
ADC108S052CIMTX/NOPB CAD Models
ADC108S052CIMTX/NOPB Part Data Attributes
|
|
ADC108S052CIMTX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC108S052CIMTX/NOPB
Texas Instruments
8-Channel, 200 ksps to 500 ksps, 10-Bit A/D Converter 16-TSSOP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP, TSSOP16,.25 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 4.0625 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0391% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.5 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 2.4 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for ADC108S052CIMTX/NOPB
This table gives cross-reference parts and alternative options found for ADC108S052CIMTX/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC108S052CIMTX/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC108S052CIMT/NOPB | Texas Instruments | $4.8156 | 8-Channel, 200 ksps to 500 ksps, 10-Bit A/D Converter 16-TSSOP -40 to 105 | ADC108S052CIMTX/NOPB vs ADC108S052CIMT/NOPB |
| ADC108S052CIMT | Texas Instruments | Check for Price | IC 8-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO16, TSSOP-16, Analog to Digital Converter | ADC108S052CIMTX/NOPB vs ADC108S052CIMT |
| ADC108S052CIMTX | National Semiconductor Corporation | Check for Price | IC 8-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO16, TSSOP-16, Analog to Digital Converter | ADC108S052CIMTX/NOPB vs ADC108S052CIMTX |
ADC108S052CIMTX/NOPB Frequently Asked Questions (FAQ)
-
Texas Instruments provides a layout and routing guide in the application note SLAA523, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
-
The ADC108S052CIMTX/NOPB has a built-in calibration feature that can be used to improve accuracy. The calibration process involves writing specific values to the device's registers to adjust the offset and gain. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
-
The maximum sampling rate of the ADC108S052CIMTX/NOPB is 500 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the device's power consumption, and the noise present in the system.
-
The ADC108S052CIMTX/NOPB has a serial interface that can be connected to a microcontroller or FPGA using a SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit) bus. Texas Instruments provides example code and interface diagrams in the device's datasheet and application notes.
-
The power consumption of the ADC108S052CIMTX/NOPB depends on the operating frequency, voltage supply, and mode of operation. The device has a typical power consumption of 12.5 mW at 500 kSPS. To reduce power consumption, the device can be operated at a lower frequency, or in a low-power mode. Additionally, the power consumption can be reduced by using a lower voltage supply or by turning off the device when not in use.
