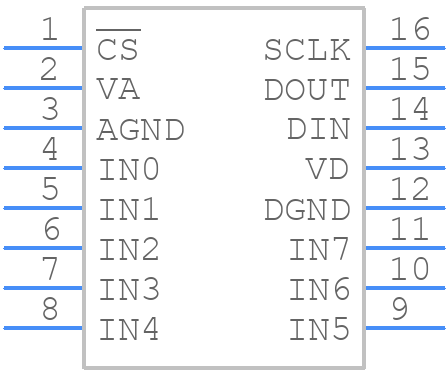

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC108S052CIMT/NOPB by Texas Instruments
Results Overview of ADC108S052CIMT/NOPB by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADC108S052CIMT/NOPB Information
ADC108S052CIMT/NOPB by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC108S052CIMT/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH1767
|
Newark | 10Bit Adc, 8Ch, Powerwise, Tssop16, Resolution (Bits):10Bit, Sampling Rate:500Ksps, Input Channel Type:Single Ended, Data Interface:Microwire, Qspi, Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:2.7V, Supply Voltage Rohs Compliant: Yes |Texas Instruments ADC108S052CIMT/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$5.6000 / $7.3500 | Buy Now |
|
DISTI #
926-AD108S052CIMTNPB
|
Mouser Electronics | Analog to Digital Converters - ADC 8CH 200kSPS-500kSPS 10B ADC A 926-A108S052CIMTXNPB RoHS: Compliant | 267 |
|
$3.4100 / $6.0000 | Buy Now |
Part Details for ADC108S052CIMT/NOPB
ADC108S052CIMT/NOPB CAD Models
ADC108S052CIMT/NOPB Part Data Attributes
|
|
ADC108S052CIMT/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC108S052CIMT/NOPB
Texas Instruments
8-Channel, 200 ksps to 500 ksps, 10-Bit A/D Converter 16-TSSOP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 4.0625 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0391% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.5 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 2.4 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for ADC108S052CIMT/NOPB
This table gives cross-reference parts and alternative options found for ADC108S052CIMT/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC108S052CIMT/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC108S052CIMT | Texas Instruments | Check for Price | IC 8-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO16, TSSOP-16, Analog to Digital Converter | ADC108S052CIMT/NOPB vs ADC108S052CIMT |
| ADC108S052CIMT/NOPB | National Semiconductor Corporation | Check for Price | A/D Converter, 10-Bit, 8 Channel, CMOS, PDSO16 | ADC108S052CIMT/NOPB vs ADC108S052CIMT/NOPB |
| ADC108S052CIMTX | National Semiconductor Corporation | Check for Price | IC 8-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO16, TSSOP-16, Analog to Digital Converter | ADC108S052CIMT/NOPB vs ADC108S052CIMTX |
ADC108S052CIMT/NOPB Frequently Asked Questions (FAQ)
-
The recommended input impedance for the ADC108S052 is 1 kΩ to 10 kΩ. This ensures proper signal attenuation and prevents signal reflections.
-
To optimize the analog input range, consider the maximum and minimum input voltages of your signal. The ADC108S052 has a maximum input range of 0 to VREF (2.5V or 5V). Adjust the input signal amplitude and offset to fit within this range for optimal performance.
-
Clock jitter can affect the ADC108S052's performance by introducing noise and reducing the signal-to-noise ratio (SNR). To minimize the impact of clock jitter, use a high-quality clock source with low jitter (<100 ps) and ensure the clock signal is properly terminated.
-
Metastability can occur when the ADC108S052's output is not properly synchronized with the clock. To handle metastability, use a synchronizer or a metastable-resistant flip-flop to resynchronize the output data with the clock.
-
For optimal performance, keep the analog and digital signal traces separate, use a solid ground plane, and minimize signal crosstalk. Keep the ADC108S052's analog input pins away from digital signal lines and ensure proper decoupling capacitors are used.
