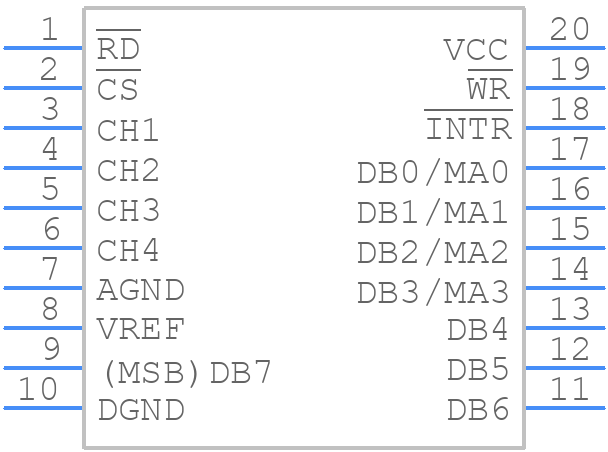

Part Symbol
-

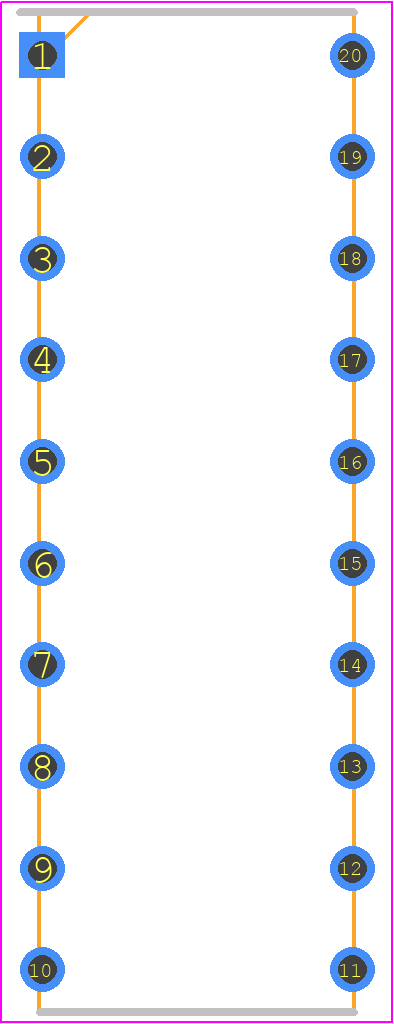

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC0844CCJ by Texas Instruments
Results Overview of ADC0844CCJ by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Telecommunications
Automotive
Robotics and Drones
ADC0844CCJ Information
ADC0844CCJ by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC0844CCJ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 506 |
|
RFQ |
Part Details for ADC0844CCJ
ADC0844CCJ CAD Models
ADC0844CCJ Part Data Attributes
|
|
ADC0844CCJ
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC0844CCJ
Texas Instruments
4-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP20, CERAMIC, DIP-20
|
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | CERAMIC, DIP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Conversion Time-Max | 40 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-CDIP-T20 | |
| Length | 25.019 mm | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | PARALLEL, 8 BITS | |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED | |
| Package Code | DIP | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for ADC0844CCJ
This table gives cross-reference parts and alternative options found for ADC0844CCJ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC0844CCJ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC0844CCJ/NOPB | Texas Instruments | Check for Price | 4-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP20, 0.300 INCH, CERAMIC, DIP-20 | ADC0844CCJ vs ADC0844CCJ/NOPB |
| ADC0844CCN/NOPB | National Semiconductor Corporation | Check for Price | IC 4-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDIP24, 0.300 INCH, PLASTIC, DIP-20, Analog to Digital Converter | ADC0844CCJ vs ADC0844CCN/NOPB |
| ADC0844CCJ | National Semiconductor Corporation | Check for Price | ADC, Successive Approximation, 8-Bit, 1 Func, 4 Channel, Parallel, 8 Bits Access, CMOS, CDIP20 | ADC0844CCJ vs ADC0844CCJ |
ADC0844CCJ Frequently Asked Questions (FAQ)
-
The recommended input impedance for the ADC0844CCJ is 1 kΩ to 10 kΩ. This ensures proper signal attenuation and prevents signal reflections.
-
The clock signal for the ADC0844CCJ should be a clean, low-jitter signal with a frequency between 1 MHz and 20 MHz. A clock signal with a 50% duty cycle is recommended.
-
The maximum sampling rate of the ADC0844CCJ is 200 kHz. However, the actual sampling rate may be limited by the clock frequency and the conversion time.
-
The ADC0844CCJ outputs data in a serial format, with the most significant bit (MSB) first. The output data is 8 bits wide, and the format can be either straight binary or two's complement.
-
The power consumption of the ADC0844CCJ depends on the operating frequency and the supply voltage. Typically, the power consumption is around 15 mW at 5 V and 1 MHz clock frequency.
