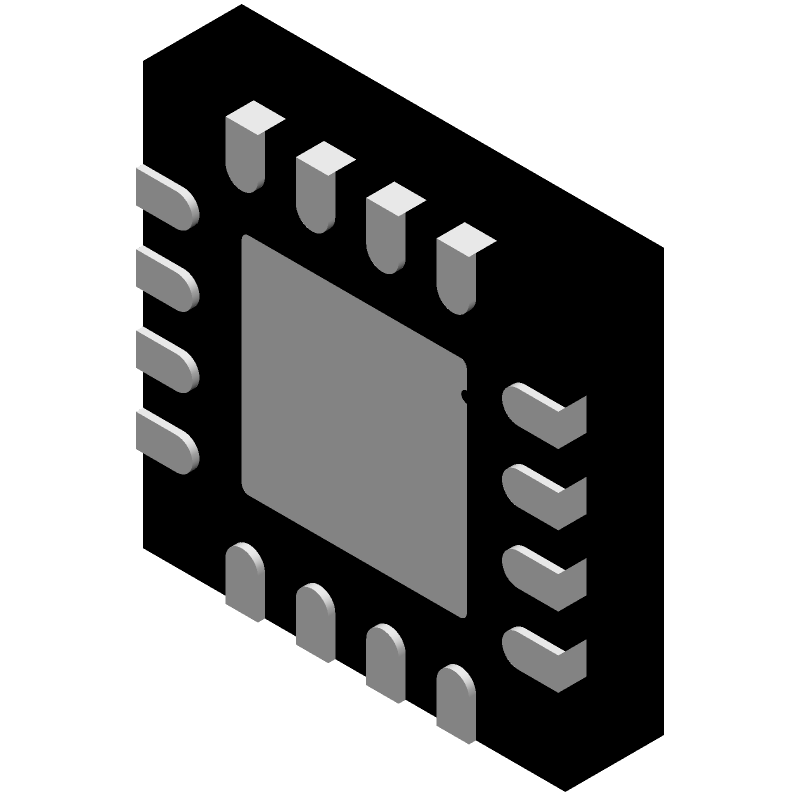

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4960-1ACPZ-R7 by Analog Devices Inc
Results Overview of ADA4960-1ACPZ-R7 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
ADA4960-1ACPZ-R7 Information
ADA4960-1ACPZ-R7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4960-1ACPZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADA4960-1ACPZ-R7CT-ND
|
DigiKey | IC ADC DRIVER 16LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1091 In Stock |
|
$10.7625 / $19.0600 | Buy Now |
|
DISTI #
584-ADA4960-1ACPZ-R7
|
Mouser Electronics | Differential Amplifiers 5GHz Low Distortion ADC Driver/Line Driv RoHS: Compliant | 495 |
|
$10.7600 / $17.5500 | Buy Now |
|
DISTI #
V72:2272_06218206
|
Arrow Electronics | SP Amp DIFF AMP Single 5.25V 16-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2022 Container: Cut Strips | Americas - 351 |
|
$11.0410 / $11.5310 | Buy Now |
|
|
Analog Devices Inc | 5GHz Low Distortion ADC Driver Min Qty: 1 Package Multiple: 1500 | 4719 |
|
$8.1900 / $19.0600 | Buy Now |
|
DISTI #
26617640
|
Verical | SP Amp DIFF AMP Single 5.25V 16-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 4500 |
|
$10.6494 | Buy Now |
|
DISTI #
51055242
|
Verical | SP Amp DIFF AMP Single 5.25V 16-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2022 | Americas - 351 |
|
$11.0410 / $11.8700 | Buy Now |
|
|
Rochester Electronics | ADA4960 - 5 GHz, Low Distortion ADC DriveR RoHS: Compliant Status: Active Min Qty: 1 | 1 |
|
$9.0600 / $11.3300 | Buy Now |
Part Details for ADA4960-1ACPZ-R7
ADA4960-1ACPZ-R7 CAD Models
ADA4960-1ACPZ-R7 Part Data Attributes
|
|
ADA4960-1ACPZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4960-1ACPZ-R7
Analog Devices Inc
5 GHz, Low Distortion ADC Driver/Line Driver
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SON | |
| Package Description | LFCSP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | CP-16-22 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Common-mode Reject Ratio-Nom | 60 dB | |
| Frequency Compensation | YES | |
| JESD-30 Code | S-XQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC16,.12SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Seated Height-Max | 0.8 mm | |
| Slew Rate-Nom | 6600 V/us | |
| Supply Current-Max | 64 mA | |
| Supply Voltage Limit-Max | 5.25 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Wideband | NO | |
| Width | 3 mm |
ADA4960-1ACPZ-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADA4960-1ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To optimize the ADA4960-1ACPZ-R7's performance for a specific application, consider the specific requirements of the application, such as frequency response, noise tolerance, and power consumption. Adjust the gain, bandwidth, and filtering accordingly. Additionally, consider using external components, such as capacitors or resistors, to fine-tune the performance.
-
The ADA4960-1ACPZ-R7 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device. Additionally, consider the thermal resistance of the package and the PCB, and ensure that the device is operated within the recommended temperature range.
-
To troubleshoot common issues with the ADA4960-1ACPZ-R7, start by checking the power supply, ground connections, and signal routing. Use an oscilloscope to visualize the signals and identify any anomalies. Check for noise sources, such as electromagnetic interference or radio-frequency interference, and ensure that the device is properly decoupled. Consult the datasheet and application notes for specific troubleshooting guidelines.
-
The ADA4960-1ACPZ-R7 has built-in ESD protection, but it's still important to take precautions to prevent electrostatic discharge. Use an anti-static wrist strap or mat when handling the device, and ensure that the PCB and components are properly grounded. Additionally, consider using external ESD protection devices, such as TVS diodes or ESD arrays, to provide additional protection.
