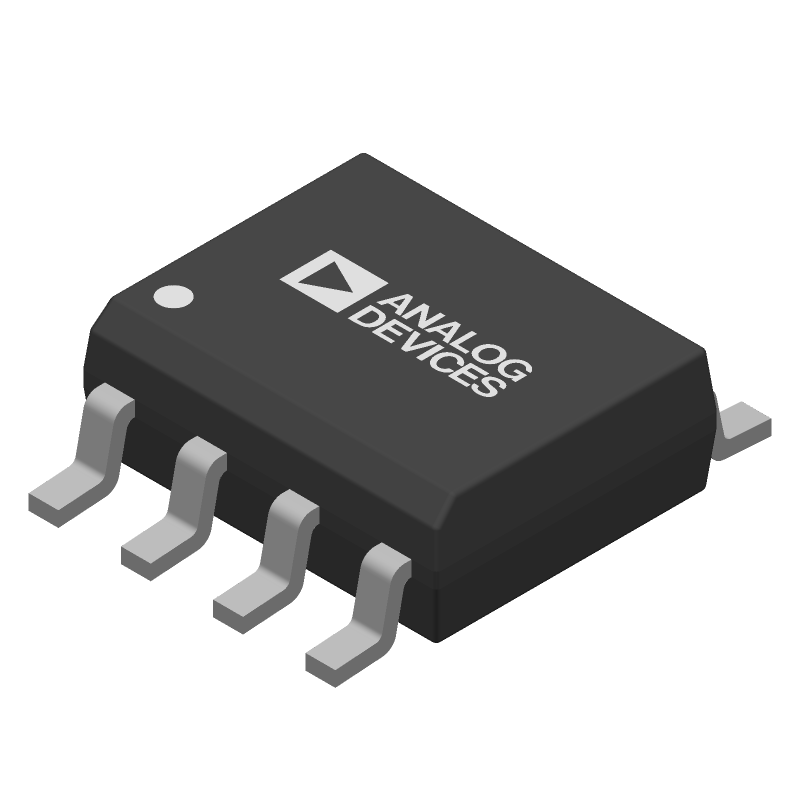

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4898-2YRDZ-RL by Analog Devices Inc
Results Overview of ADA4898-2YRDZ-RL by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
ADA4898-2YRDZ-RL Information
ADA4898-2YRDZ-RL by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4898-2YRDZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Amplifiers | 173 |
|
RFQ |
Part Details for ADA4898-2YRDZ-RL
ADA4898-2YRDZ-RL CAD Models
ADA4898-2YRDZ-RL Part Data Attributes
|
|
ADA4898-2YRDZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4898-2YRDZ-RL
Analog Devices Inc
High Voltage, Low Noise, Low Distortion, Unity Gain Stable, High Speed, Dual 8-Lead Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | HSOP, SOP8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RD-8-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Bias Current-Max (IIB) @25C | 0.5 µA | |
| Common-mode Reject Ratio-Nom | 120 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 160 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Packing Method | TR | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 50 V/us | |
| Supply Current-Max | 17.4 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Voltage Gain-Min | 22380 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for ADA4898-2YRDZ-RL
This table gives cross-reference parts and alternative options found for ADA4898-2YRDZ-RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4898-2YRDZ-RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADA4898-2YRDZ | Analog Devices Inc | $6.4017 | High Voltage, Low Noise, Low Distortion, Unity Gain Stable, High Speed, Dual 8-Lead Op Amp | ADA4898-2YRDZ-RL vs ADA4898-2YRDZ |
| ADA4898-2YRDZ-R7 | Analog Devices Inc | $6.5684 | High Voltage, Low Noise, Low Distortion, Unity Gain Stable, High Speed, Dual 8-Lead Op Amp | ADA4898-2YRDZ-RL vs ADA4898-2YRDZ-R7 |
ADA4898-2YRDZ-RL Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADA4898-2 involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supplies with capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
-
The gain resistors for the ADA4898-2 should be chosen based on the desired gain and bandwidth. A good starting point is to use 1% or 0.1% tolerance resistors with a value between 1 kΩ and 10 kΩ. The datasheet provides a gain resistor selection table to help with this process.
-
The maximum power dissipation for the ADA4898-2 is 1.3 W, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance of the package (125°C/W). The actual power dissipation will depend on the operating conditions and the thermal design of the system.
-
Yes, the ADA4898-2 can be used as a single-ended amplifier by tying the negative input to ground and using the positive input as the signal input. However, this will reduce the common-mode rejection ratio (CMRR) and the power supply rejection ratio (PSRR) of the amplifier.
-
To protect the ADA4898-2 from EMI, use a shielded enclosure, keep the input and output traces short and away from each other, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, use a low-pass filter or a shielded cable to connect the input signal to the amplifier.
