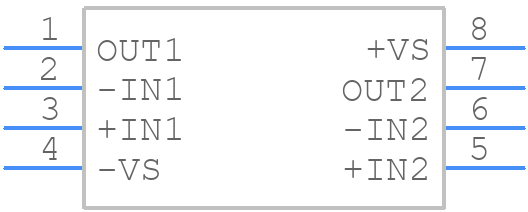

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4896-2ARMZ-RL by Analog Devices Inc
Results Overview of ADA4896-2ARMZ-RL by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADA4896-2ARMZ-RL Information
ADA4896-2ARMZ-RL by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4896-2ARMZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADA4896-2ARMZ-RL-ND
|
DigiKey | IC VOLTAGE FEEDBACK 2 CIRC 8MSOP Min Qty: 3000 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$5.2000 | Buy Now |
|
DISTI #
584-ADA4896-2ARMZ-RL
|
Mouser Electronics | High Speed Operational Amplifiers Low Noise Low Power R/R Op Amp Dual RoHS: Compliant | 0 |
|
$5.2000 | Order Now |
|
|
Analog Devices Inc | Low Noise Low Power R/R Op Amp Min Qty: 3000 Package Multiple: 3000 | 6000 |
|
$3.7800 / $10.9900 | Buy Now |
|
DISTI #
69729912
|
Verical | Op Amp Dual Low Power Amplifier R-R O/P ±5V/10V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 3000 |
|
$5.2327 | Buy Now |
|
|
Vyrian | Amplifiers | 4150 |
|
RFQ | |
|
|
Win Source Electronics | IC VOLTAGE FEEDBACK 2 CIRC 8MSOP / Voltage Feedback Amplifier 2 Circuit Rail-to-Rail 8-MSOP | 5850 |
|
$8.8398 / $13.2596 | Buy Now |
Part Details for ADA4896-2ARMZ-RL
ADA4896-2ARMZ-RL CAD Models
ADA4896-2ARMZ-RL Part Data Attributes
|
|
ADA4896-2ARMZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4896-2ARMZ-RL
Analog Devices Inc
1 nV/√Hz, Low Power, Rail-to-Rail Output Amplifiers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | ROHS COMPLIANT, MO-187AA, MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 4 µA | |
| Bias Current-Max (IIB) @25C | 4 µA | |
| Common-mode Reject Ratio-Nom | 120 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 500 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -5.5 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Slew Rate-Nom | 120 V/us | |
| Supply Current-Max | 6.4 mA | |
| Supply Voltage Limit-Max | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 230000 | |
| Voltage Gain-Min | 56200 | |
| Wideband | YES | |
| Width | 3 mm |
ADA4896-2ARMZ-RL Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADA4896-2 involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supplies with capacitors. A 4-layer board with a dedicated analog ground plane is recommended.
-
The gain resistors should be chosen based on the desired gain and bandwidth. A good starting point is to use 1% or 0.1% resistors with a value between 1 kΩ and 10 kΩ. The ADA4896-2 datasheet provides a gain resistor selection table to help with this.
-
The maximum power dissipation of the ADA4896-2 is 1.3 W per amplifier, assuming a 5 V supply and a 150°C junction temperature. However, this can be limited by the package thermal resistance and the PCB thermal design.
-
Yes, the ADA4896-2 can be used as a single-ended amplifier by tying the negative input to ground or a fixed voltage. However, this will reduce the common-mode rejection ratio (CMRR) and the power supply rejection ratio (PSRR).
-
Noise and oscillations can be filtered out using a combination of capacitors, resistors, and ferrite beads. A good starting point is to add a 10 nF to 100 nF capacitor between the power supply pins and ground, and a 10 Ω to 100 Ω resistor in series with the input signal.
