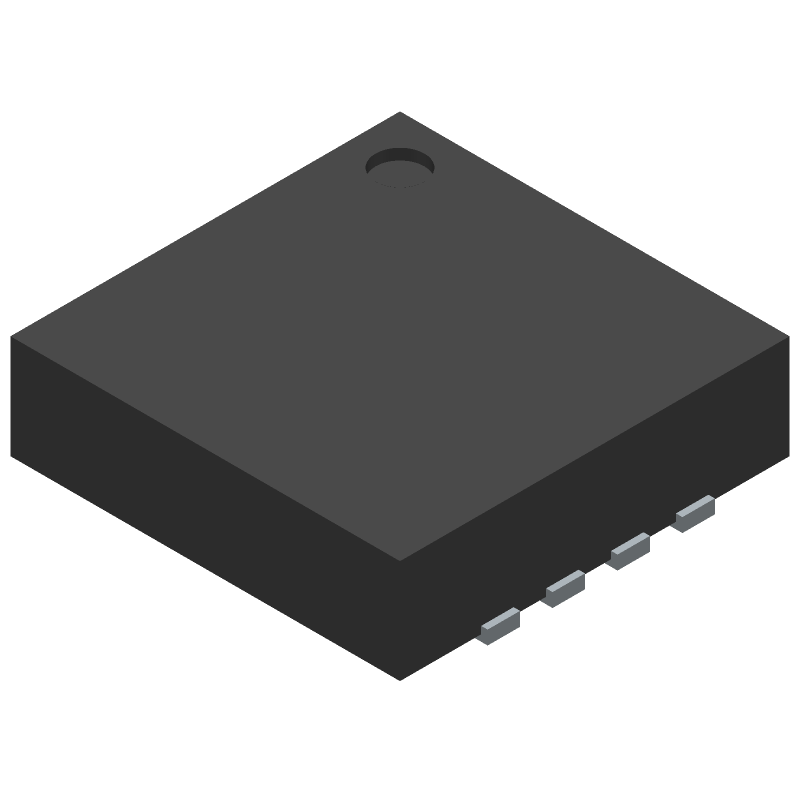

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADA4661-2ACPZ-R7 by Analog Devices Inc
Results Overview of ADA4661-2ACPZ-R7 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADA4661-2ACPZ-R7 Information
ADA4661-2ACPZ-R7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4661-2ACPZ-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62AK1324
|
Newark | Op-Amp, 4Mhz, -40 To 125Deg C, Lfcsp-8 Rohs Compliant: Yes |Analog Devices ADA4661-2ACPZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1512 |
|
$2.0600 / $3.8500 | Buy Now |
|
DISTI #
505-ADA4661-2ACPZ-R7CT-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.9125 / $5.2700 | Buy Now |
|
DISTI #
584-ADA4661-2ACPZ-R7
|
Mouser Electronics | Precision Amplifiers 18V LowPower RRIO Precision CmosAmp RoHS: Compliant | 899 |
|
$1.9600 / $3.8500 | Buy Now |
|
DISTI #
A01:0375_05259996
|
Arrow Electronics | Op Amp Dual Precision Amplifier R-R I/O ±9V/18V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 13 Weeks Date Code: 2507 | Asia - 1500 |
|
$1.8870 / $1.9080 | Buy Now |
|
|
Analog Devices Inc | 18V LowPower RRIO Precision Cm Min Qty: 1500 Package Multiple: 1500 | 0 |
|
$1.4600 / $5.2700 | Buy Now |
|
DISTI #
87857900
|
Verical | Op Amp Dual Precision Amplifier R-R I/O ±9V/18V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | Americas - 1500 |
|
$1.8870 / $1.9080 | Buy Now |
|
|
Bristol Electronics | 167 |
|
RFQ | ||
|
DISTI #
ADA4661-2ACPZR7
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 1500 | 0 |
|
$2.0000 | Buy Now |
|
|
Win Source Electronics | IC OPAMP GP 4MHZ RRO 8LFCSP | 30000 |
|
$1.7903 / $2.6854 | Buy Now |
Part Details for ADA4661-2ACPZ-R7
ADA4661-2ACPZ-R7 CAD Models
ADA4661-2ACPZ-R7 Part Data Attributes
|
|
ADA4661-2ACPZ-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4661-2ACPZ-R7
Analog Devices Inc
18 V, Precision, 725 µA, 4 MHz CMOS RRIO Operational Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 3 X 3 MM, ROHS COMPLIANT, MO-229WEED, LFCSP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CP-8-11 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.00075 µA | |
| Common-mode Reject Ratio-Nom | 114 dB | |
| Input Offset Voltage-Max | 600 µV | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.85 mm | |
| Slew Rate-Nom | 1.8 V/us | |
| Supply Voltage Limit-Max | 20.5 V | |
| Supply Voltage-Nom (Vsup) | 10 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 4000 | |
| Width | 3 mm |
Alternate Parts for ADA4661-2ACPZ-R7
This table gives cross-reference parts and alternative options found for ADA4661-2ACPZ-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4661-2ACPZ-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLV9152IPWR | Texas Instruments | $0.6765 | Dual, 16-V, 4.5-MHz, low-power operational amplifier 8-TSSOP -40 to 125 | ADA4661-2ACPZ-R7 vs TLV9152IPWR |
| TLV9152IDR | Texas Instruments | $0.6765 | Dual, 16-V, 4.5-MHz, low-power operational amplifier 8-SOIC -40 to 125 | ADA4661-2ACPZ-R7 vs TLV9152IDR |
| ADA4661-2ARMZ | Analog Devices Inc | $2.2023 | 18 V, Precision, 725 µA, 4 MHz CMOS RRIO Operational Amplifier | ADA4661-2ACPZ-R7 vs ADA4661-2ARMZ |
| ADA4661-2ACPZ-RL | Analog Devices Inc | Check for Price | 18 V, Precision, 725 µA, 4 MHz CMOS RRIO Operational Amplifier | ADA4661-2ACPZ-R7 vs ADA4661-2ACPZ-RL |
| TLV9152IDSGR | Texas Instruments | Check for Price | Dual, 16-V, 4.5-MHz, low-power operational amplifier 8-WSON -40 to 125 | ADA4661-2ACPZ-R7 vs TLV9152IDSGR |
| TLV9152IDGKR | Texas Instruments | Check for Price | Dual, 16-V, 4.5-MHz, low-power operational amplifier 8-VSSOP -40 to 125 | ADA4661-2ACPZ-R7 vs TLV9152IDGKR |
| TLV9152QDRQ1 | Texas Instruments | Check for Price | Automotive, dual, 16-V 4.5-MHz low-power operational amplifier 8-SOIC -40 to 125 | ADA4661-2ACPZ-R7 vs TLV9152QDRQ1 |
| OP279GRU-REEL | Analog Devices Inc | Check for Price | IC DUAL OP-AMP, 4000 uV OFFSET-MAX, 5 MHz BAND WIDTH, PDSO8, TSSOP-8, Operational Amplifier | ADA4661-2ACPZ-R7 vs OP279GRU-REEL |
| PTLV9152IDR | Texas Instruments | Check for Price | Dual 4.5MHz, 16-V rail-to-rail input/output, low-offset voltage, low-noise op amp 8-SOIC -40 to 125 | ADA4661-2ACPZ-R7 vs PTLV9152IDR |
| TLV9152QDGKRQ1 | Texas Instruments | Check for Price | Automotive, dual, 16-V 4.5-MHz low-power operational amplifier 8-VSSOP -40 to 125 | ADA4661-2ACPZ-R7 vs TLV9152QDGKRQ1 |
